Carriages for the LFS-8-3 rails

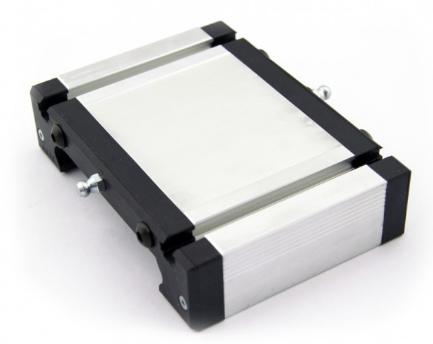

  • WS 3 Bearing Carriage

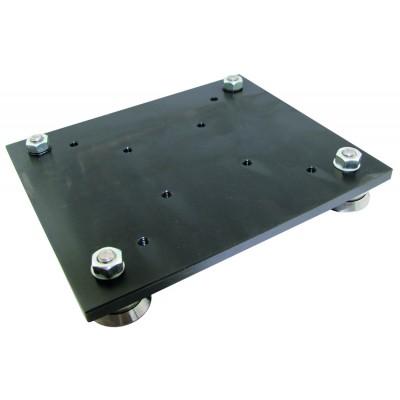

  • LW 7 Roller Carriage
  • WS 3 Bearing Carriage

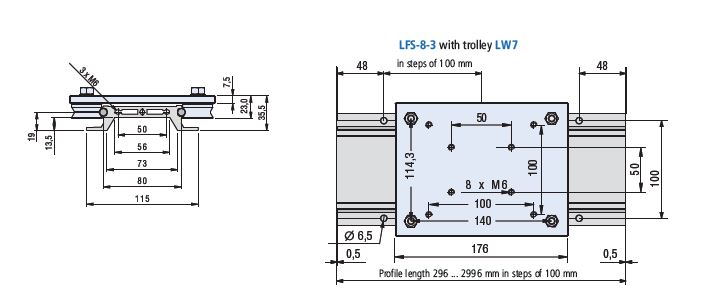

  • LFS 8-3 with Trolley LW 7
  • Force Moment Diagram
  • WS3/7 Bearing Carriage
  • WS3/70 Bearing Carriage (Stainless)
Click image to enlarge


LFS 8-3 Linear Rail and Bearings Specifications

Linear Bearing WS 3/70   Linear Bearing WS 3   Roller Bearing LW 7
C0 3141 N   C0  6945 N   C0 2160 N
C 1879 N   C 3190 N   C 4000 N
F1 static 2682 N   F1 static 5931 N   F1 static 4320 N
F1 dynamic 1604 N   F1 dynamic 2724 N   F1 dynamic 3792 N
F2 static 3141 N   F2 static 6945 N   F2 static 2160 N
F2 dynamic 1879 N   F2 dynamic 3190 N   F2 dynamic 4000 N
Mx static 115.7 Nm   Mx static 255.9 Nm   Mx static 246.8 Nm
My static 105.3 Nm   My static 232.8 Nm   My static 302.4 Nm
Mz static 123.3 Nm   Mz static 272.5 Nm   Mz static 151.2 Nm
Mx dynamic 69.2 Nm   Mx dynamic 117.5 Nm   Mx dynamic 216.7 Nm
My dynamic 62.9 Nm   My dynamic 106.9 Nm   My dynamic 265.4 Nm
Mz dynamic 73.7 Nm   Mz dynamic 125.1 Nm   Mz dynamic 280 Nm
