PP Panel Stiffening Aluminum Profiles

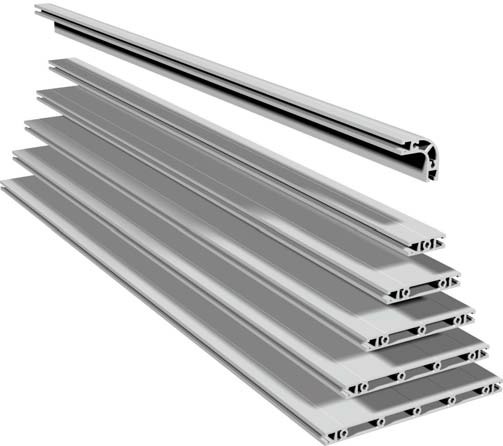

  • PP Aluminum Profiles Panels

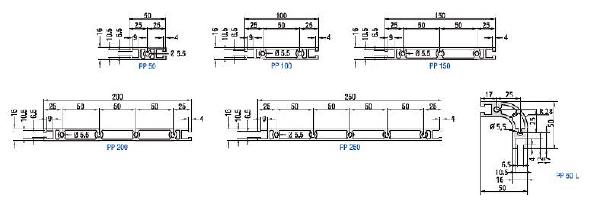

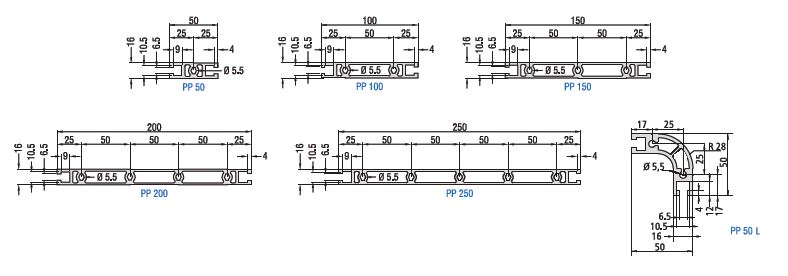

  • PP Aluminum Profiles Panels Drawing
Click image to enlarge
  • For fast and easy construction of  frames, benches, worktables, and racks.
  • Suitable for high loads
  • These extrusions are designed to provide STIFFNESS for large structures
    • when used as horizontal stiffening beams with the structural extrusions, extremely rigid frames can be designed
  • The T slots take a variety of T nuts and other accessories
  • The clear anodized finish provides good looks and protection.
  • Available in 3m lengths or cut to 250mm increments as standard
  • Custom lengths available for a small cut charge
  • NOTE: The 5.5mm holes can be tapped for M6 threads without drilling
  • These extrusions use the T nuts for Structural Profile
PP Panel Stiffening Aluminum Profile Example
PP Panel Stiffening Profile Example
Dimensions of PP Panel Stiffening Aluminum Profiles
PP Panel Stiffening Extrusion Profile Dimensions
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Tope edge particularly suitable as a load-bearing cladding
  • Capable of carring high loads
  • Available up to 3 m length
  • Available in assorted widths

Panel Profiles PP
  PP 50 L PP 50 PP 100 PP 150 PP 200 PP 250
Dimensions (W × H) 50 x 50 mm 50 x 16 mm 100 x 16 mm 150 x 16 mm 200 x 16 mm 250 x 16 mm
Length up to 3 metres (special lengths upon request)
Weight approx. 1.7 kg/m approx. 1.1 kg/m approx. 1.9 kg/m approx. 2.6 kg/m approx. 3.4 kg/m approx. 4.1 kg/m
  2 cavity inserts
Ø 5.5 mm for
M6 screw
1 cavity insert
Ø 5.5 mm for
M6 screw
2 cavity inserts
Ø 5.5 mm for
M6 screw
in 50 mm raster
3 cavity inserts
Ø 5.5 mm for
M6 screw
in 50 mm raster
4 cavity inserts
Ø 5.5 mm for
M6 screw
in 50 mm raster
5 cavity inserts
Ø 5.5 mm for
M6 screw
in 50 mm raster
Moment of inertia Ix 13.25 cm4 8.13 cm4 67.27 cm4 213.92 cm4 482.77 cm4 908.52 cm4
Moment of inertia Iy 13.25 cm4 1.37 cm4 2.46 cm4 3.55 cm4 4.64 cm4 5.74 cm4
Moment of resistance Wx 4.39 cm3 3.25 cm3 13.45 cm3 28.52 cm3 48.27 cm3 72.68 cm3
Moment of resistance Wy 4.39 cm3 1.71 cm3 3.08 cm3 4.44 cm3  5.80 cm3  7.17 cm3
