ZDS 2030 Dual Axis Rotary Stage

  • ZDS 2030 Dual Axis Rotary Stage

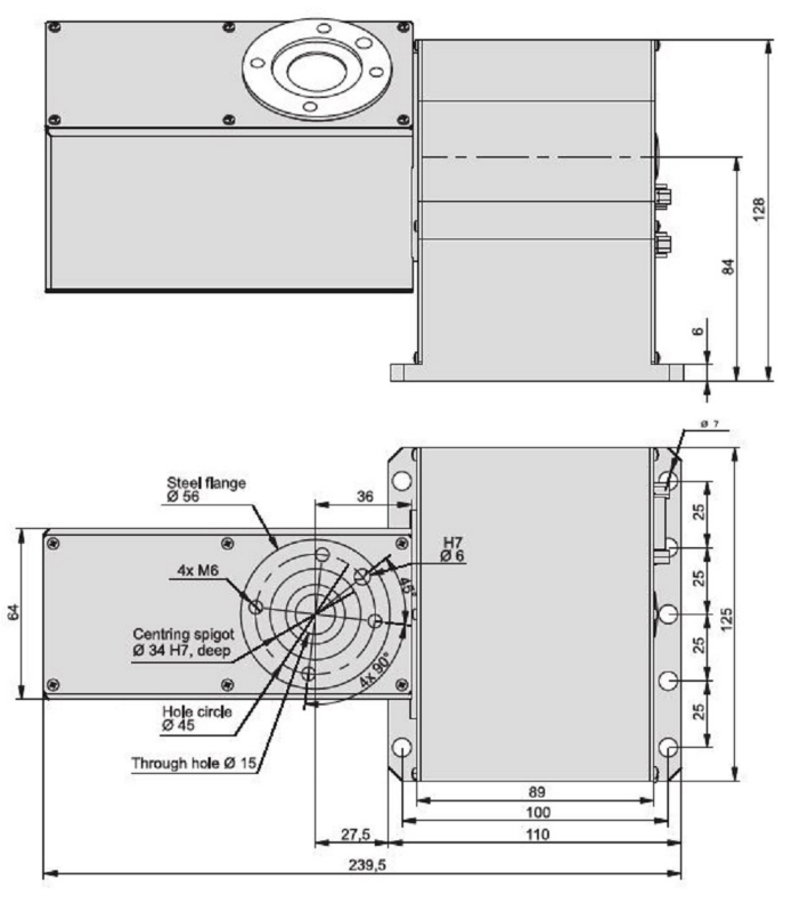

  • ZDS2030 Dual Axis Rotary Stage Dimensioned Drawing
Click image to enlarge

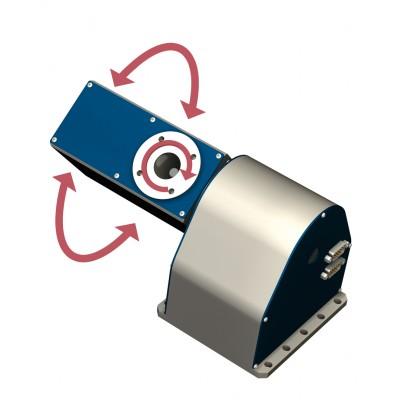

The ZDS 2030 is a stepper motor driven dual axis rotary stage. I
t can be fitted with a 3 jaw chuck or SK20 collet holder or custom fitted as required
  • Tilt axis can rotate ±139°
  • Swivel axis can rotate infinite amount in either direction
  • Non-contact limit switches on both axes
  • Available accessories include 3 jaw chucks - 65mm diameter, 80mm diameter and 125mm diameter and ER20 collet holder
  • 30:1 ratio on tilt axis
  • 20:1 ratio on swivel axis
  • NEMA 17 stepper motor on both axes
  • For catalog pages (including ZD30 and ZR20) - click here
  • For SOLID MODEL - click here
For machining or heavy duty applications - see our DSH-S Dual Axis Rotary Stage.
View Accessories Select parts and
ADD TO QUOTE

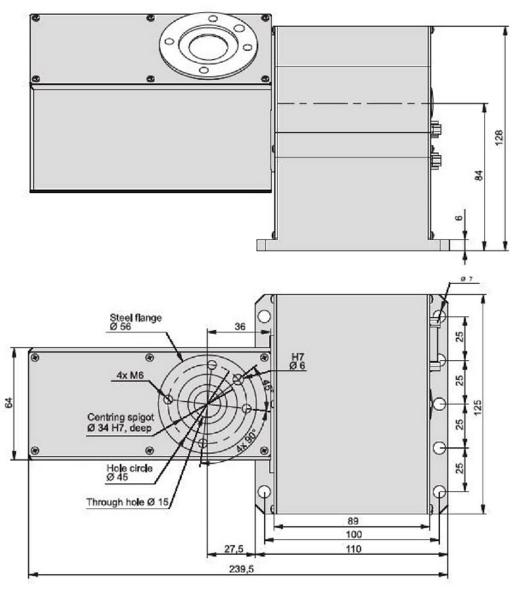

Dimensioned Drawing

(click on image to enlarge)
ZDS 2030 Dual Axis Rotary Stage Dimensions
View Accessories Select parts and
ADD TO QUOTE
Dimensioned Drawing

ZDS 2030 Accessories
3 Jaw chuck 65 mm diam. 3 Jaw Chuck 80 mm diam.
3 jaw chuck, 65mm dia. 3 jaw chuck, 80mm dia.
SK20 collet holder for ER 20 Collets 3 Jaw chuck, 125 mm diam.
SK20 collet holder accepts ER20 collets 3 jaw chuck, 125mm dia.

See below, select  QTY and click ADD TO QUOTE
