Ball Screws 12, 16, 20, 25 mm Diameter
Click image to enlarge
- Our ball screws are precision rolled and hardened to ISO Class 7.
- Available in diameters of 12, 16, 20 and 25mm diameters
- Available with either machined or unmachined ends.
- Available with only 1 end machined for short lengths
- Available with both ends machined in lengths up to 3m
- Custom machined ends available for 20 pcs or more - send us a print!
- Standard unmachined lengths of 500, 1000, 1500, 2000, 2500 and 3000mm from stock.
- Our ball nuts are offered in several different designs and load capacities with and wthout wipers.

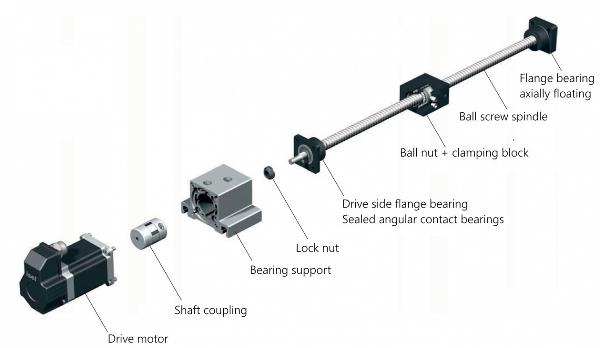

- Complete ball screw kits available - including machining, ball nut, end bearing supports, wipers
- Click here for compatible ball nuts, support bearings and accessories
- Click here for quote on machined or unmachined ball scews,
![]() (click image to enlarge) |

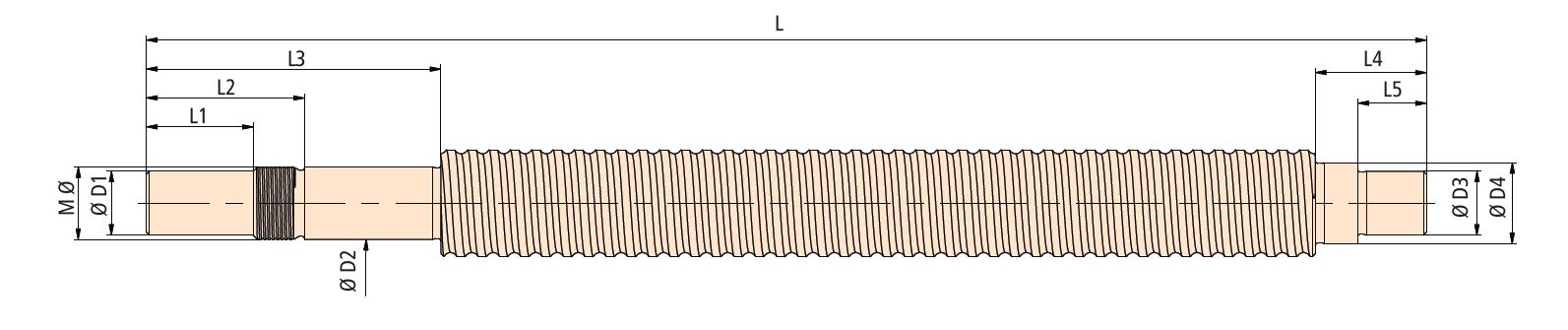

Machined Ball Screw Dimensions |
![]() |
Flanged Ball Nut for 16mm Diameter Ball Screws Patented anti-backlash design Repeatability of <0.01mm Accuracy of <0.1mm/300mm Ball nut and flange mount single piece design |
![]() |
KM Ball Nuts Available for all diameter ball screws and all pitches Patented adjustable anti-backlash design (when used with required mounting blocks) Made of steel, repeatability of < 0.01 mm Accuracy of < 0.1 mm/300mm. Wipers avail. Flange or base mounting options |
![]() |
Top Mounting Block for KM Ball Nut Black oxide coating Ground and polished Access for both ball nut lubrication and ball nut backlash adjustment Works with all KM ball nut pitches |
![]() |
Flange Mounting Block for KM Ball Nut Black oxide coating Ground and polished Access for both ball nut lubrication and ball nut backlash adjustment Works with all KM ball nut pitches |
Select specifications for quote on machined or UN-machined ball screws
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
|
Add To Quote |
Ball screw spindles |
||||||||||||
Blank | Spindle pitch | L [max.] | L1 | L2 | L3 | L4 | L5 | M | D1 | D2 | D3 | D4 |
Ø 16 | 2.5 / 4 / 5 / 10 / 20 | 3,052 | 18 | 31 | 52 | 28 | - | M10 x 0.75 | 8 h7 | 10 h6 | 12 h6 | - |
Ø 25 | 5/10/2020 | 3,052 | 25 | 37 | 69 | 26 | 16 | M17x 1 | 15 h7 | 17 h6 | 15 j6 | 19 h11 |
