PU25 Aluminum Profile

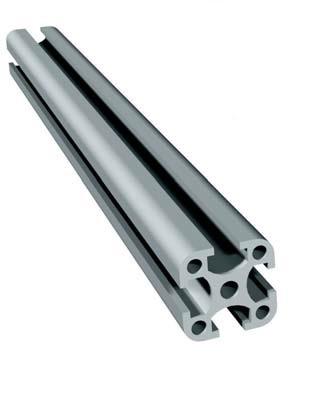

  • PU 25 Aluminum Profile

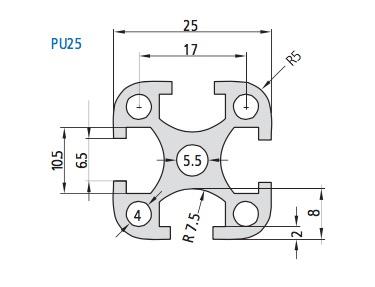

  • PU 25 Aluminum Profile Drawing
Click image to enlarge
The PU25 Aluminum Profile is 25x25mm. It is used for framing and guarding in general automaiton applications.  Also use for  building frames, benches, racks and partitions. Suitable for high loads.
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Light, compact and stable
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Available up to 3 m length
  • Option power coatings in anthracite and grey

Universal Profiles PU 25
  PU 25
Dimensions (W × H)  25 x 25 mm
Length  up to 3 metres (special lengths upon request)
Weight  appr. 0.7 kg/m
  4 T-key inserts for M6 sliding nuts
Cavity insert, Ø 5.5 mm for M6
Moment of inertia Ix   1.43 cm4
Moment of inertia Iy  1.43 cm4
Moment of resistance Wx  1.14 cm3
Moment of resistance Wy  1.14 cm3
