DSH-S Dual Axis Rotary Stage

  • DSH-S Compound Rotary Stage
  • Optional 3 Jaw Chuck for DSH-S
  • Optional T slot mounting plate for DSH-S
Click image to enlarge

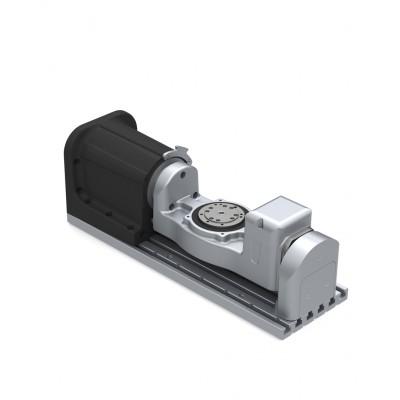

The DSH-S Dual Axis Rotary Stage is a rigid, high load capacity compound rotary stage.
  • It is sealed against dust and coolant spray to IP65
  • Available with reductions of 51:1 or 101:1
  • Parts up to a 6" cube can be positioned for inspection, machining, engraving...
  • It can be combined with any Isel gantry system to make a 4 to 5 axis automation platform.
  • Made of aluminum and stainless steel
  • Transfer accuracy <1.5 minute of arc
  • Repeatability < ± 6 seconds of arc
  • Tilt range of 190° (±95° from vertical)
  • Swivel - infinite range


(click on image to enlarge)

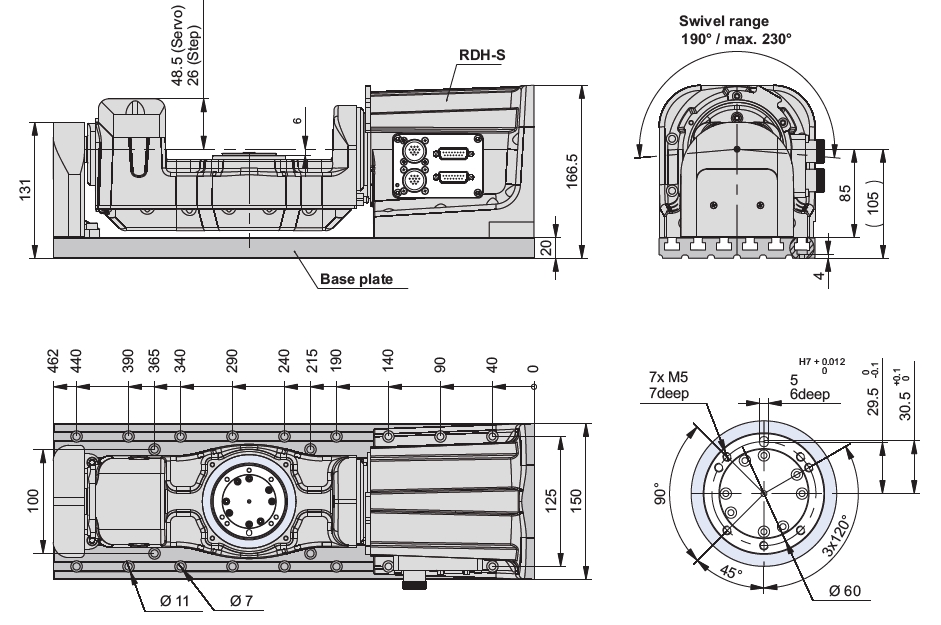

DSH-S Dual Axis Rotary Stage Dimensions

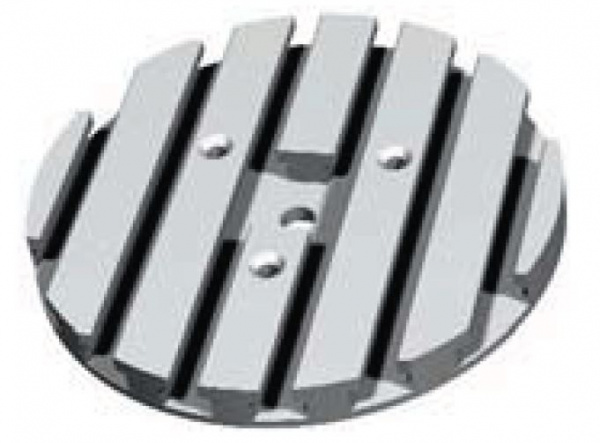

T Slot Mounting Plate for DSH-S Dual Axis Rotary Stage T slot mounting plate, 150mm Ø

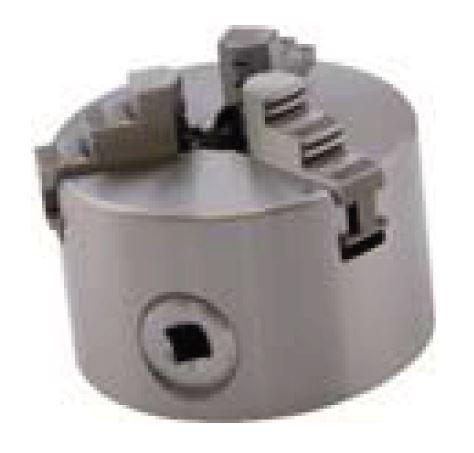

3 Jaw Chuck for DSH-S Dual Axis Rotary Stage 3 jaw chuck for DSH-S,
Available in 3 diamters:
65mm Ø
80mm Ø
100mm Ø
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • With precision harmonic drive transmission
  • High load capacity, rigid drive bearing
  • Absence of play and high torsional rigidity
  • Reduction 1:51 or 1:101
  • Stepper or servomotor
  • Protection class IP 65, sealed against dust and spray coolant
  • Stainless Design
  • Transfer accuracy less than1.5 minute of arc
  • Repeatability - ±6 seconds of arc
  • Maintenance free, lubricated for life
  • Unlimited swivel rotation

DSH-S
  stepper motor MS 045 HT * EC servomotor EC 42 DC servo motor RE 40
Reduction ratio  1:51 1:101 1:51 1:101 1:51 1:101
Nominal output speed [1/min]  4 2 22 11 22 11
at 1500 Hz (225 1/min)  at 1100 1/min at 1100 1/min
Max. output speed [1/min]  24 12 59 30 69 35
at 8000 Hz  --
Nominal torque [Nm]  7 11 4.8 9.2 4.6 9
at 1500 Hz  --
Max. torque (short term) [Nm]  --  --  7 11 7 11
Rated holding torque (static load) [Nm]  7 11 7 11 7 11
Max. transmission load [Nm]  18 28 18 28 18 28
Limit for repeatable peak torque
Dynamic load factor C [N]  5800
Static load factor C0 [N]  8600
Weight [kg]  12
  * Values for half-step operation
