Gantry Flatbed Cartesian Robot

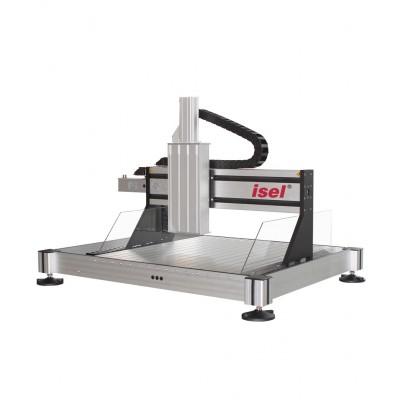

  • XYZ Cartesian Robot

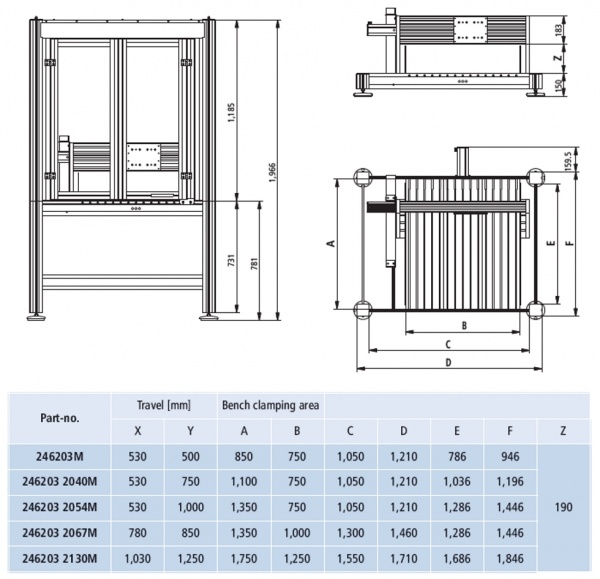

  • XYZ Cartesian Gantry Robot Dimensions

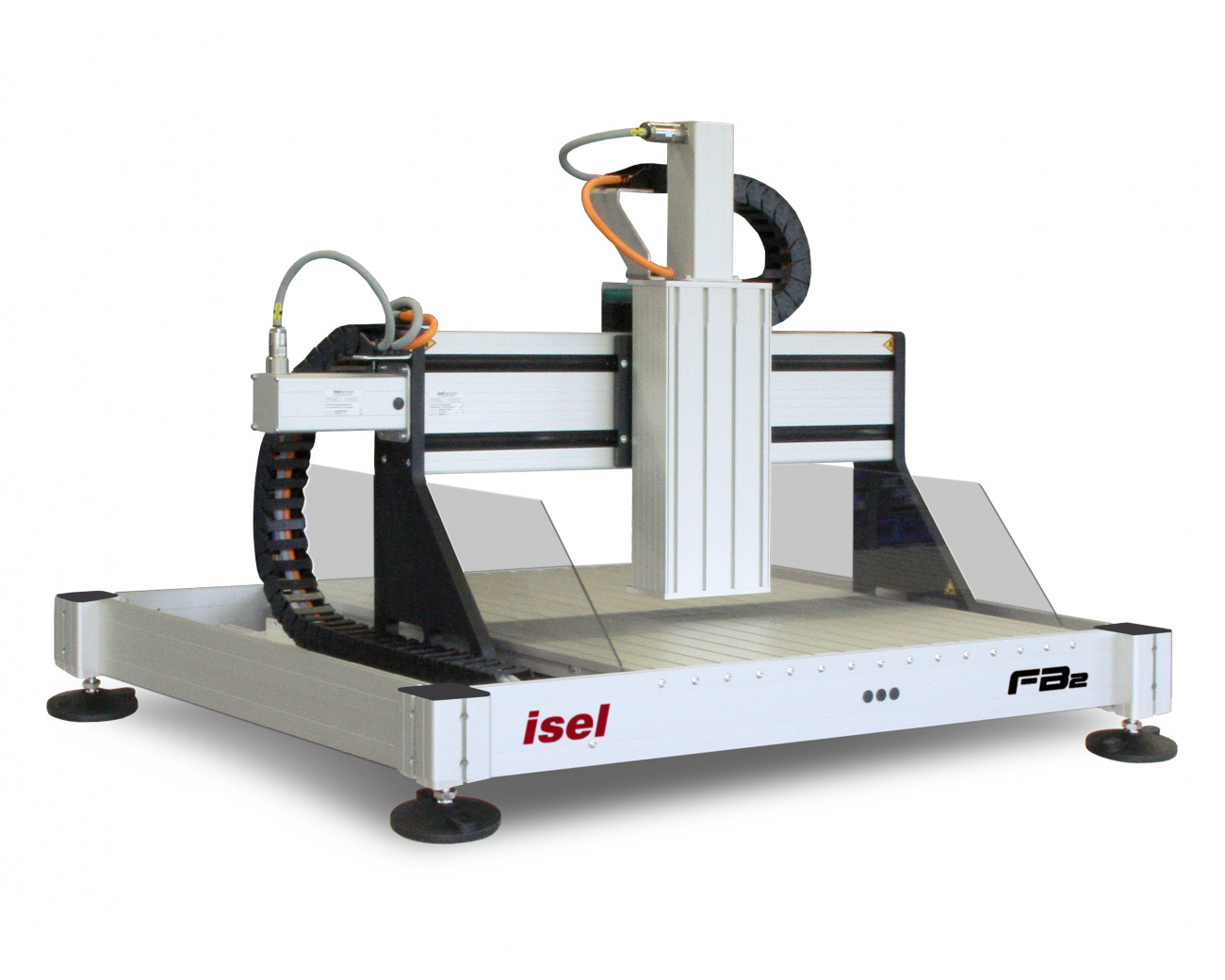

  • Gantry Flatbed Cartesian Robot with stepper motors

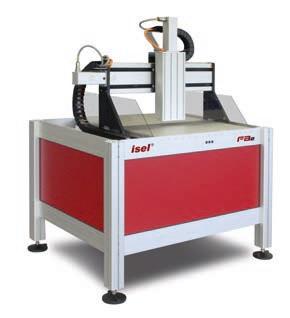

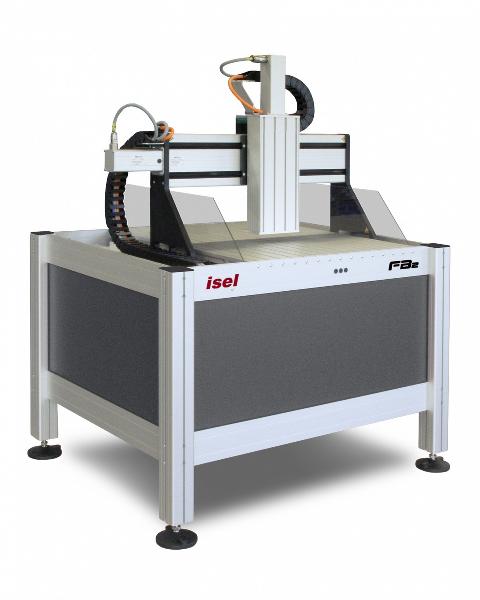

  • Gantry Flatbed Cartesian Robot with optional stand

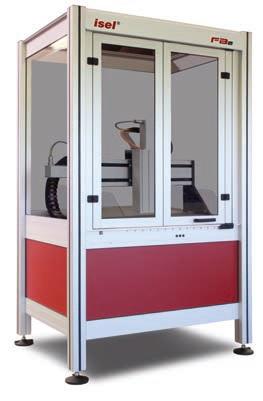

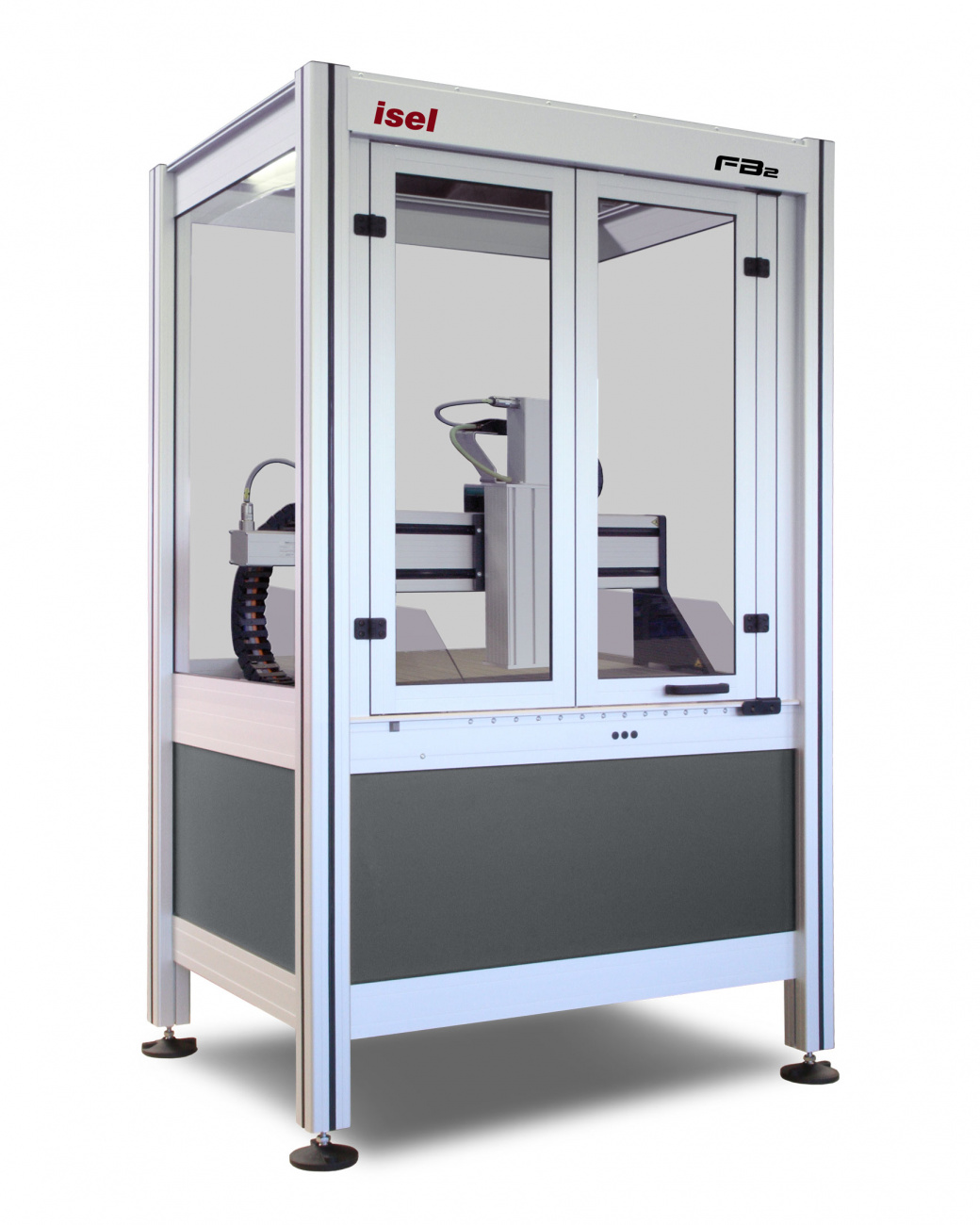

  • Gantry Flatbed Cartesian Robot with optional stand and enclosure
Click image to enlarge

Instant Automation Out of the Box

For an introduction to Cartesian Robots, please read What is a Cartesian Robot?
  • Cartesian motion gantry robots available as XY or XYZ
  • Travel: in 6 different sizes as XY or XYZ
  • Gantry Clearance: 5”, 8”, 12”, 20”
  • Z axis: 3” to 20” (75-575mm in 100mm increments)
  • All axes are ball screw driven with anti-backlash ball nuts for smooth accurate motion.
  • The moving gantry provides a large stationary work surface for EASY AUTOMATION
  • Enclosure options include safety interlock and light curtains
  • It can be outfitted with stepper or servomotors or your own motors.
  • AVAILABLE AS COMPLETE TURNKEY SOLUTIONS WITH ELECTRONICS
    • both stepper and servo motors and controls available
    • NO WIRING or ASSEMBLY - just plug in the motor cables
  • Click here for T nuts compatible with the T slots on the Flatbed Gantry robots

Cartesian Robot FB2 Models

Model Table Size mm (in) XY Travel mm (in)
015 500 x 600 mm (19.7 x 23.6") 290 x 350 mm (11.4 x 13.8")
027 750 x 850 mm (29.5 x 33.5") 530 x 500 mm (20.9 x 19.7")
040 750 x 1100 mm (29.5 x 43.3") 530 x 750 mm (20.9 x 29.5")
054 750 x 1350 mm (29.5 x 53.1") 530 x1000 mm (20.9 x 39.4")
067 1000 x 1350 mm (39.3 x 53.1") 780 x 850 mm (30.7 x 33.5")
130 1250 x 1750 mm (49.2 x 68.9") 1030 x 1250 m (40.6 x 49.2")

Model 015 only available with 125mm gantry clearance.
All other models available with 190mm, 300mm or 500mm gantry clearance
Click here for Z axis options.
We also offer a number of cutting spindle options.
CUSTOMIZABLE with a number of options:

  • stand
  • safety enclosure
  • safety door interlock or light curtain
  • multiple Z axes or single or dual axis rotary axes
  • 4th or 5th axis
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Moving XY Gantry provides large stationary work surface.
  • Available as XY or XYZ
  • Models from 11" x 13" up to 40" x 49" Travel
  • Stepper servo or no motor with NEMA 23 or NEMA 34 motor mount
  • Standard anti-backlash ball screw and nut assembly
  • Integral dust cover on X does not reduce travel
  • Systems can be equipped with an optional safety enclosure and/or stand
  • All axes provided with home reference switch and far end limit switch with ±0.01 mm (±.0004 in) repeatability
  • FB2 Gantry Table System replaces Gantry III Tables
  • Standard clearance under the gantry is 190 mm (7.5 in) (optional gantry clearance heights of 300 mm (11.8 in) and 500 mm (19.7 in) available)
