Enclosure Extrusion Profiles
Click image to enlarge
ALUMINUM EXTRUSION ENCLOSURE PROFILESAluminum extrusion enclosure profiles are extrusions that are specifically designed to produce CUSTOM electronic, mechanical or electro-mechanical enclosures quickly, easily and with custom sizes without custom tooling. The profiles are available in 3 styles - corner profiles, side profiles and shell profiles.

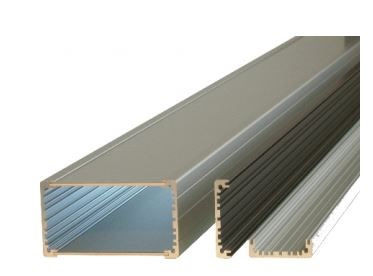

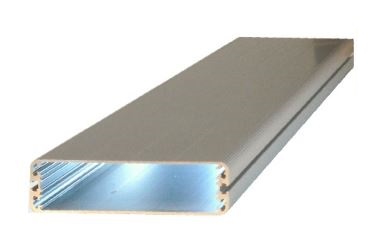

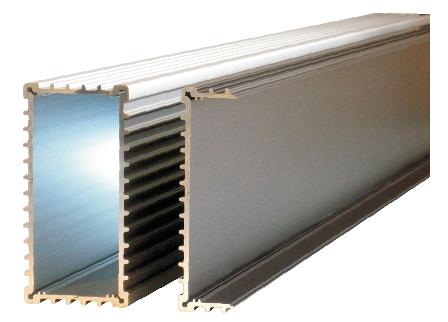

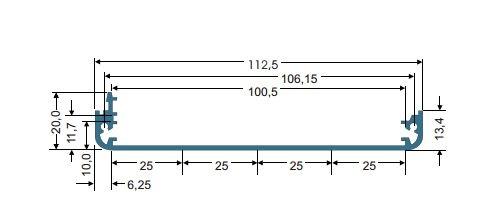

Aluminum Extrusion Shell ProfilesAluminum extrusion shell profiles form half an enclosure and when flipped 180° mates with itself to form a rectangular enclosure. The full enclosure is held together with the front and rear face plates that can be screwed to the extrusions through self-tapping screws at the corners. The shell profiles are available in 2 sizes that mate with themselves as well as with each other to form 3 different widths of cross section enclosures. The LENGTH of these 3 different cross section enclosures can be arbitrarily selected - up to 3m long. These Shell Profiles have built in card guides which are designed to hold EUROCARDS which are 100mm in HEIGHT.

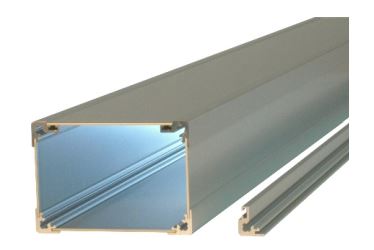

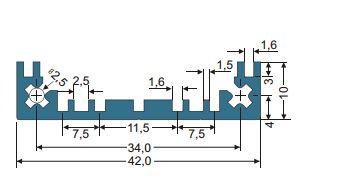

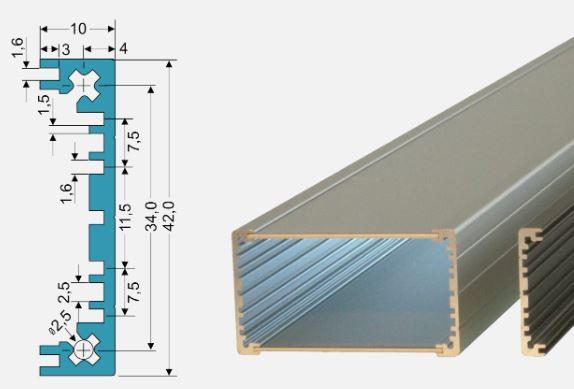

Aluminum Extrusion Side ProfilesAluminum extrusion side profiles form the 2 facing sides of the enclosure and are connected with aluminum panels of any size needed for the enclosure. The Side Profile Enclosures are available in 2 different sizes. The LENGTH and WIDTH of enclosures made with these profiles can be arbitrarily selected, up to a length of 3m. The built in card guide can be used to hold standard .062" thick PCB's.

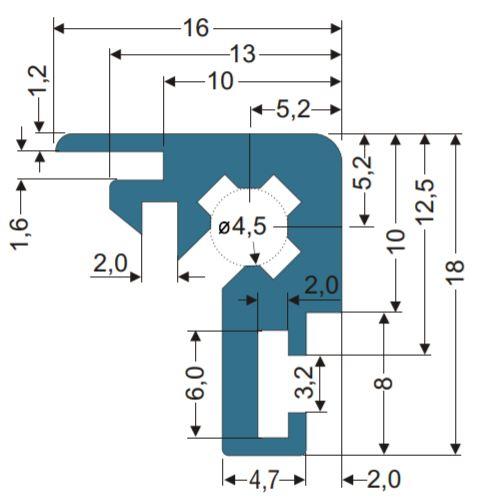

Aluminum Extrusion Corner ProfilesAluminum extrusion corner profiles form the corners of the enclosure. Thus the LENGTH, WIDTH and HEIGHT of the enclosure can be arbitrarily specified. The LENGTH is determined by the length of the CORNER PROFILE. The WIDTH and HEIGHT can be arbitrarily selected by choosing the dimensions of the aluminum sheet metal sides.

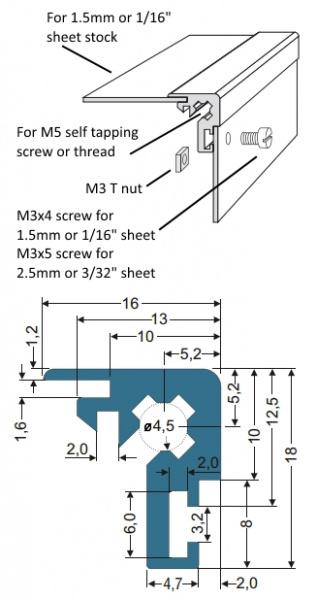

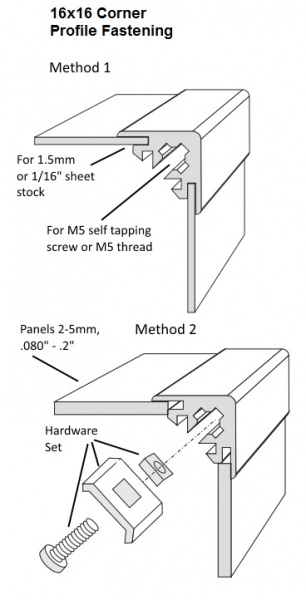

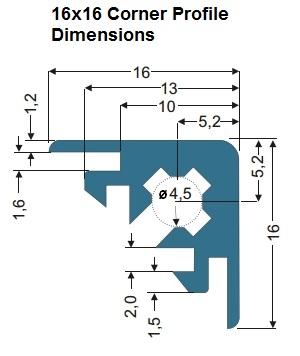

|16x16mm Corner Extrusion Profile Use||16x18mm Corner Extrusion Profile Use|
We offer a selection of aluminum extrusion enclosure profiles. You can make CUSTOM enclosures of any length quickly, easily and with LOW COST.
Just add aluminum side panels and make an enclosure of whatever size and length you need! This enclosure profile is made of clear anodized extrud... [Read More]
Just add aluminum panels and make an enclosure of whatever size you need! This ENCLOSURE profile is made of clear anodized extruded aluminum.&nbs... [Read More]
Ideal for standard Eurocard format of 100x160mm or half Eurocard format of 100x80mm These extrusions mate with each other when flipped 180&d... [Read More]
