LEZ H Frame

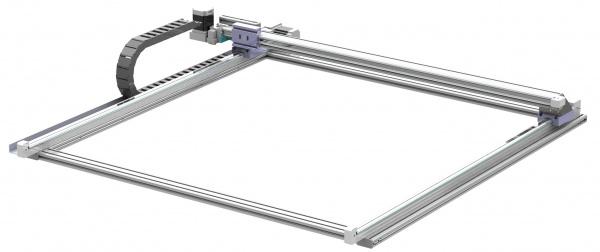

  • Turnkey H Frame with LEZ 1 Belt Drive Slides
Click image to enlarge
Isel USA has a turnkey H Frame system using the LEZ 1 belt drive slide
  • available as XY or XYZ using the LEZ 1 belt drive slides which are
    • light
    • low profile
    • low cost
    • fast and accurate
  • completely assembled and ready to use
  • travel up to 1.5m x 1.5m
  • Z stroke dependant on weight being moved
  • available with
    • NEMA 17 stepper motor and 2:1 drive
    • NEMA 23 stepper motor and 2:1 drive
    • 42mm frame brushless servo motor/encoder and 2:1 drive
    • NEMA 23 motor mount - no motor
  • Available with or without controller
  • Mounted on FRAME with CABLE CARRIERS
Click here to select model and ADD TO QUOTE
LEZ 1 with Linear Bearing Carriage Dimensions
Select model parameters and then click ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Add To Quote
