RF1 Rotary Stage

  • RF1 Rotary Stage
  • 125mm diameter 3 jaw chuck for RF1 Rotary Stage
  • T Slot mounting plate for RF1 Rotary Stage

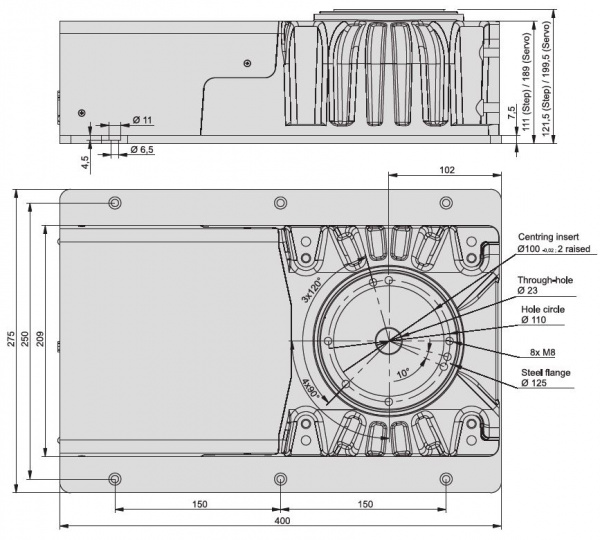

  • RF1-Rotary-Stage-Dimensioned-Drawing
Click image to enlarge
RF1 Rotary Stage is a high load rotary stage with an extremely low backlash belt drive.
  • RF1 Rotary stage can handle loads up to 150kg (330 lbs)
  • Available with 3 drive ratios
    • 24:1
    • 52:1
    • 100:1
  • Available with stepper or servo motor
  • Motor is built into the body for space saving and protection
  • Available with optional electromagnetic brake
  • T slot mounting plate and 3 jaw chuck are available options
Click here to select model and accessories to ADD TO QUOTE
Click here to VIEW ACCESSORIES

RF1 Rotary Stage Dimensions
RF1 Rotary Stage Accessories

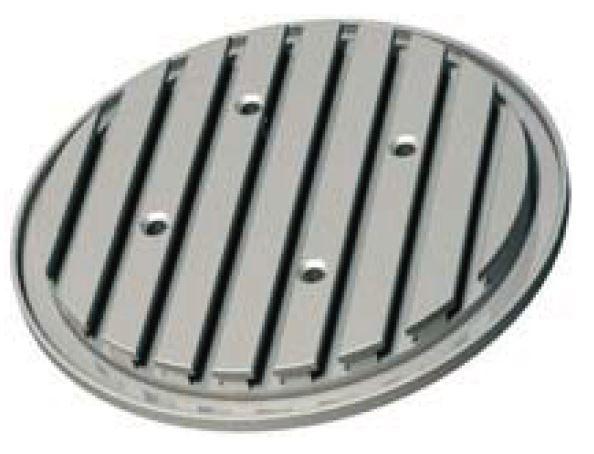

Aluminum T Slot Mounting Table Plate for RF1 Rotary Stage T Slot Table plate, available with 240mm ø or 365mm ø
125 mm Diameter 3 Jaw Chuck 125 mm diameter 3 jaw chuck with mounting hardware

See below to select model and accessories to ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Loads up to 150 kgs
  • Stepper or brushless servo or DC brush servo motor
  • Low play toothed belt drive
  • Reduction 1: 24 ( standard )
  • Weight 14.6 kg
  • Optional reduction installation set of 1:52 or 1:100
  • Optional electromagnetic brake motor ( 60 Nm )
  • Optinals step motor drive with encoder

RF 1
  stepper motor MS 200 HT *     Servomotor DC 100/EC 60S
Reduction ratio  1:24  1:52  1:100  1:24  1:52  1:100
Output speed [1/min]  0 - 50  0 - 23  0 - 12  0 - 125  0 - 58  0 - 30
Operating torque (0 - 500 Hz) [Nm]  20 42 75 --
Operating torque (500 - 1000 Hz) [Nm]  18 38 75 --
Rated torque [Nm]  --  41070 13 / 22  25 /42
Rated holding torque (static load) [Nm]  37 75 75 41102 16 / 26  30 /50
Angle accuracy [°]  0.16
Weight [kg]  14.6
  * Values for half-step operation
Rotary or tilting units
Rotary or tilting units 1* 2* 3 4 5 6 7
RF 1 (step)  60 kg  30 kg  37 Nm  17.5 Nm  17.5 Nm  50 rpm  1:24
RF 1 (step)  100 kg  50 kg  75 Nm  38 Nm  38 Nm  23 rpm  1:52
RF 1 (step)  150 kg  75 kg  75 Nm  75 Nm  75 Nm  12 rpm  1:100
RF 1 (DC servo/EC servo)  70 kg  35 kg  7 / 12 Nm  6 / 10 Nm  6 / 10 Nm  125 rpm  1:24
RF 1 (DC servo/EC servo)  110 kg  55 kg  16 / 26 Nm  13 / 22 Nm  13 / 22 Nm  58 rpm  1:52
RF 1 (DC servo/EC servo)  160 kg  80 kg  30 / 50 Nm  25 / 42 Nm  25 / 42 Nm  30 rpm  1:100
*) Guideline values will vary according to application !!
