RE15x75 Aluminum Extrusion Table Plate

  • RE 15 Aluminum Extrusion Table Plate 15x75

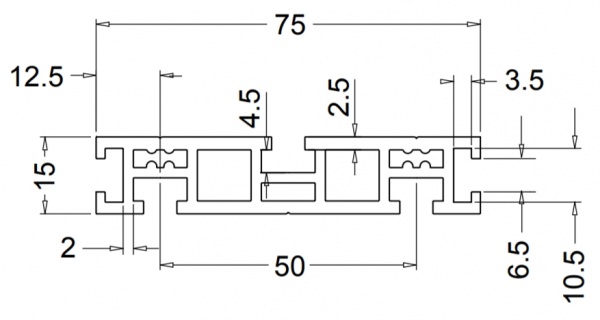

  • Table Plate Extrusion 15-75 Dimensions
Click image to enlarge

This Mini-Table Plate is just 15x75mm with 2 T slots on one side and 1 T slot on the other side.

  • Ideal for use as a universal mounting platform or fence guide
  • Also suitable for machine tables which use T-slots to hold work pieces and to mount gauging and test fixtures.
  • Clear anodized for protection and good looks
  • Available in lengths up to 3m
    • standard lengths of increments of 250mm
    • custom cut to any length needed for a nominal cut charge
  • A variety of T nuts available for fixturing and mounting
  • Two specially shaped channels, 50mm apart and above the T slots, are available at each end of the extrusion to be used with M4 self-tapping screws or can be tapped with an M4 thread.


Weight/Meter: 1.510 kg/m
Moment of Inertia Ix: 1.421 cm4
Moment of Inertia Iy:  25.93 cm4
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Available in any lenght up to 3 meters
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Produced to Din EN 12020-2
  • Available in 3 widths ( 15x75,15x125,15x175,15x250)
