Eurocard Shell Enclosure Extrusion

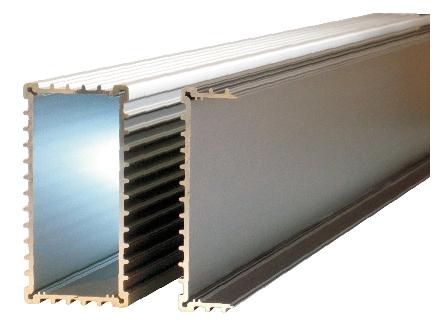

  • 28x110mm EUROCARD Shell Enclosure

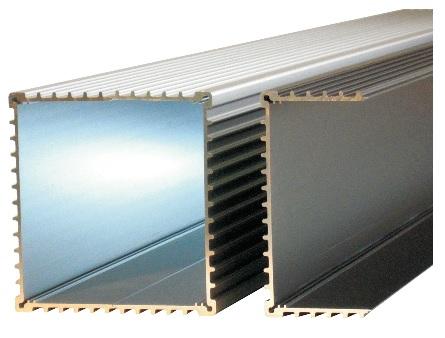

  • 53x110mm EUROCARD Shell Enclosure Profile
Click image to enlarge
  • Ideal for standard Eurocard format of 100x160mm or half Eurocard format of 100x80mm
  • These extrusions mate with each other when flipped 180° to form a "shell"
  • A full enclosure requires a front and rear panel - AVAILABLE IN 3 SIZES
  • The length is controlled by the length of the extrusion - up to 3m long.
  • Available in standard lengths of 1, 2 and 3m with custom cuts at $5/cut.
  • A built in card guide is designed to hold 1.6mm or 1/16" thick circuit boards with Eurocard widths of 100 mm.and any length
  • Corner "cross" is designed for M3 tap or M3 self-tapping screw
  • The enclosure is held together by the face plates which are screwed to the corners with M3 screws.
  • Enclosures with internal dimensions 100.5x43.7 mm can be made with 2 of the 28x110 mm profiles
  • Enclosures with internal dimensions 100.5x93.7 mm can be made with 2 of the 53x110 mm profiles
  • Enclosures with internal dimensions 100.5x68.7 mm can be made with 1 EACH of the 28x110 and 53x110 mm profiles
  • The exterior has a natural cooling design
  • Download Euro Card Shell 28x110.DXF
  • Download Euro Card Shell 53x110.DXF

Eurocard Enclosure Extrusions Dimensions

28x110 Shell Enclosure Profile Extrusion Cross Section

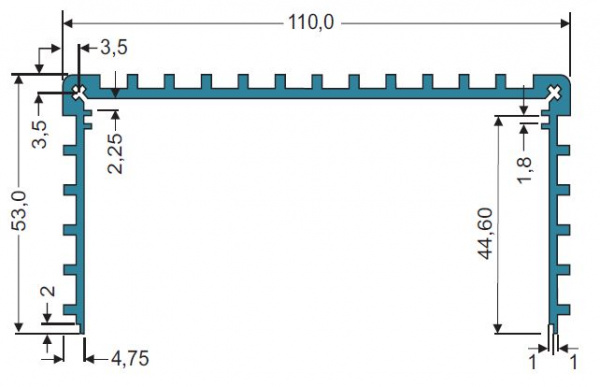

53x110 Shell Enclosure Profile Extrusion Cross Section
