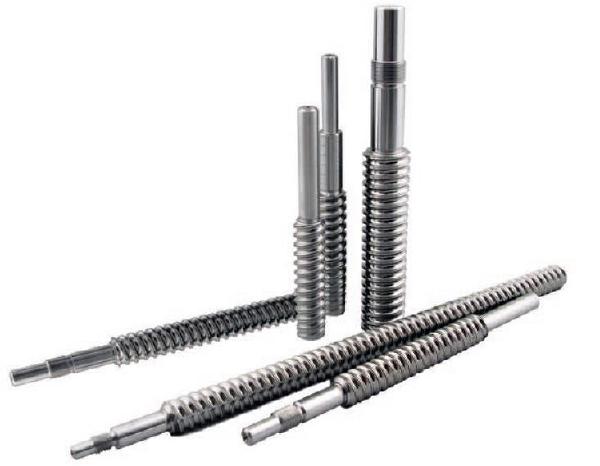

  • Machined ball screws available with one or both ends machined
Click image to enlarge
Mounting Blocks for KM Ball Nuts
Top Mounting Block and Flange Mounting Block

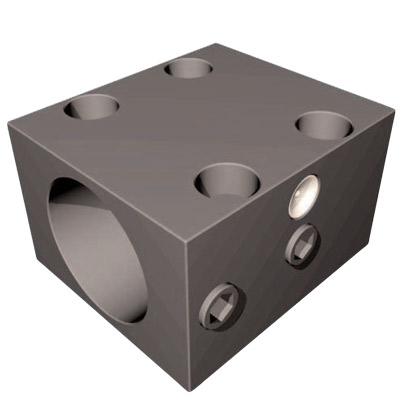

Top Mounting Ball Nut Block
  • Top mounting block has grease fitting and backlash adjustment screw
  • comes with threaded lock nut to secure ball nut for 20 and 25mm ball screws
  • 12 and 16mm ball nuts secured by lock scerw
Ø Part Number M L B H H1 L1 L2 L3 Clamping Nut
12 213400 24 37.5 44 29 14.5 7 20 31 -
16 213500 28 54 47 33 16.5 14.5 25 35 -
20 213600 33 61.5 53 40 20 10 30 40 1x
25- pitch 5/10 213700 9001 38 60 60 49.5 25 10 30 46 1x
25- pitch 20 213700 9002 38 80 60 50 25 10 50 46 1x

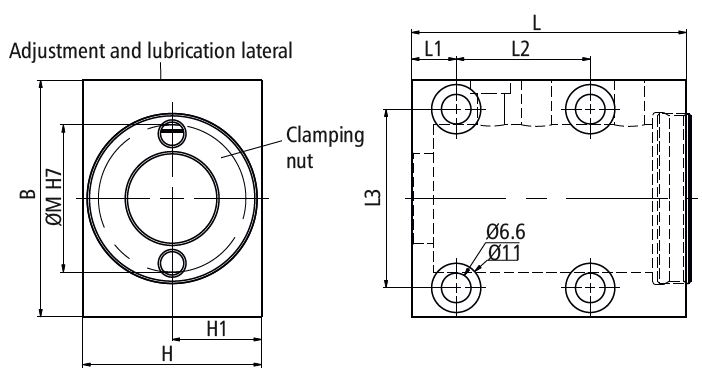

Top Mounting Block Dimensions

Flange Mounting Block and Top Mounting Block

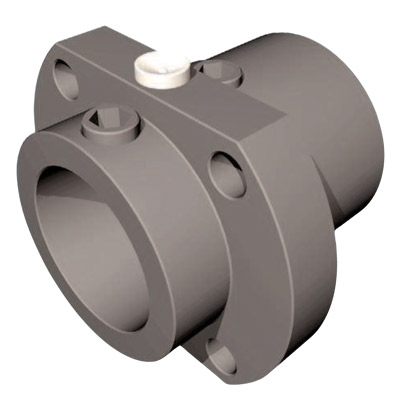

Flange Mounting Ball Nut Block
  • Flange mounting block has grease fitting and backlash adjustment screw
  • comes with threaded lock nut to secure ball nut for 20 and 25mm ball screws
  • 12 and 16mm ball nuts secured by lock scerw
Ø Item-No. M L B H d T D1 D2 D3 L1 L2 Clamping nut
12 213401 24 37.5 53 42 4.5 45 35 37 g6 35 3 24.5 -
16 213501 28 50 62 48 6.6 51 39 40 g6 39 11.6 28.4 -
20 213601 33 60.5 67 53 6.6 56 44 45 g6 44 16 34.5 1x
25- pitch 5/10 213700 9003 38 60 80 62 9 65 49 50 f9 50 f9 32.25 17.75 1x
25- pitch 20 213700 9004 38 80 80 62 9 65 49 50 f9 50 f9 52.25 17.75 1x

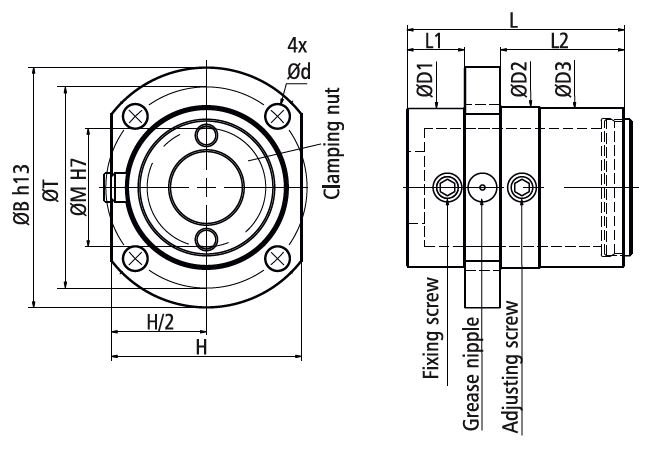

Flange Mounting Block Dimensions
