PS100 and PS140 Structural Aluminum Profile

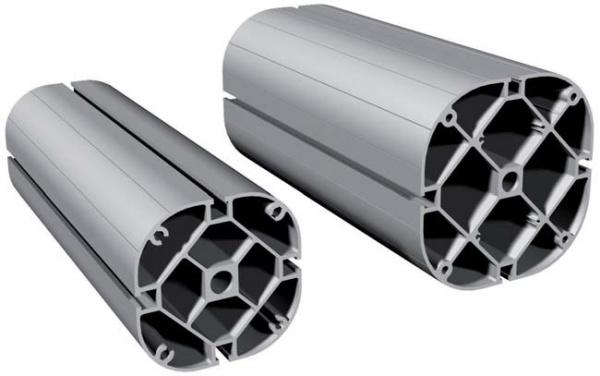

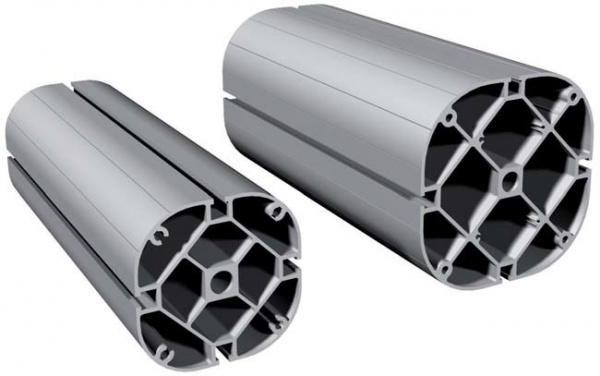

  • PS 100 and PS 140 Structural  Aluminum Profiles`

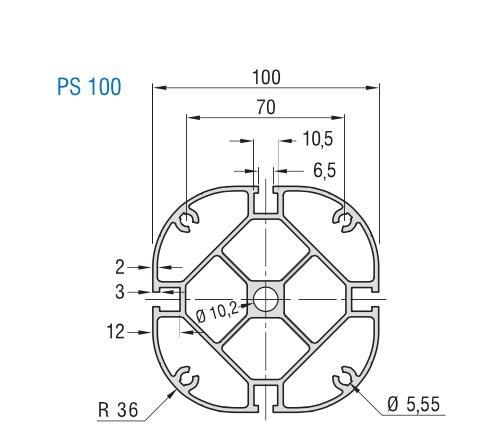

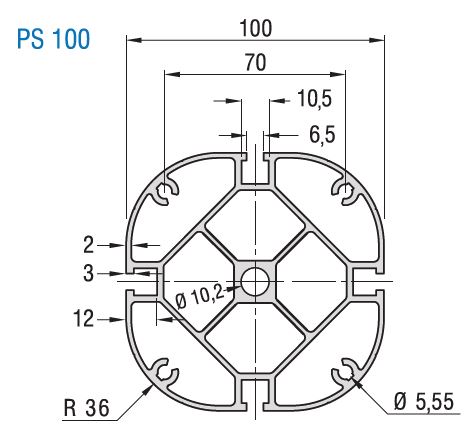

  • PS 100 Aluminum Profile Drawing

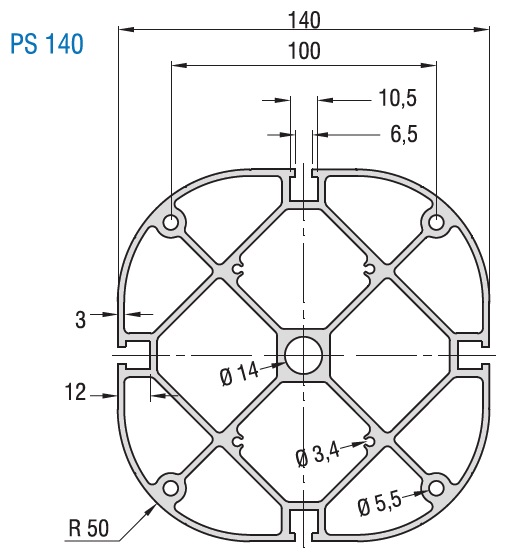

  • PS 140 Structural Aluminum Profile Dimensions
Click image to enlarge
  • These are light structural aluminum profiles designed for large stable framing applications
  • The profiles have ribbing to make them stiffer for large machine frames and enclosures - see the bending moments
  • The clear anodized finish provides good looks and protection.
  • Available in 3m lengths or cut to 250mm increments as standard
  • Custom lengths available for a small cut charge
  • NOTE: Center holes can be tapped for levelling feet or castors
    • Holes at the corners of extrusion can be tapped for M6 thread
    • The 3.4mm cavities in the PS 140 extrusion can be tapped for M4 thread
    • Center of PS 100 can be tapped for M12 thread
    • Center of PS 140 can be tapped for M16 thread
  • These extrusions use the T nuts for Structural Profiles
PS 100 and PS 140 Specifications
  Size mm Wt kg/m Ix cm4 Iy cm4
PS 100 Structural Aluminum Extrusion Profile Dimension 100x100 5.1 163 163
PS 140 Structural Aluminum Extrusion Profile Dimensions  140x140 9.2 600 600





Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Capable of carring high loads
  • Light, compact and stable
  • Available up to 3 m length
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Option - Power Coatings
  • Extremely rigid general purpose beam

Stand Profiiles PS 100
  PS 100
Dimensions (W × H)  100 x 100 mm
Length  up to 3 metres (special lengths to order)
Weight  appr. 5.1 kg/m
  4 T-key inserts for M6 sliding nuts 4 cavity inserts, Ø 5.55 mm for M6 Cavity insert, Ø 10.2 mm for M12
Moment of inertia Ix  163.00 cm4
Moment of inertia Iy  163.00 cm4
Moment of resistance Wx  32.60 cm3
Moment of resistance Wy  32.60 cm3
