EuroMod Gantry

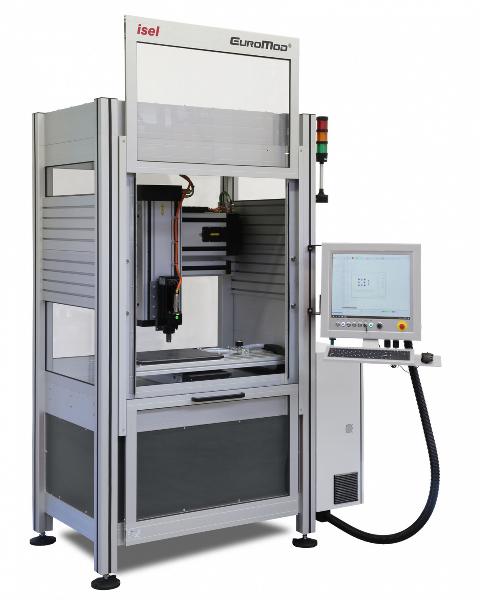

  • EuroMod Cartesian Gantry Robot with enclosure and safety door interlock

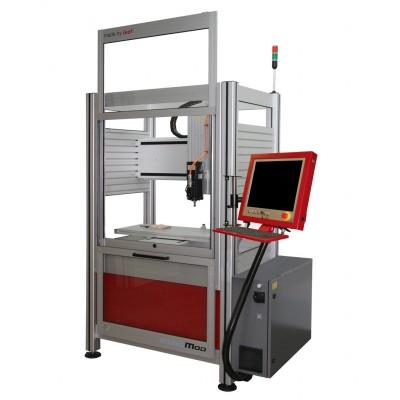

  • EuroMod Cartesian Gantry Robot
Click image to enlarge

3 Models:

Euromod Cartesian Gantry Robot Size Options

  EuroMod MP 30 EuroMod MP 45 EuroMod MP 65
Travel X/Y/Z [mm] *  610 / 300 / 300 610 / 470 / 300 910 / 650 / 300
Work surface area W × D [mm]  900 x 350 900 x 500 1,200 x 700
Gantry Clearance 365mm


A complete Cartesian gantry robot system setup, the EuroMod has brushless servomotors, 4th and 5th rotary axis options, driven by ball screws for smooth and accurate motion. System comes with I/O, an embedded PC, keyboard and monitor.

It is shipped assembled and ready to power up and run.

We offer a number of customization options
  • stands
  • full or partial enclosures
  • safety interlock doors or light curtains
  • single or dual axis rotary axes
  • multiple Z axes
  • extended height gantry clearances
  • numerous inputs and outputs
  • without electronics and/or motors (use your own)
  • etc...
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Every EuroMod Gantry Table is equipped with brushless servomotors
  • 3-Axis Gantry Table with the option of adding a 4th & 5th rotary axis or multiple Z axes
  • All axes are ball screw driven for smooth accurate motion without backlash or wear

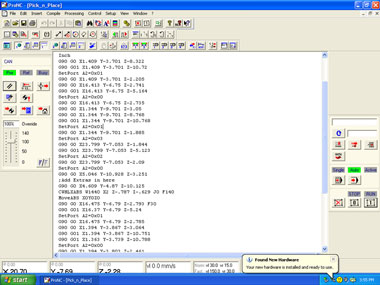

  • Standard with controls, I/O, cabling and ProNC software
  • Three model sizes available, ready-to-use upon delivery
  • T-slot table top for easy clamping of work piece and accessories

Extra Images

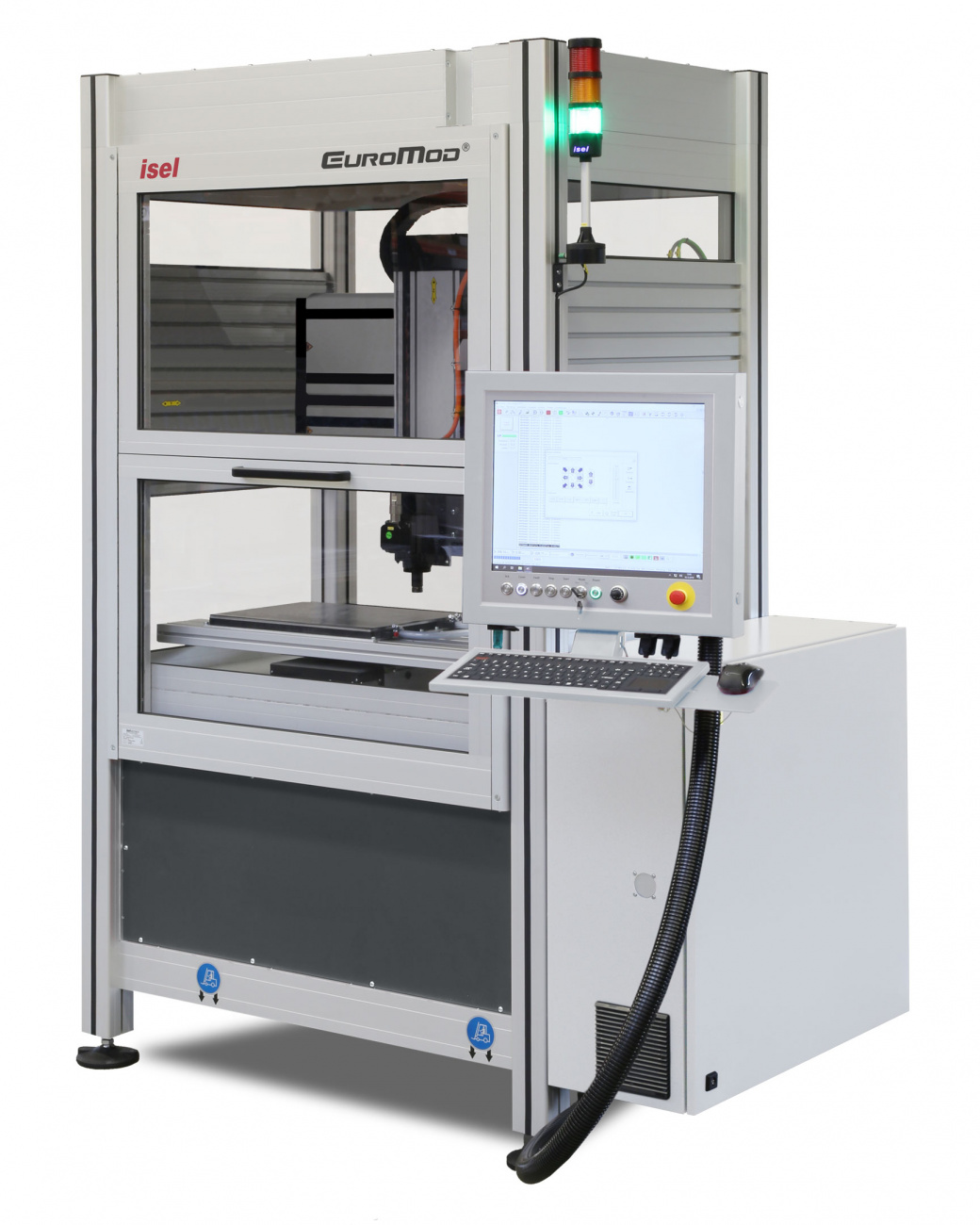

Euromod Cartesian Gantry Robot
  EuroMod MP 30 EuroMod MP 45 EuroMod MP 65
Processing areas X/Y/Z [mm] *  610 / 300 / 300  610 / 470 / 300  910 / 650 / 300
Bench clamping area W × D [mm]  900 x 350  900 x 500  1,200 x 700
Gap [mm] *  365
Dimensions WxDxH [mm]  1,200 x 840 x 2,118  1,200 x 1,150 x 2,118  1,520 x 1,550 x 2,118
Processing speed X/Y/Z  max. 250 mm/s
Repeat accuracy [mm]  ± 0.02
Drive motors  Brushless Servo motors
Drive elements X/Y/Z  Recirculating ball screw drive, adjustable for no play on all axes
Controller iMD CAN controller with 3 or 4 drive controllers, expandable to 12 axes (max. 6 interpolated & 6 handling axes), PC, I/O module, safety circuit with rest state monitoring, power supply unit 48V/1000 W
Operation  Control panel iOP-19-TFT
Software  Windows, WinRemote (optional: ProNC, isy 2.8)
Connection values  230V, 16A
Weight (kg)  approx. 350 approx. 400 approx. 500
Part no.  278010 363443 278011 363443  278012 363443
* without mounted components on the axes !
