Stepper Motor Microstep Driver

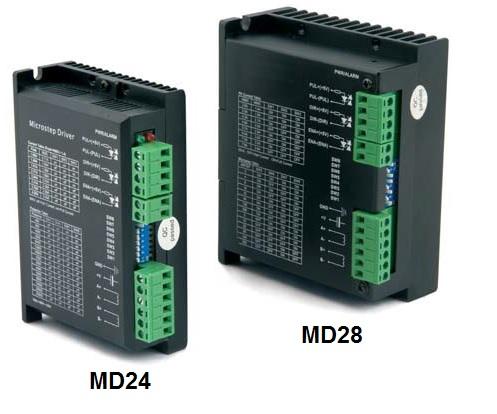

  • MD24 and MD28 Stepper Drivers
Click image to enlarge
  • For 2 or 4 phase hybrid step motors
  • MD 24 1 - 4.2 amp / phase
  • MD 28 2.8 - 7.8 amp / phase
  • Max supply voltage MD 24 - 50VDC, MD 28 80 VDC
  • MD24 is 118 x 75.5 x 33mm
  • MD 28 is 119 x 97 x 48mm
  • Ambient Temp 0°c - 50°c, Max 70°c
  • Takes pulse, direction & enable signals
  • Standby current can be set to full or 50%
  • Current is dip switch selectable
  • Resolution is dip switch selectable from 2 to 125 microsteps/step
  • Well protected against short to GND and between phases
