LEZ1G Belt Actuator

  • LEZ1G Belt Actuator
Click image to enlarge

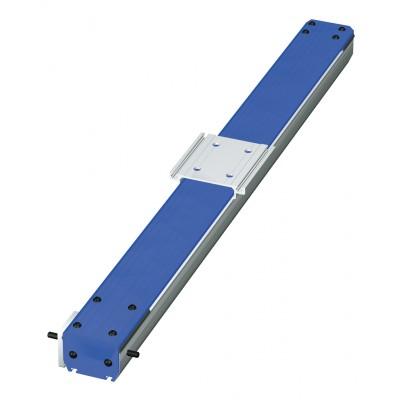

LEZ1G Belt Actuator for moderately priced, for moderate loads. The drive belt is protected by aluminum cover.
  • Runs on LFS-8-1 low profile rails for a compact cross section
  • Play free positioning with 15mm wide timing belt drive
  • Speeds up to 2.4m/sec
  • Repeatability of ± 0.2 mm
  • Limit switches at both ends of travel
  • Switch repeatability < 0.1mm
  • Lengths up to 2.05 m with travel up to 1743mm
  • Drive shaft extends out on both sides
    • motor can thus be mounted on either side
    • H frame drive can easily be made with optional transmission bar
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Add To Quote
  • Speeds up to 2.4 meters/second with appropriate motor and driver
  • Repeatability: ±0.2mm (±.008in.)
  • Standard lengths up to 2 meters
  • Limit Switches at both ends of travel are included
  • 15mm wide reinforced HTD belt
  • CAD drawings available for download
  • Complete Electronics Package Available to Complete your Application
  • Lead is 48mm
LEZ 1G Blue Line
Shaft slide WS 1
C0  4590 N
C  2390 N
F1 static  3920 N
F1 dynamic  2041 N
F2 static  4590 N
F2 dynamic  2390 N
Mx static  55.0 Nm
My static  148.1 Nm
Mz static  173.4 Nm
Mx dynamic  28.6 Nm
My dynamic  77.1 Nm
Mz dynamic  90.2 Nm
