16x16 mm Extrusion Enclosure Corner Profile

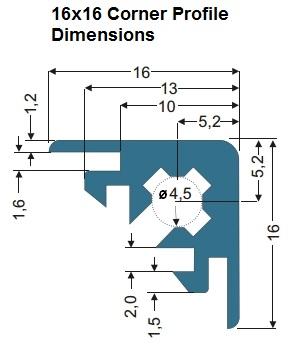

  • 16x16mm Corner Profile Extrusion Dimensions

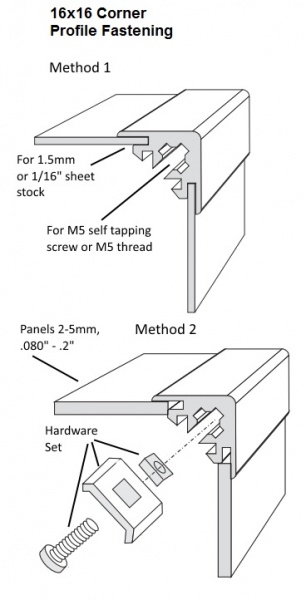

  • 16x16mm Corner Profile Extrusion Fastening Methods

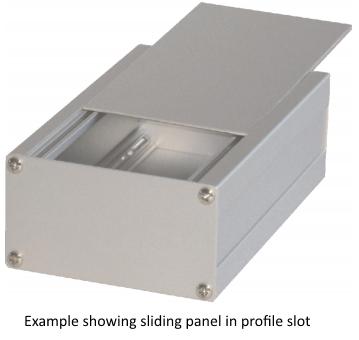

  • Corner Profile Example with sliding panels

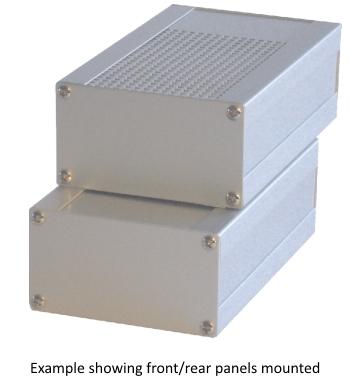

  • Corner profile sliding panel example
Click image to enlarge
  • Just add aluminum side panels and make an enclosure of whatever size and length you need!
  • This enclosure profile is made of clear anodized extruded aluminum.

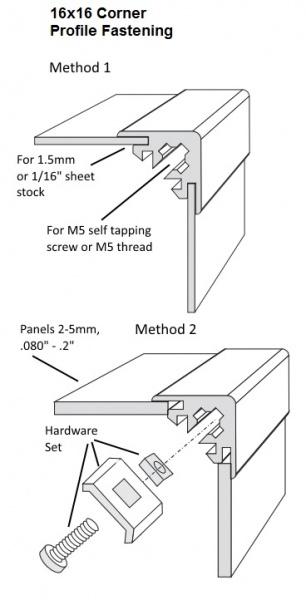

2 Methods for Making Instant Enclosures:

Two slots are provided to insert 1.5 mm thick aluminum sheet stock or 1/16" aluminum sheet stock
Panels are held in place by End CAPS screwed into corner extrusion profile
16x16mm Corner Extrusion Sliding Panel Method
Hardware set can be used to hold aluminum panels from 2 to 5mm thick against the extrusion (see photos) or .080"-.200" thick
END CAPS would finish the enclosure but would not be needed to hold clamped panels in place.
Hardware Set-Used to hold panels in slots
  • Channels in the profile corner are designed to be used with M5 self-tapping screws or tapped with an M5 thread for holding front and rear enclosure panels.
  • This profile is used to construct enclosures for mechanical or electrical components.
  • Available in 1, 2 or 3 m lengths
  • We can custom cut to any length up to 3m for a small charge
  • Profile weight is .26Kg/m
  • 16x16 Enclosure Profile DXF
  • 16x16 Enclosure Profile DWG
