PT 50 Aluminum Extrusion Table Plate

  • PT 50 Aluminum Extrusion Table Plate

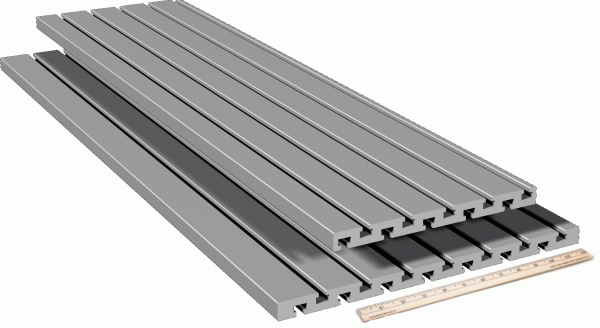

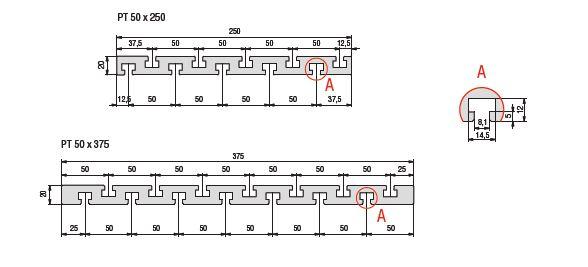

  • PT 50 Aluminum Extrusion Table Plate Drawing
Click image to enlarge

The PT50 ALuminum Extrusion Table Plate is 20mm thick.
Available in widths of 250mm and 375mm.
T slots on both sides - they can be fastened without drilling and tapping
ALSO available with T slots on one side

Both sides are machined flat.
Available in standard lengths of 250mm to 3000mm in 250mm increments.
Custom cut lengths available for a nominal cut charge.
Compatible T nuts at TYPE 1 and TYPE 2
Click here for Universal Robot Adapter Mounting Plates
It can be used for very flat and precise work surfaces for many automation applicaitons including...
Fixture surfaces
CNC machine tables
Assembly fixtures
Robot stands
Testing and Measurement
Inspection
These extrusions can be used as table tops for CUSTOM WORKBENCHES or ROBOT work tables
For CUSTOM SIZED Workbenches and Robot work tables CLICK HERE and tell us what you need.
For a list of T Nuts and clamping accessories, see Robot Accessories and T-Nuts.

  Size (mm) kg/m Moment
of
Inertia
Ix (cm4)
Moment
of
Inertia
Iy (cm4)
PT Table Plate 20x250 Dimensions 20x250 10.0 2063 13.9
PT Table Plate 20x375 Dimensions 20x375 14.8 6746 20.7

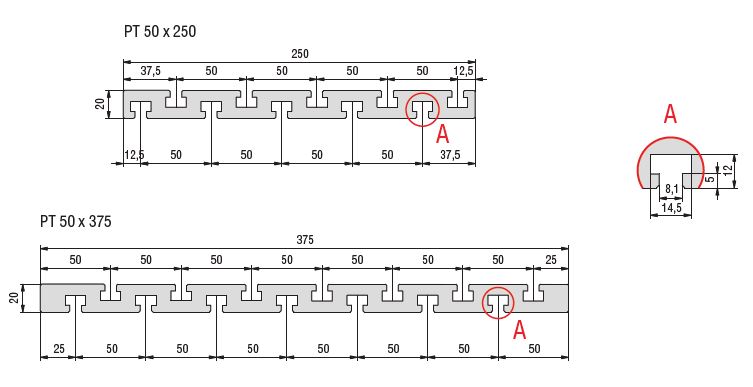

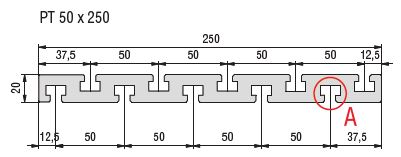

PT Table Plate T Slot Dimensions

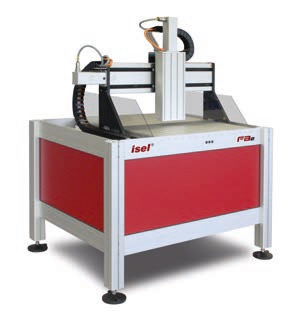

PT Table Plate T Slot Dimensions                Instant Automation With Our Flatbed Gantries


Flatbed Gantry Available in 6 sizes
See our full line of
Cartesian Gantry Robots



Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Universal precision , clampimg and machining surface
  • Produced to Din EN 12020-2
  • Milled flat on both sides
  • For use with any machine
  • Thick Walled, distortion-free and extremely form-retaining
  • Available up to 3 m length

T-Slot Aluminum Extrusion Table Plates PT 50
  PT 50
Dimensions (W × H)  250 x 20 mm  375 x 20 mm
Length  up to 3 metres (special lengths upon request)
Weight  approx. 10.0 kg/m  approx. 14.8 kg/m
T-slots  both-sides in 50 mm raster
Moment of inertia Ix  2062.99 cm4  6745.96 cm4
Moment of inertia Iy  13.85 cm4  20.63 cm4
Moment of resistance Wx  165.04 cm3  359.78 cm3
Moment of resistance Wy  13.85 cm3  20.63 cm3
