Bearing Carriages for LFS-8-1/LFS-8-2 Rails

  • WS1 Bearing Carriage (126mm L)
  • WS1/70 bearing carriage (96mm L)
  • LW6 Roller Carriage

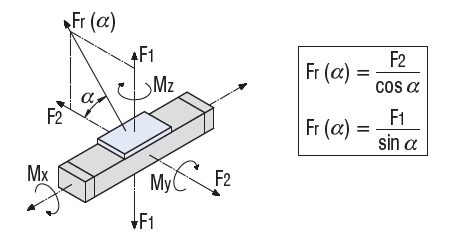

  • Moment and Force Loads Legend
  • WS1/70 Stainless Bearing (96mm L)
  • WS1 Stainless Bearing (126mm L)
Click image to enlarge
These carriages will fit the LFS 8-1 or LFS 8-2 rails.

Available in
  • short (76mm L) WS1/70, regular steel or stainless, bearing carriage
  • long (126mm L) WS1, regular steel or stainless, bearing carriage
Also available as a sealed roller carriage LW6- ideal for dusty environments.


LFS 8-1 / LFS 8-2 Specifications

Shaft slide WS 1/70   Shaft slide WS 1   Trolley LW 6
C0  3114 N   C0  4590 N   C0  2160 N
C  1846 N   C  2390 N   C  4000 N
Fstatic  2659 N   Fstatic  3920 N   Fstatic  4320 N
F1 dynamic  1576 N   F1 dynamic  2041 N   F1 dynamic  3792 N
Fstatic  3114 N   Fstatic  4590 N   Fstatic  2160 N
F2 dynamic  1846 N   F2 dynamic  2390 N   F2 dynamic  4000 N
Mx static  37.3 Nm   Mx static  55.0 Nm   Mx static  121.1 Nm
My static  100.5 Nm   My static  148.1 Nm   My static  194.4 Nm
Mz static  117.6 Nm   Mz static  173.4 Nm   Mz static  97.2 Nm
Mx dynamic  22.1 Nm   Mx dynamic  28.6 Nm   Mx dynamic  106.3 Nm
My dynamic  59.5 Nm   My dynamic  77.1 Nm   My dynamic  170.6 Nm
Mz dynamic  69.7 Nm   Mz dynamic  90.2 Nm   Mz dynamic  180.0 Nm
