Carriages for the LFS-8-2 rails

  • WS1 Bearing Carriage
  • WS1/70 bearing carriage
  • WS1/70 bearing carriage

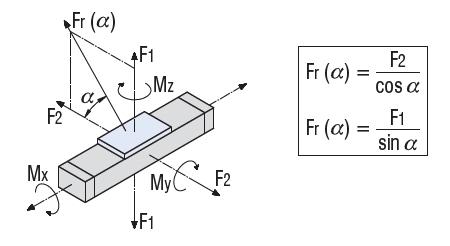

  • Force Moment
  • WS1/70 Stainless Bearing
  • WS1 Stainless Bearing
Click image to enlarge
These carriages are compatible wit the LFS-8-2 rails.


LFS 8-1/ LFS 8-2 Specifications

Shaft slide WS 1/70   Shaft slide WS 1   Trolley LW 6
C0  3114 N   C0  4590 N   C0  2160 N
C  1846 N   C  2390 N   C  4000 N
F1 static  2659 N   F1 static  3920 N   F1 static  4320 N
F1 dynamic  1576 N   F1 dynamic  2041 N   F1 dynamic  3792 N
F2 static  3114 N   F2 static  4590 N   F2 static  2160 N
F2 dynamic  1846 N   F2 dynamic  2390 N   F2 dynamic  4000 N
Mx static  37.3 Nm   Mx static  55.0 Nm   Mx static  121.1 Nm
My static  100.5 Nm   My static  148.1 Nm   My static  194.4 Nm
Mz static  117.6 Nm   Mz static  173.4 Nm   Mz static  97.2 Nm
Mx dynamic  22.1 Nm   Mx dynamic  28.6 Nm   Mx dynamic  106.3 Nm
My dynamic  59.5 Nm   My dynamic  77.1 Nm   My dynamic  170.6 Nm
Mz dynamic  69.7 Nm   Mz dynamic  90.2 Nm   Mz dynamic  180.0 Nm
