16mm Diameter Flange Ball Nut

  • Flange Ball Nut
  • Flange Ball Nut Dimensions
  • Flange Ball Nut Dimensions
Click image to enlarge
  • 16mm Diameter Flange Ball Nut offers a simple and low cost anti-backlash design
  • Used on Standard Duty slides and DaVinci CNC machines
  • Patented anti-backlash steel design
  • Repeatability of 0.01 mm
  • Accuracy of 0.1 mm/300mm
  • Ball Nut & Mount one piece design
  • Adjustable Anti-backlash design
  • Available in 4, 5, 10 and 20mm pitch for 16mm diameter screws ONLY

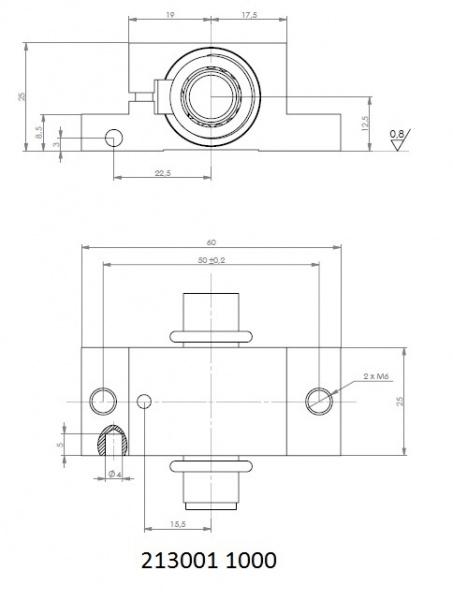

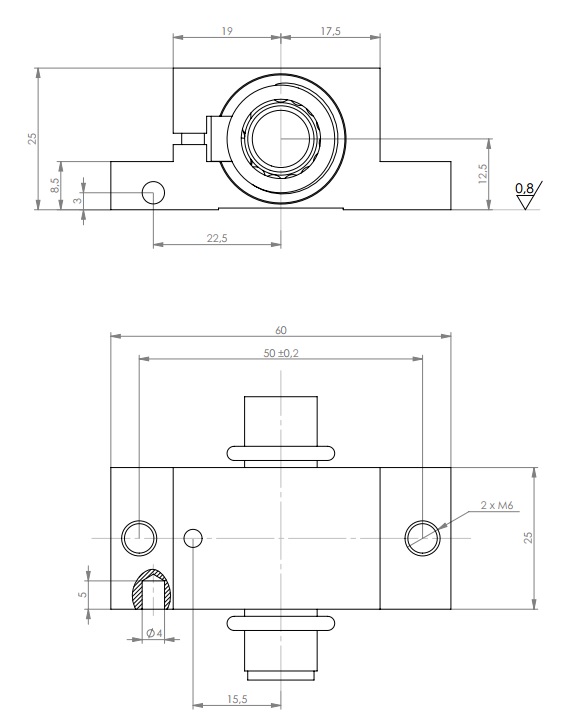

16mm Diameter Flange Ball Nut 4 and 5mm Pitch Dimensions
Flange Ball Nut Dimensions for 4 and 5mm pitch

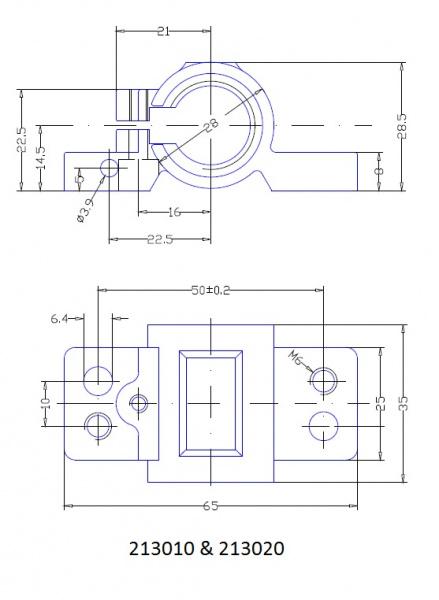

16mm Diameter Flange Ball Nut 10 and 20mm Pitch Dimensions
Flange Ball Nut Dimensions for 10 and 20mm pitch
