Sub-header

UR Adapter Mounting Plates

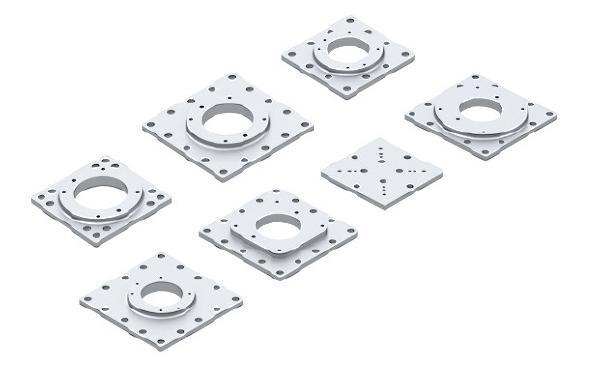

  • UR Robot Mounting Plates
Click image to enlarge
  • Easily mount a UR Cobot to Isel Workbench or extrusion table plates
  • Made of clear anodized aluminum
  • Mounting hardware included with mounting plate
  • Locating pins supplied with all mounting plates EXCEPT the universal mounting plate
Click here to SELECT MODEL for QUOTE
Universal Robot Model Drawing

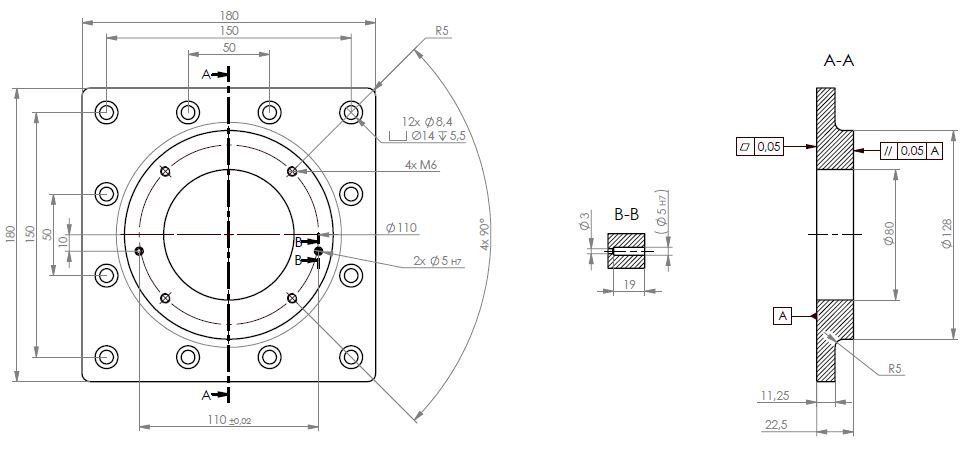

UR3, UR3e, mounting plate
Click to download STEP model

UR5, UR5e mounting plate

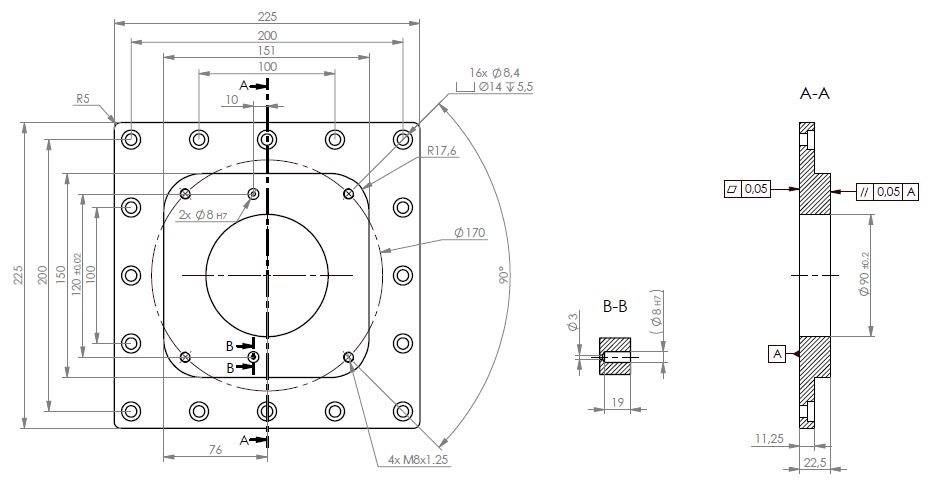

UR10, UR10e, UR16e mounting plate

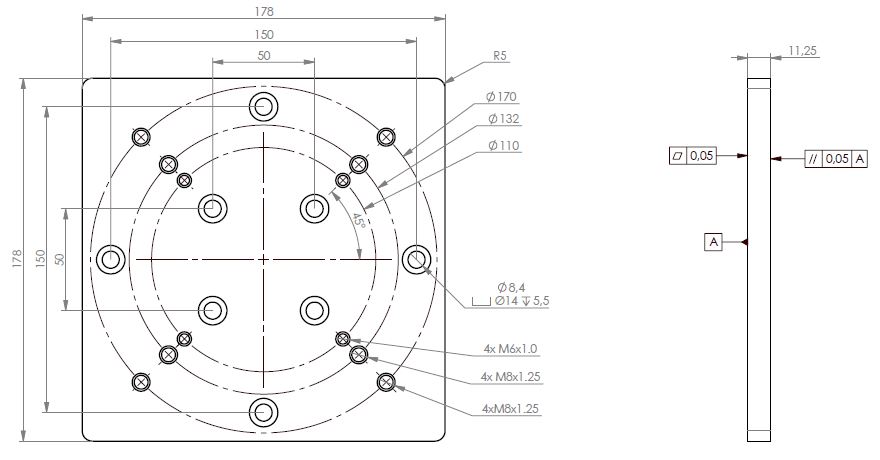

Universal mounting plate for all UR models

Select Model and "click" Add To Quote
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote


Have an Application Question? Ask Our Knowledgeable Engineers Today!

Contact Us
