Flatcom Flatbed Automation System

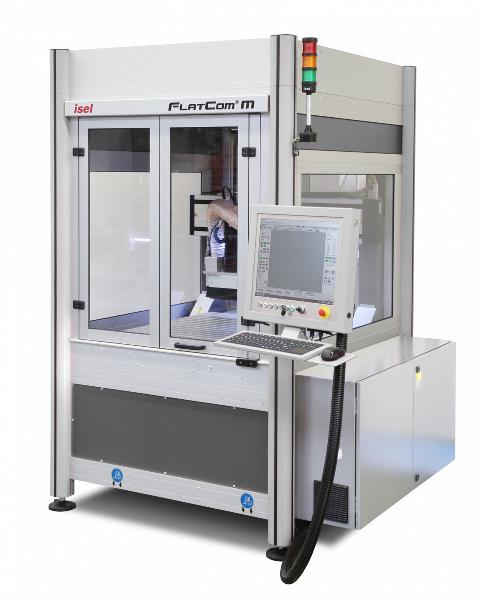

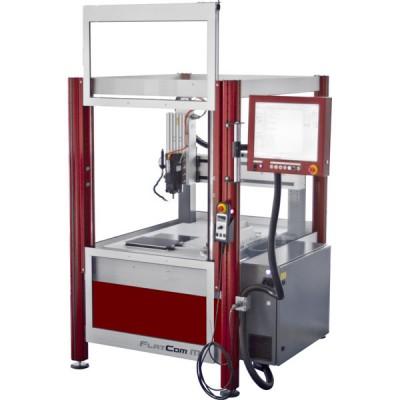

  • Flatcom M30 Cartesian Robot

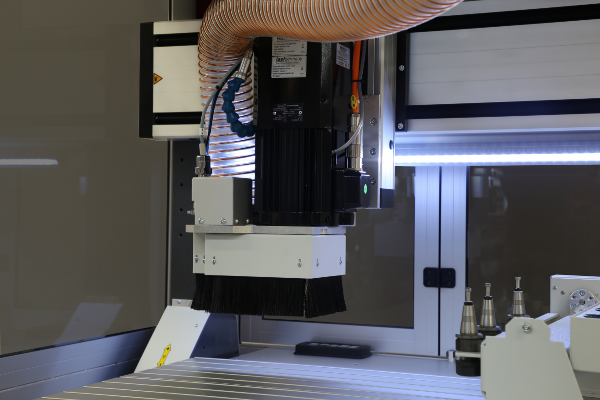

  • Flatcom M30 with iSA 2200 spindle

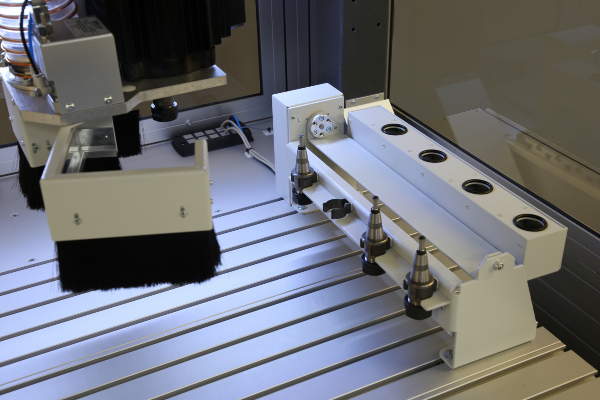

  • Flatcom M30 with tool change
Click image to enlarge
Flatcom Series machines are a general automation platform.
  • They come complete with mechanics, motors, controls, cabling, a stand and safety enclosure with either a safety interlock or optional light curtain.
  • Travels range from 710mm x 750mm to 1210mm x 1250mm on the M Series.
  • Travels on the L Series are 1500mm x 1700mm and 2500mm x 1700mm.
  • Available in XY, XYZ. Standard machines come with 3 axis but can be custom built to include up to 5 axis.
  • Flatcoms include electronics all wired in an industrial cabinet as well as an IPC25 industrial embedded PC with WIN 10. There is a swing arm that houses a flatpanel touch screen with keyboard and mouse.
  • Gantry clearances of 250mm and 350mm on the M Series
  • Gantry clearances of 270, 370 and 470mm on the L Series
  • Z axis travel can be 210 or 310mm on the M Series.
  • Z axis travel can be 210, 310 or 410 on the L Series
  • Available without electronics for OEM applications

Applications include:
Inspection, welding, milling, pick and place, dispensing, assembly,



Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • All axes are ball screw driven for smooth accurate motion without backlash or wear
  • Accuracy : ± 0.1 mm / 300 mm (± .004 in / 12 in)
  • All axes provided with home reference switch and far end limit switch with ±0.01 mm (±.0004 in) repeatability
  • Optional 4 and 5 axis avaiable
  • Ideal for multi-shift operation

FLATCOM M Series
  Flatcom M20 Flatcom M30 Flatcom M40 Flatcom M50
Processing areas X/Y [mm] *  710 / 500  710 / 750  1,210 / 750  1,210 / 1,250
Z lift [mm]  210 (optional 310, in each case without processing unit)
Bench clamping area W x D [mm]  800 x 750  800 x 1,000  1,300 x 1,000  1,300 x 1,500
Z gap [mm] *  250 (optional 350,in each case without processing unit)
Dimensions WxDxH [mm]  1,275 x1,175 x1,920  1,275 x1,475 x1,920  1,775 x1,475 x1,920  1,775 x1,975 x1,920
Processing speed X/Y/Z max.  250 mm/s
Repeat accuracy [mm]  ± 0.02
Drive motors  Servo motors
Drive elements X/Y/Z  Recirculating ball drive, adjustable for no play
Controller iMD CAN controller with 3 drive controllers, expandable to 12 axes (max. 6 interpolated & 6 handling axes), PC, I/O module, safety circuit with rest state monitoring, power supply unit 48 V / 1000 W
Operation  Control panel iOP-19-TFT
Weight (kg)  approx. 590  approx. 670  approx. 770  approx. 820
Software  Windows, WinRemote (optional: ProNC, isy 2.8)
Connection values  230V, 16A  400V, 16A
Part-no. (Z lift = 210 mm)  278000 252443 278001 252443  278002 252443  278003 252443
Part-no. (Z lift = 310 mm)  278000 353443  278001 353443  278002 353443  278003 353443
* without mounted components on the axes !
