PS50, PS80 Structural Aluminum Profiles

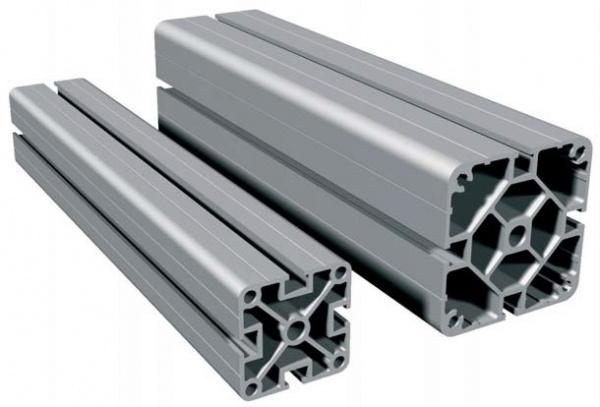

  • PS 50 and PS 80 Structural Aluminum Extrusion Profiles

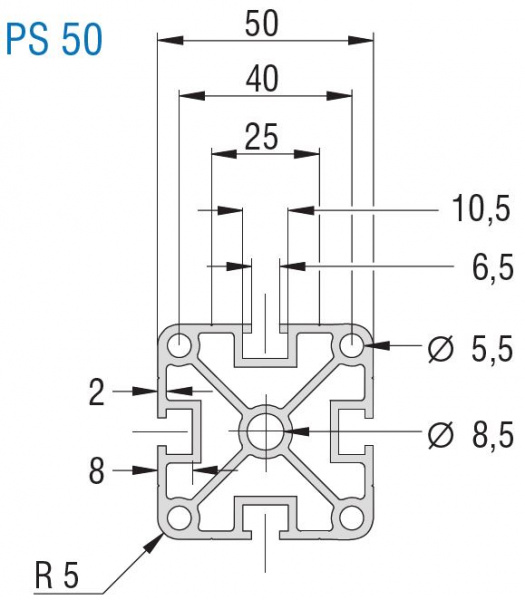

  • PS50 Aluminum Profile Drawing
Click image to enlarge
  • These aluminum profiles are designed for quick and easy frame structure construction, safety enclosures, racks, etc.
  • Suitable for high loads
  • The T slots take a variety of T nuts and leveling feet, castors and other accessories
  • The clear anodized finish provides good looks and protection.
  • Available in 3m lengths or cut to 250mm increments as standard
  • Custom lengths available for a small cut charge
  • NOTE: Center holes can be tapped for levelling feet or castors
    • Holes at corner of extrusion can be tapped for M6 thread
    • Center of PS 50 can be tapped for M10 thread
    • Center of PS 80 can be tapped for M12 thread
  • These extrusions use the T nuts for Structural Profiles
PS Structural Profile Properties
  size (mm) Wt (kg/m) Ix cm4 Iy cm4

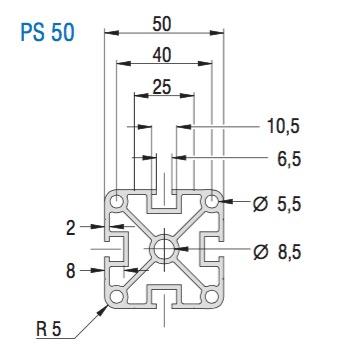

PS50 Dimension Drawing 50x50 2.3 22.1 22.1

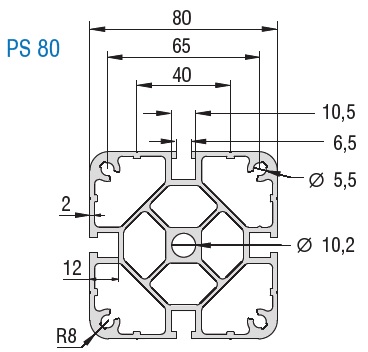

PS80 Dimension Drawing 80x80 4.5 111.8 111.8
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Light, compact and stable
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Available up to 3 m length
  • Option - Power Coatings

Stand Profiiles PS 50
  PS 50
Dimensions (W × H) 50 x 50 mm
Length up to 3 metres (special lengths upon request)
Weight approx. 2.3 kg/m
  4 T-key inserts for M6 sliding nuts
4 cavity inserts, Ø 5.5 mm for M6
Cavity insert, Ø 8.5 mm for M10
Moment of inertia Ix 22.06 cm4
Moment of inertia Iy 22.06 cm4
Moment of resistance Wx 8.82 cm3
Moment of resistance Wy 8.82 cm3
