Sealed Belt Drive Actuator

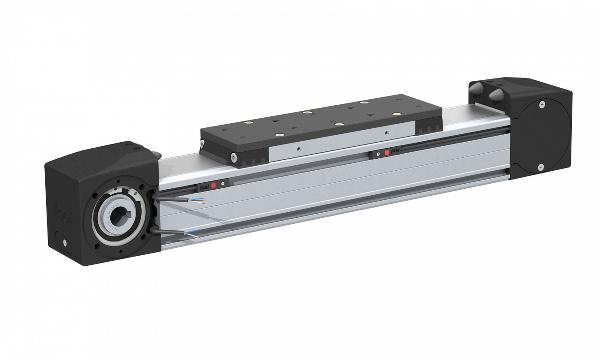

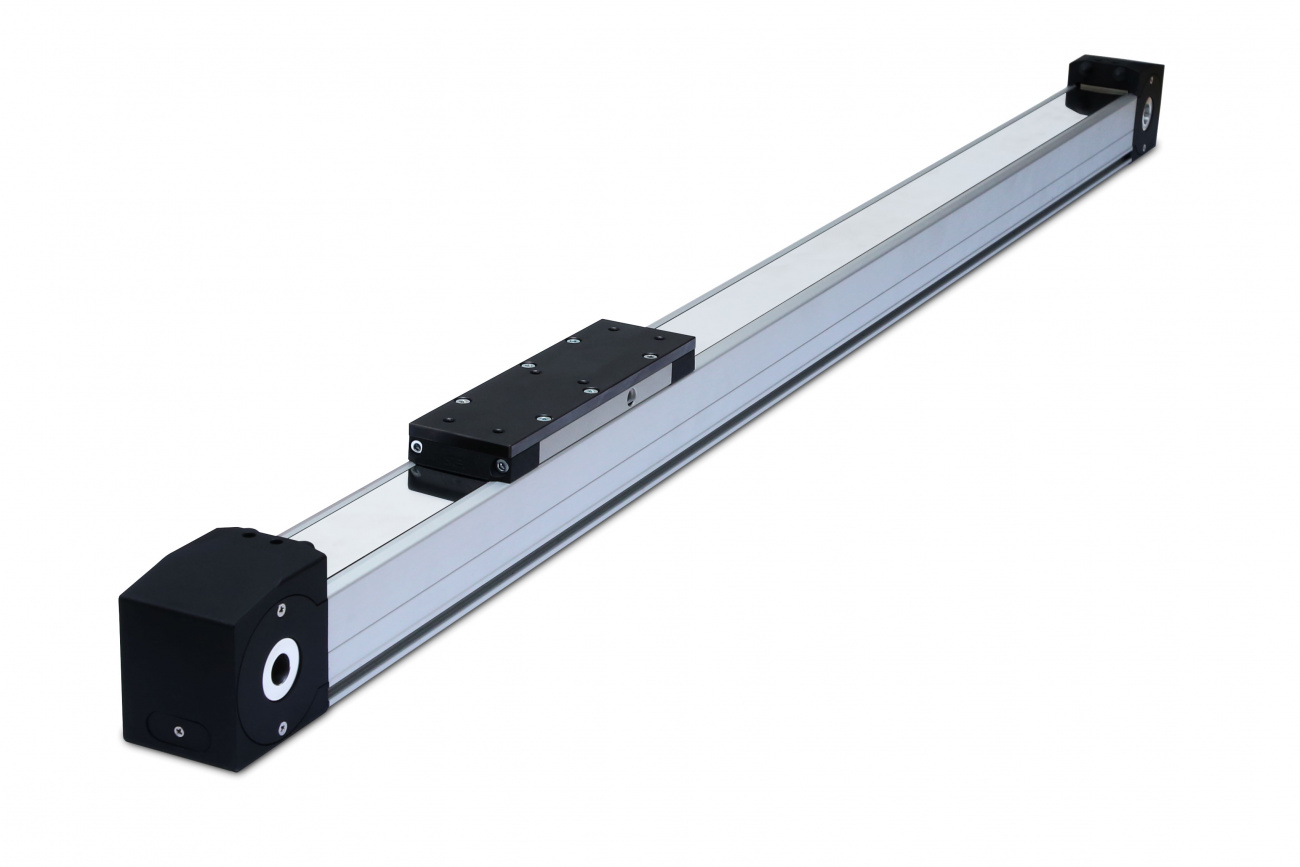

  • LEZ 4G Belt Actuator

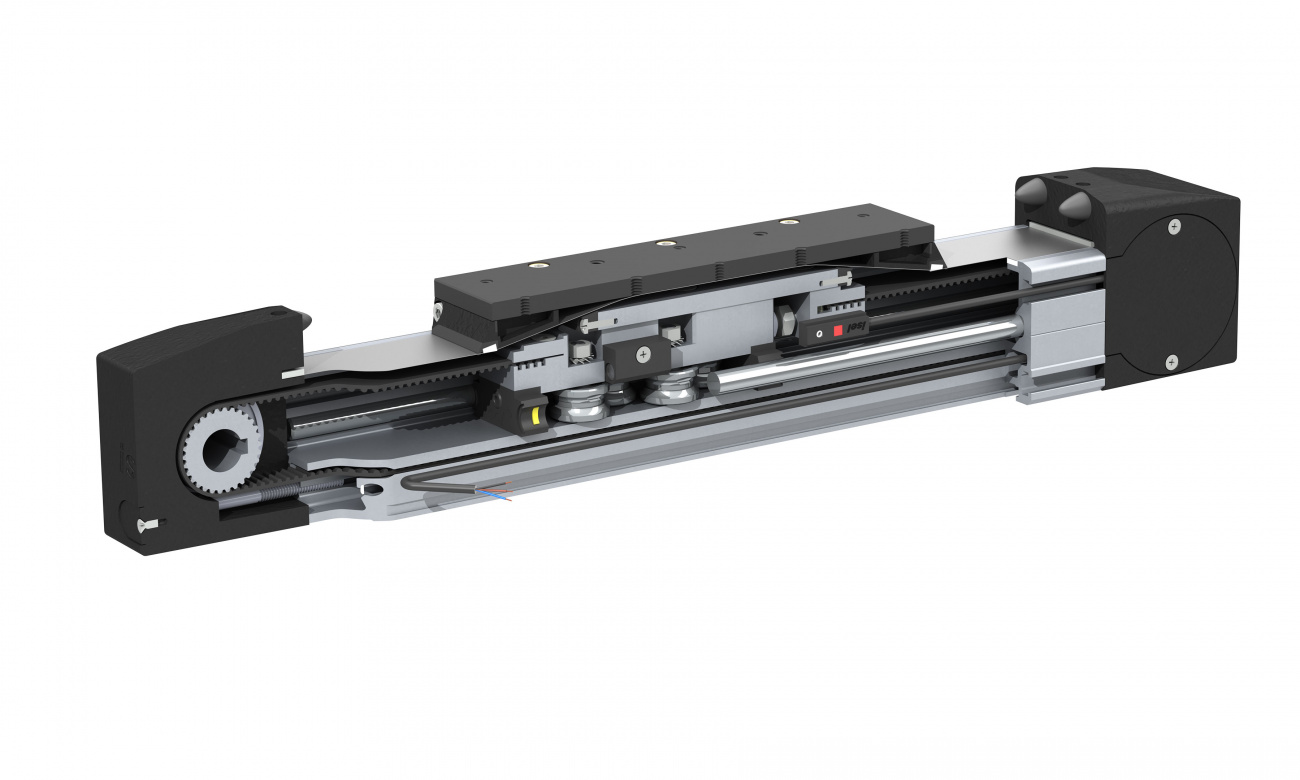

  • LEZ 4G Belt Actuator Cut Away

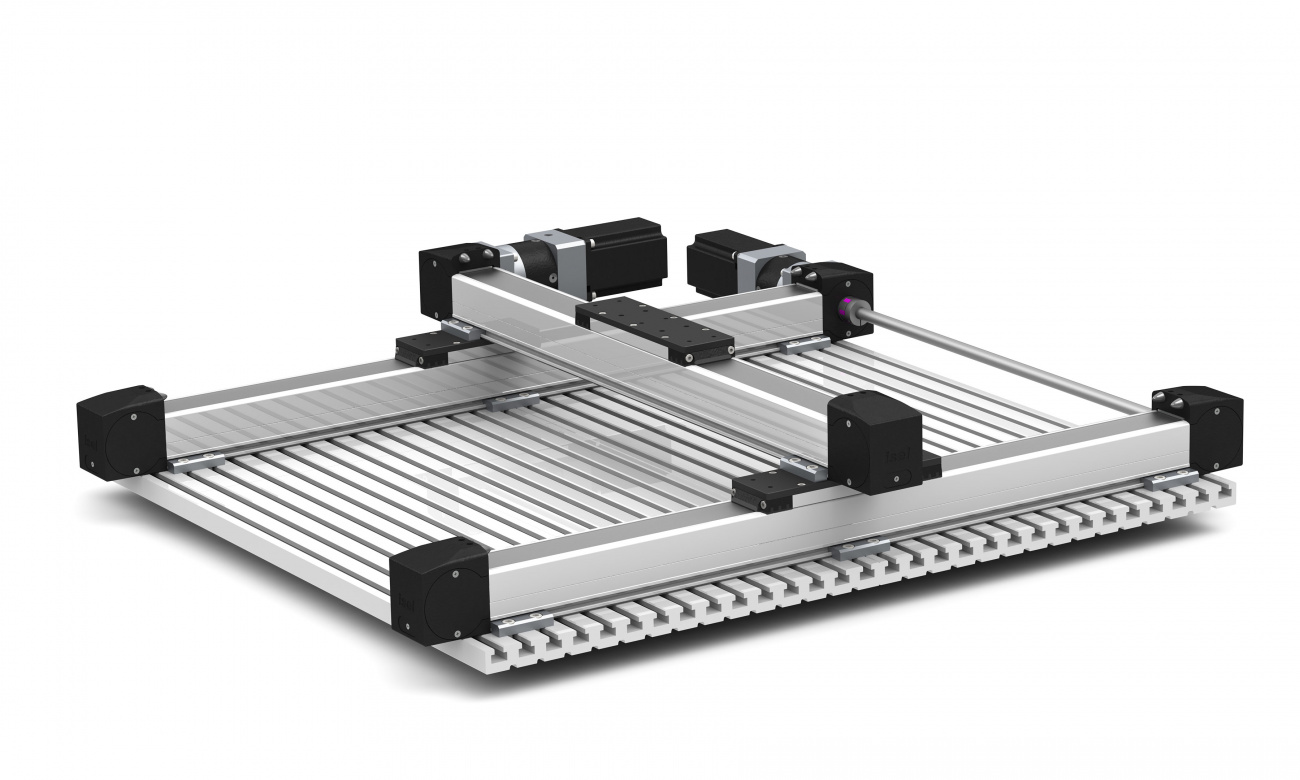

  • LEZ 4G Belt Actuator XY Table

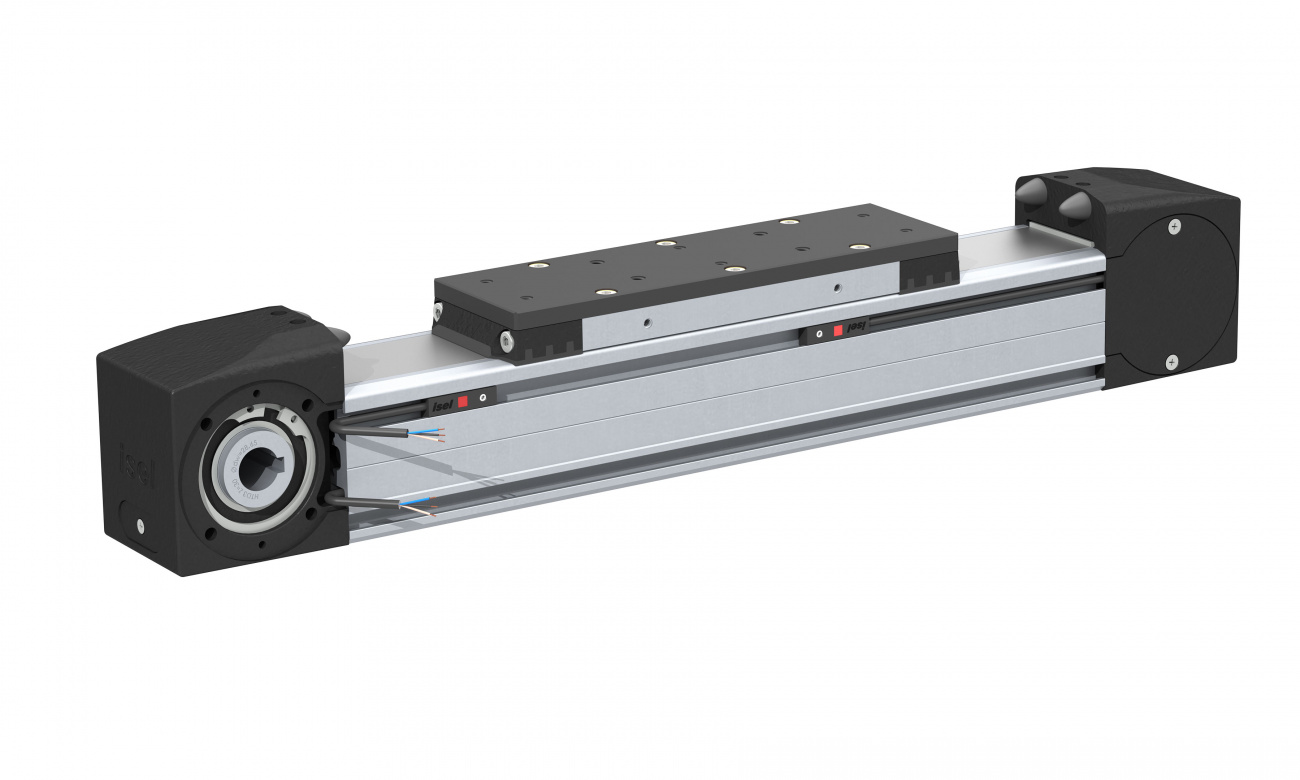

  • LEZ 4G Belt Actuator with Limit Switches

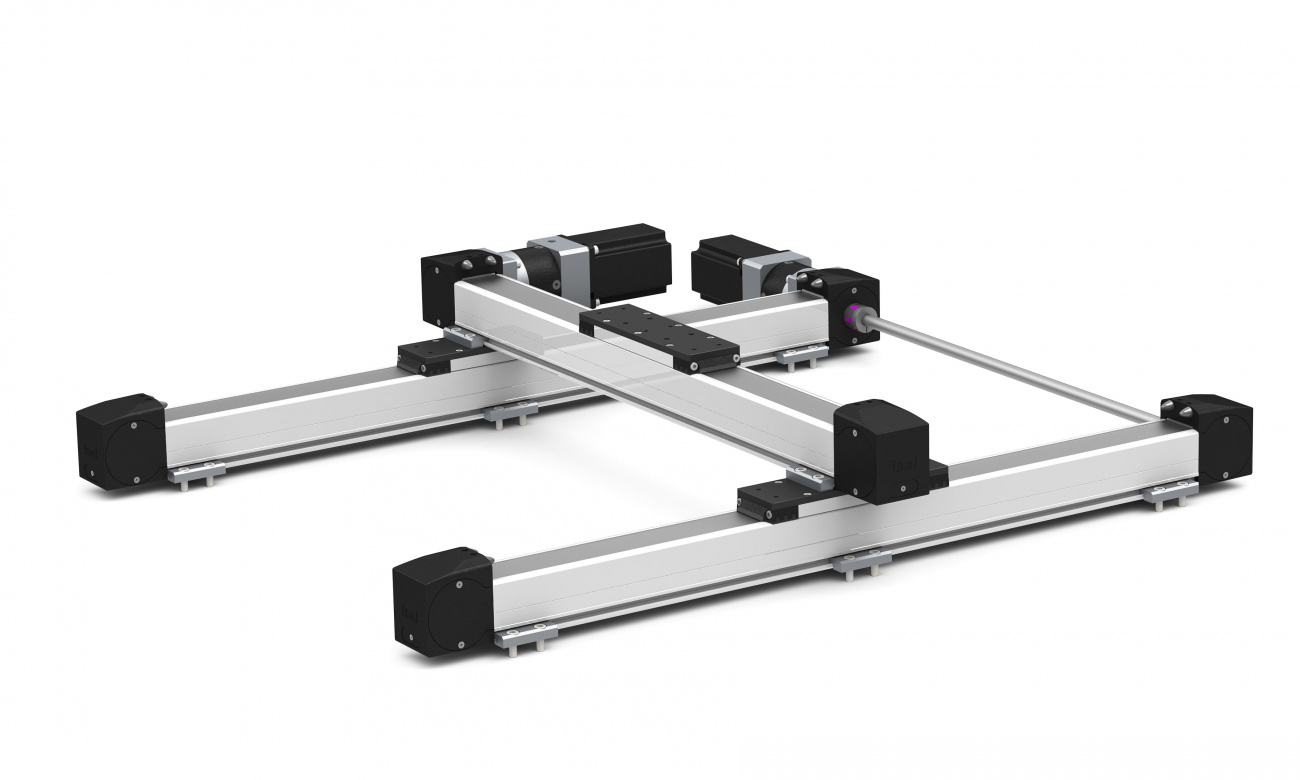

  • LEZ 4G Belt Actuator XY Table no base plate
Click image to enlarge

A sealed drive belt actuator is an innovative solution for precise and reliable motion control in challenging environments. Designed to resist dust, debris, and contaminants, this system ensures exceptional durability and long-term performance. Unlike traditional systems, a belt-driven actuator offers smooth and efficient operation, making it ideal for applications requiring speed and accuracy.

For those seeking versatility, our belt-driven linear actuator provides unparalleled adaptability across a wide range of industries, from manufacturing to robotics. Our sealed belt-driven actuator delivers superior protection and dependability, specifically crafted to thrive in demanding conditions. By choosing our products, you benefit from cutting-edge designs, rigorous quality standards, and exceptional customer support, ensuring that your solutions exceed expectations every time. Contact us today and order a sealed drive belt actuator for your motion control needs.

  • Stainless steel cover as standard
  • 5 m/sec max speed
  • External ADJUSTABLE limit switch sensors as standard
  • Standard lengths up to 3 meters
  • Feed per revolution is 90mm
  • Gearboxes available
  • Direct motor connection via hollow shaft
  • Motor connection for 60mm flange
  • Special lengths upon request
  • Belt type HTD 3M, 20mm width
