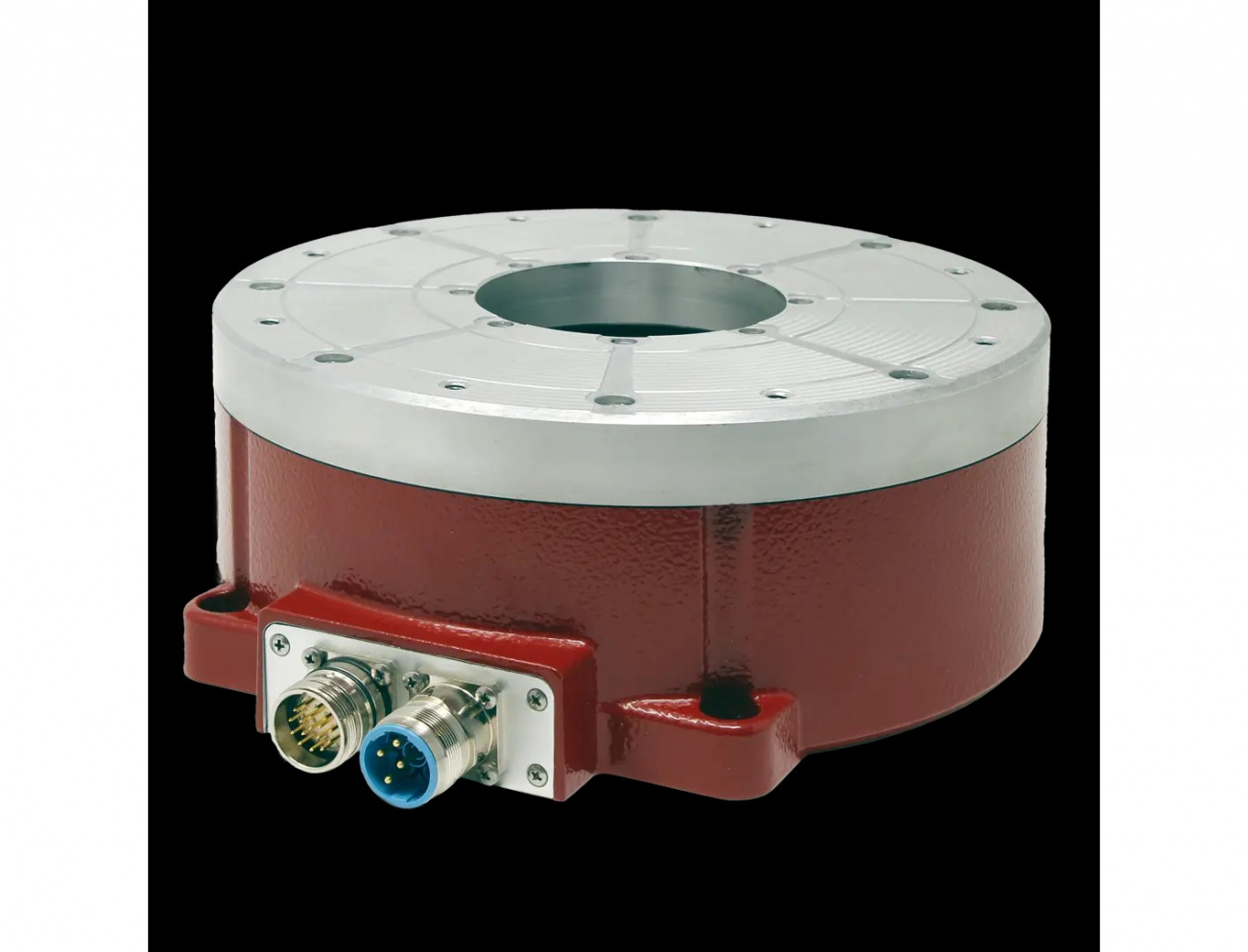

iTM 180 Torque Motor
The iTM 180 torque motor is the ideal solution for applications requiring high torque from zero speed. By eliminating the need for a gearbox, this motor boasts a particularly compact design while delivering backlash-free, robust, and maintenance-free performance. The motor's smooth operation also ensures trouble-free performance.
Energy efficiency is paramount with this product: The iTM 180 torque motor boasts low losses, making it exceptionally environmentally friendly. The fully assembled housing allows for easy integration into your systems. Thanks to the hollow shaft, media can be easily routed through it, while convection cooling ensures optimal temperature control. An integrated measuring system guarantees precise monitoring and control of your processes.
The iTM 180 torque motor meets the highest safety and quality standards, tested according to EC 73/23/EEC, EN50178 and EN60204.
In addition, we offer you options for customization: Choose an absolute measuring system with BISS-C protocol or opt for a die-cast aluminum clamping plate with a diameter of either 250 mm or 500 mm, depending on your specific requirements.
|
| Add To Quote |
| Torque motorsiTM 180 | |
| intermediate circuit voltage [V] | 48 DC |
| current [A] | 7.4 |
| peak current [A] | 18.5 |
| rated torque [Nm] | 15 |
| peak torque[Nm] | 38 |
| max. speed [rpm.] | 260 |
| rotor interia [kg/cm²] | 85 |
| weight [kg] | 8 |
| axial run-out ± [mm] | 0.05 |
| numbers of poles | 40 |
| permissible static load [kN] | 3.1 |
| permissible dynamic load [kN] | 1.5 |
| winding resistance (phase to phase) [Ohm] | 1.1 |
| protection class | IP40 |
| torque constant [Nm/A] | 2.11 |
| accuracy ± [arc sec] | 270 |
| repeatability ± [arc sec] | 3.5 |
| thermal protection | Optional |
| resolution [increment/rev] | 276000 |
