LFS-12-2

  • LFS-12-2

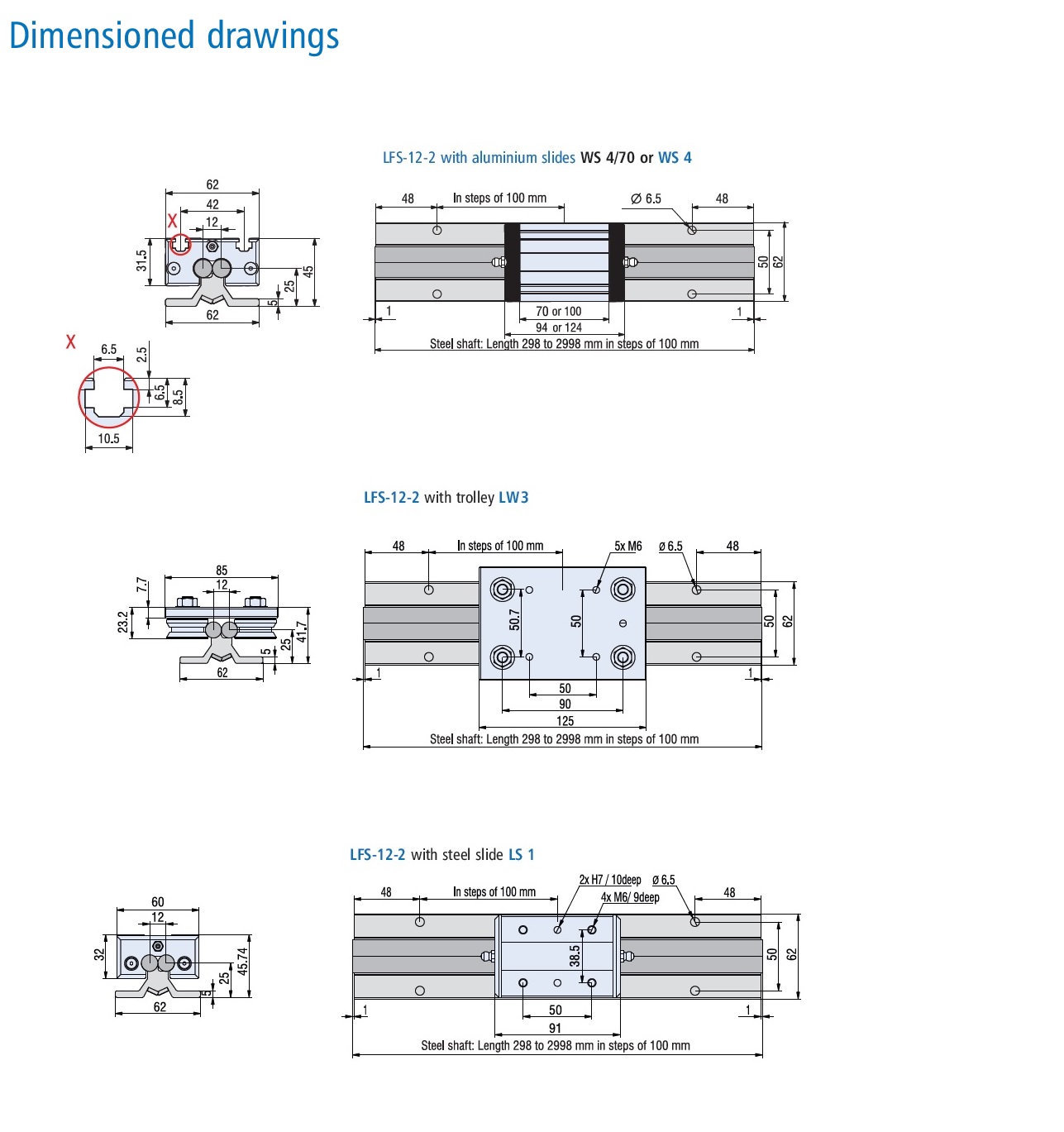

  • LFS 12-2 Dimension Drawing

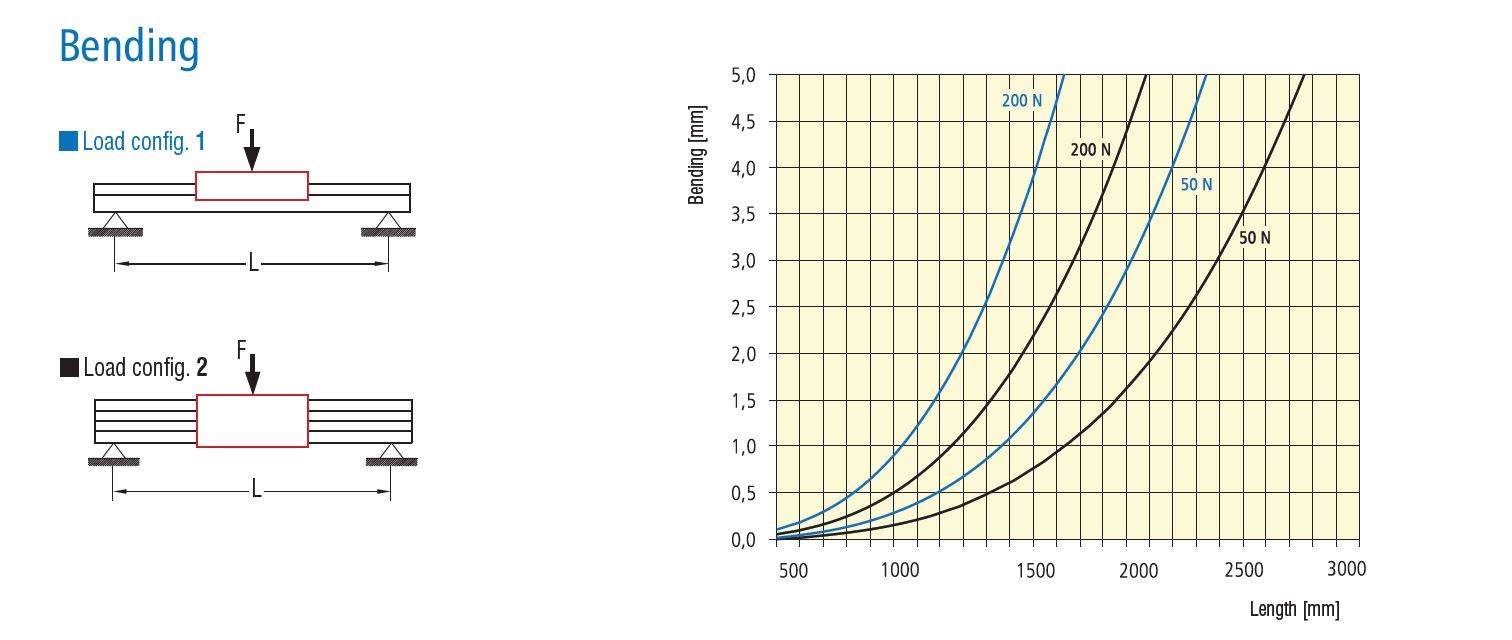

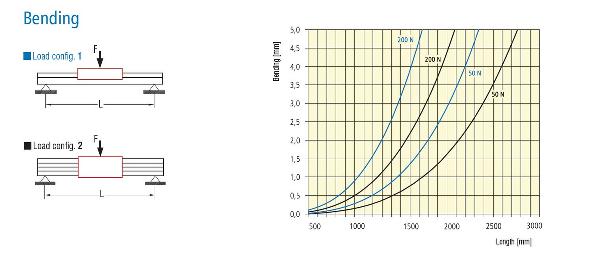

  • LFS 12-2 Bending Drawing
Click image to enlarge

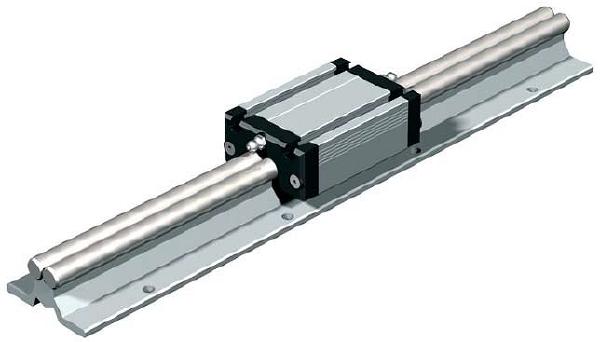

Guide Rails are fully supported uniformly throughout travel range on clear anodized aluminum support profile
Steel shafts are connected and tightened against each other by M5 screws. This produces a precise and rigid rail system ideal for most Linear Motion applications
Guide Rails and Support Profile are sold as assembly in a variety of lengths
Guide rails consist of two precision ground Ø12 mm Cf53 steel shafts, hardened to RC 62 + 2, with M5 threads on 100 mm centers
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum support profile has pairs of mounting holes at 100 mm intervals down the length of the rail system. Each pair of holes is 50 mm apart for easy mounting to our aluminum extrusions (shown in the 'aluminum extrusion' section)
  • Dims: W62 x H31 mm & weight 3.3 Kg/m
  • 2 precision steel shafts 12mm diameter
  • Anti-Twist
  • Aluminium Shaft houisng profile, naturally anodised
  • High parallelism through patented shaft housing outline
  • High Guidance accuracy
  • Special lenghts to order
  • Securing from above or below using drilled holes 6.5 every 100 mm on flat surface

Extra Images


LFS 12-2

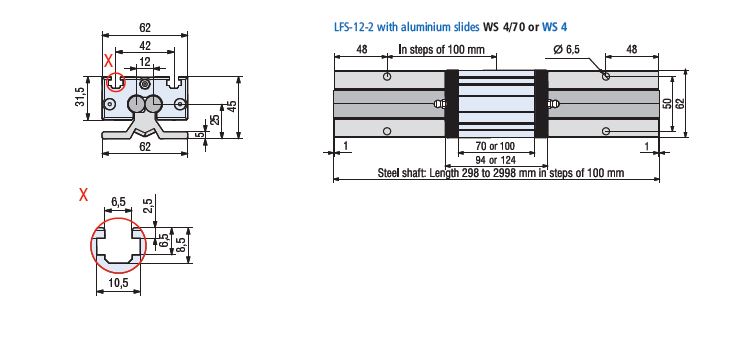

Shaft slides WS 4/70   Shaft slides WS 4   Trolley LW 3
C0 3003 N   C0 4868 N   C0 2160 N
C 1873 N   C 2426 N   C 4000 N
F1 static 2821 N   F1 static 4157 N   F1 static 4320 N
F1 dynamic 1599 N   F1 dynamic 2071 N   F1 dynamic 3846 N
F2 static 3303 N   F2 static 4868 N   F2 static 2160 N
F2 dynamic 1873 N   F2 dynamic 2426 N   F2 dynamic 4000 N
Mx static 29.8 Nm   Mx static 43.9 Nm   Mx static 109.5 Nm
My static 105.3 Nm   My static 155.2 Nm   My static 194.4 Nm
Mz static 123.3 Nm   Mz static 181.7 Nm   Mz static 97.2 Nm
Mx dynamic 16.8 Nm   Mx dynamic 21.8 Nm   Mx dynamic 97.4 Nm
My dynamic 59.7 Nm   My dynamic 77.3 Nm   My dynamic 173.0 Nm
Mz dynamic 69.9 Nm   Mz dynamic 90.5 Nm   Mz dynamic 180.0 Nm
Forced Moment Drawing
