PL40 Aluminum Profile

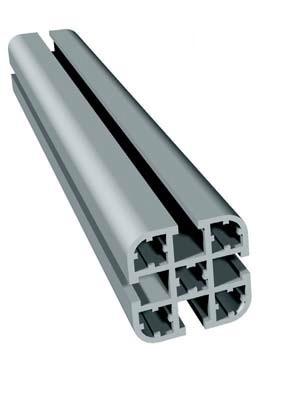

  • PL40 Aluminum Profile

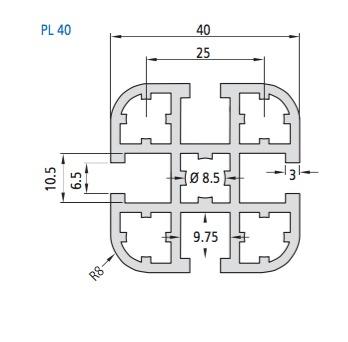

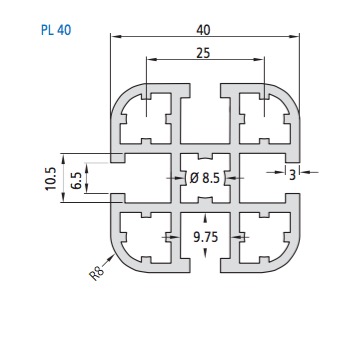

  • PL40 Aluminum Profile Drawing
Click image to enlarge
The PL40 structural proflie is suitable for machine enclosures,framing elements, instrument support platforms and machine stands.
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Structural proflies are made of clear anodized aluminum
  • T-slots are provided on each side of profile
  • Extremely rigid general purpose beam
  • T-slots are designed to use M6 nut or M6 nut strip
  • Five 8.5mm holes at each end of extrusion to used with M10 tapping screws
  • Available up to 3 m length

Light Frame Profiles PL 40
  PL 40
Dimensions (W × H)  40 x 40 mm
Length  up to 3 metres (special lengths to order)
Weight  approx. 1.5 kg/m
  4 T-key inserts for M6 sliding nuts
5 cavity inserts, Ø 8.5 mm for M10
Moment of inertia Ix  8.38 cm4
Moment of inertia Iy  8.38 cm4
Moment of resistance Wx  4.19 cm3
Moment of resistance Wy  4.19 cm3
