PT 25 Aluminum Extrusion T Slot Table Plates

  • PT 25 Fixture Plate Extrusions

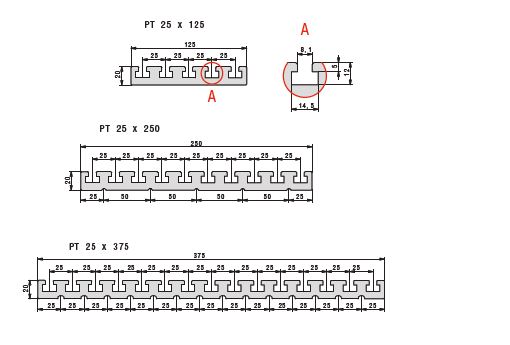

  • PT 25 Fixture Plate Extrusion Dimensions
Click image to enlarge

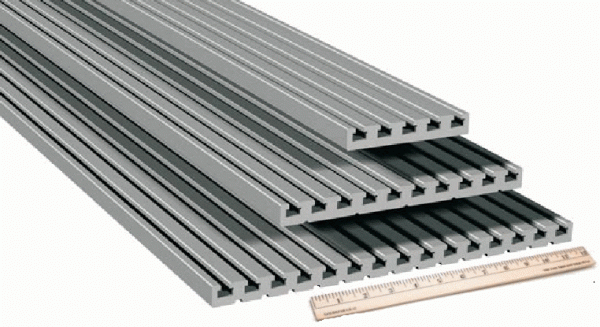

The PT25 Aluminum extrusion T sllot table plates are 20mm thick, wide, solid and machined flat on both sides
  • The PT25 ALuminum Exutrusions table plates have t-slots on one side only.
  • The t-slots are on 25mm centers.
  • They are clear anodized for a clean and durable finish
  • The extrusion is stress relieved and both sides are machined flat.
  • It comes in 3 widths - 125mm, 250mm and 375mm and can be used to make very flat anf precise work beds, fixture plates, table tops, etc.
  • Can be provided cut to custom lengths for OEM quantities
  • Compatible T nuts at TYPE 1 and TYPE 2
  • These extrusions can be used as table tops for CUSTOM WORKBENCHES or ROBOT work tables
  • For CUSTOM SIZED Workbenches and Robot work tables CLICK HERE and tell us what you need.
  • ALSO available with T slot on both sides
  • Click here for Universal Robot Adapter Mounting Plates
  • For a list of T Nuts and clamping accessories, see Robot Accessories and T-Nuts.

  Size
(mm)
kg/m Moment
of
Inertia
Ix (cm4)
Moment
of
Inertia
Iy (cm4)
PT25 Aluminum Extrusion Table Plate 20x125 dimensions 20x125 4.8 6.7 243.4
PT25 Aluminum Extrusion Table Plate 20x375 dimensions 20x250 9.6 12.8 1848.6
PT25 Aluminum Extrusion Table Plate 20x375 dimensions 20x375 13.7 17.9 5996.0

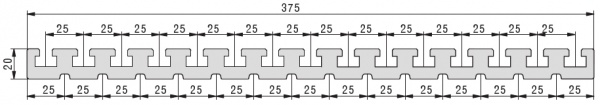

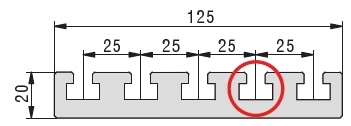

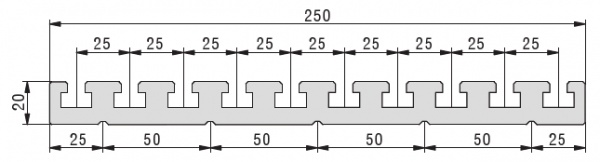

PT Extrusion T Slot Table Plate Dimensions

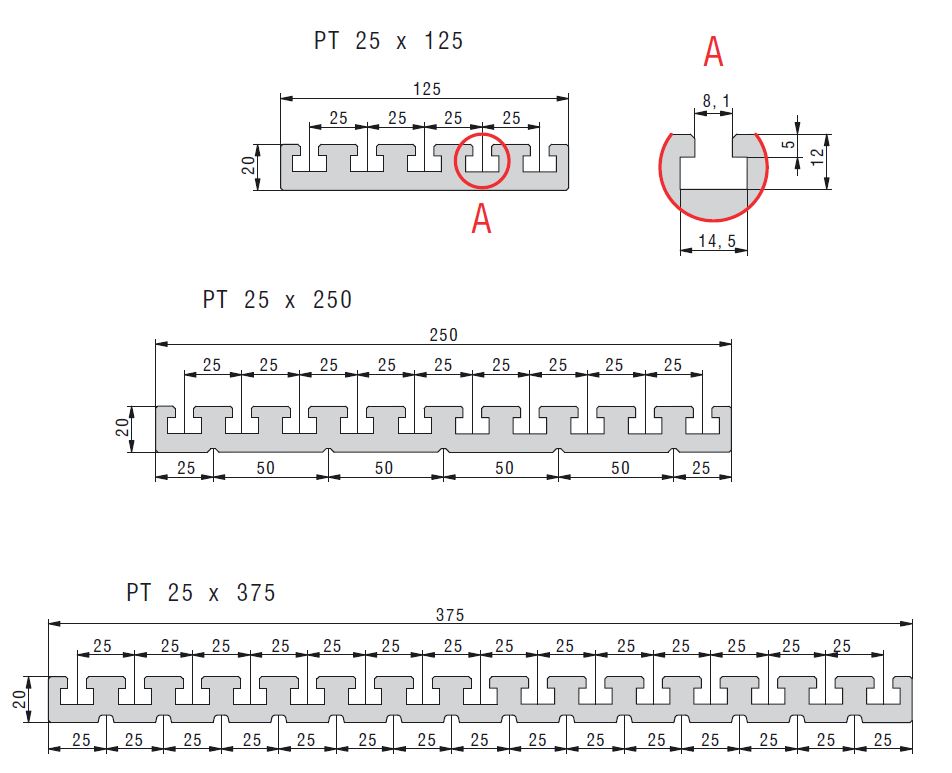

PT Aluminum Extrusion Table Plate T Slot Detailed Dimensions

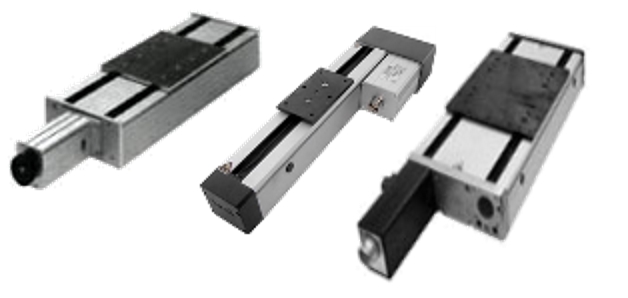

                         Check out our Ball Screw Actuators

    Ball screw actuators available with up to
3m travel as well as XY configurations
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Milled flat on both sides
  • For use with any machine
  • Thick Walled, distortion-free and extremely form-retaining
  • Available up to 3 m length
  • Can be used as drainage channel for small quantites of liquid

PT 25 T-Slot Aluminum Table Plates
  PT 25
Dimensions (W × H)  125 x 20 mm  250 x 20 mm  375 x 20 mm
Length  up to 3 metres in 250mm increments (special lengths upon request)
Weight  appr. 4.8 kg/m  appr. 9.6 kg/m  appr. 13.7 kg/m
T-slots  one-sided in 25 mm raster
Moment of inertia Ix  243.36 cm4  1848.57 cm4  5996.01 cm
Moment of inertia Iy  6.46 cm4  12.77 cm4  17.90 cm4
Moment of resistance Wx  38.94 cm3  147.88 cm3  319.79 cm3
Moment of resistance Wy  6.46 cm3  12.77 cm3  17.90 cm3
