PR 30 Series Aluminum Extrusion Table Plate

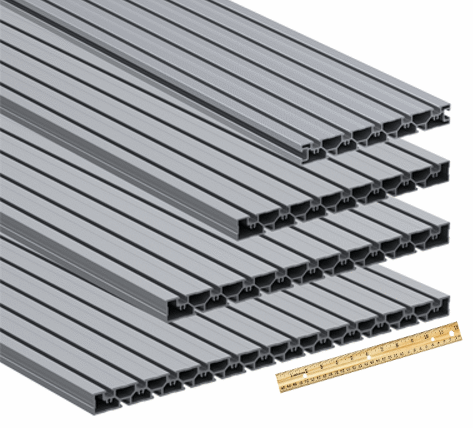

  • PR 30 Aluminum Extrusion Table Plates
Click image to enlarge
This extra wide series of table plates are 30mm thick up to 600mm wide and can be used for router table beds and other large format automation equipment.
  • They are available in lengths up to 3m as standard in 250mm increments.
    • special lengths are available for a nominal cut charge
  • Lengths up to 6m can be special ordered
  • Available in widths of 150mm, 300mm, 350mm, 450mm, 600mm
  • Compatible T nuts, M4 up to M8, at TYPE 1 and TYPE 2
  •  4.5mm diameter slot at the end will take M5 or M6 tap for end caps
  • For flexible fixturing, add a RIGHT ANGLE PLATE.
    Right Angle Plates
    Aluminum Right Angle Brackets
For price quote, click here
Click here for physical properties
Click here for accessories and clamping devices

 PR 30 Extrusion Sizes and Physical Properties

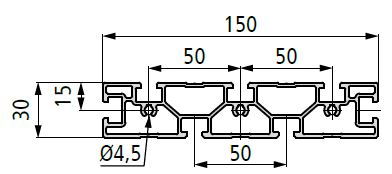

PR 30x150 Dimensioned Drawing

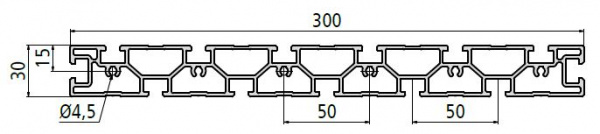

PR 30x300 Dimensioned Drawing
PR 30x450 Dimensioned Drawing
PR 30x600 Dimensioned Drawing
PR 30 Extrusion Properties
Size mm Wt
kg/m
Iy (cm4) Ix (cm4)
30x150 5.5 21.5 1,183
30x300 7.3 29.0 2,773
30x450 10.2 41.9 6,504
30x600 17.2 64.1 19,268

T Slot Dimensions

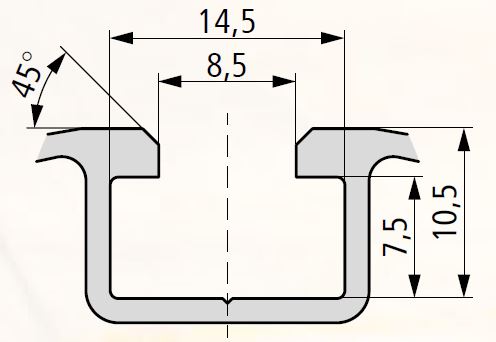

PR 30 T Slot Extrusion Dimensions

Accessories for PR 30 Extrusions

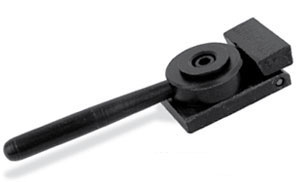

Cam Lock Clamp Click here for clamping and fixturing accessories.

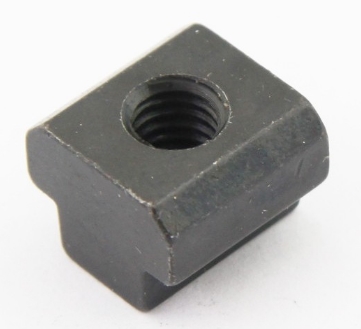

Heavy Duty T-Nut Click here for T nuts for these extrusions.
Aluminum Right Angle Brackets Click here for Angle Brackets

Looking for a T slot TABLE or ROBOT STAND with T SLOTS?
We can offer custom sized tables with various T SLOT extrusion tops, lower shelves, locking casters.

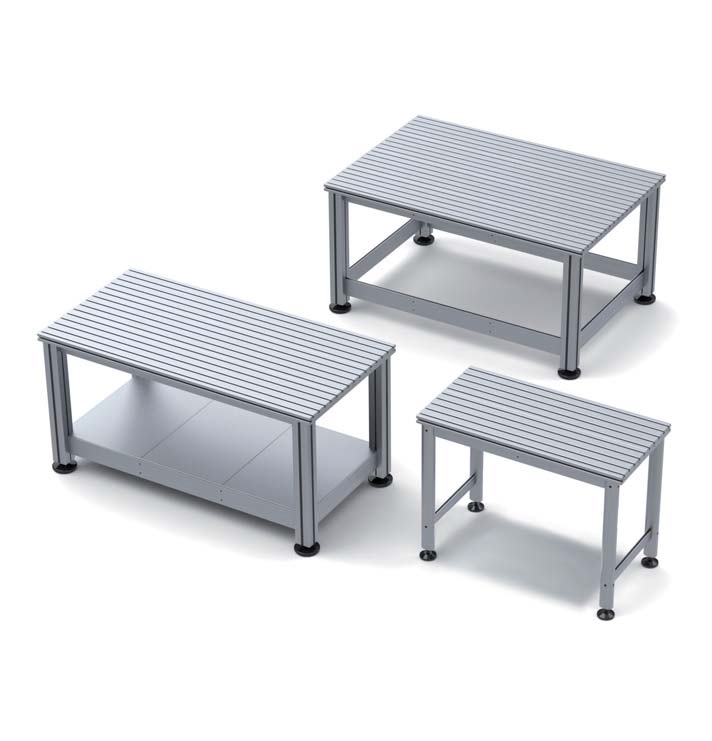

Workbenches with Aluminum T Slot table tops
Select size and length and click ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
