NEMA Motor Mounts
Click image to enlarge

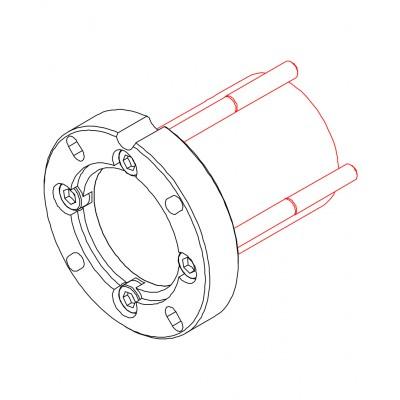

NEMA 23 and NEMA 34 motor mounts for the LES series of ball screw driven actuators and LEZ series of belt actuators.
They are available for standard NEMA 23 or NEMA 34 square flange motors.
The LONG SLEEVE version is designed to accomodate longer motor shafts
Both sizes are available for standard length motor shafts as well as long length motor shafts.
FLEXIBLE SHAFT COUPLINGS CAN BE ORDERED SEPERATELY here.

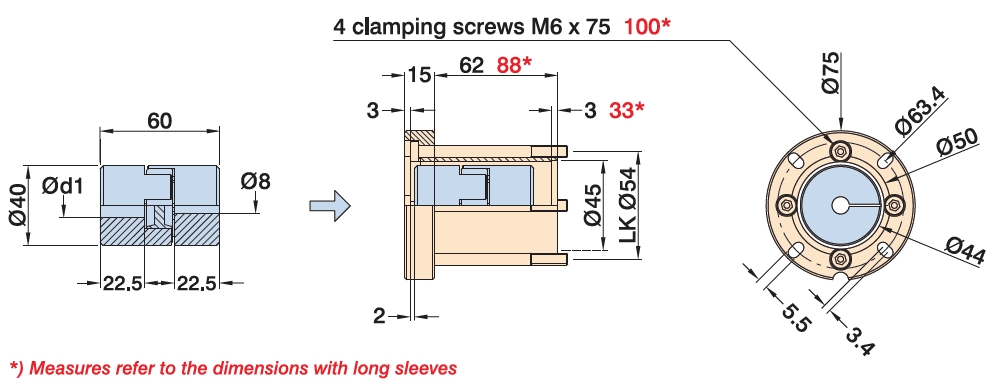

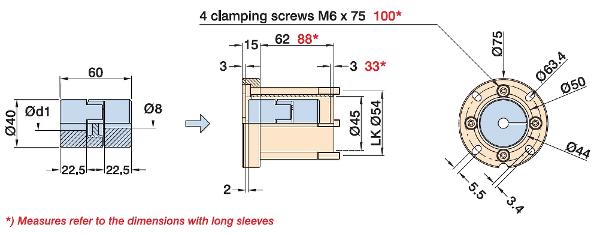

Click here for drawing of NEMA 23 motor standoff dimensions

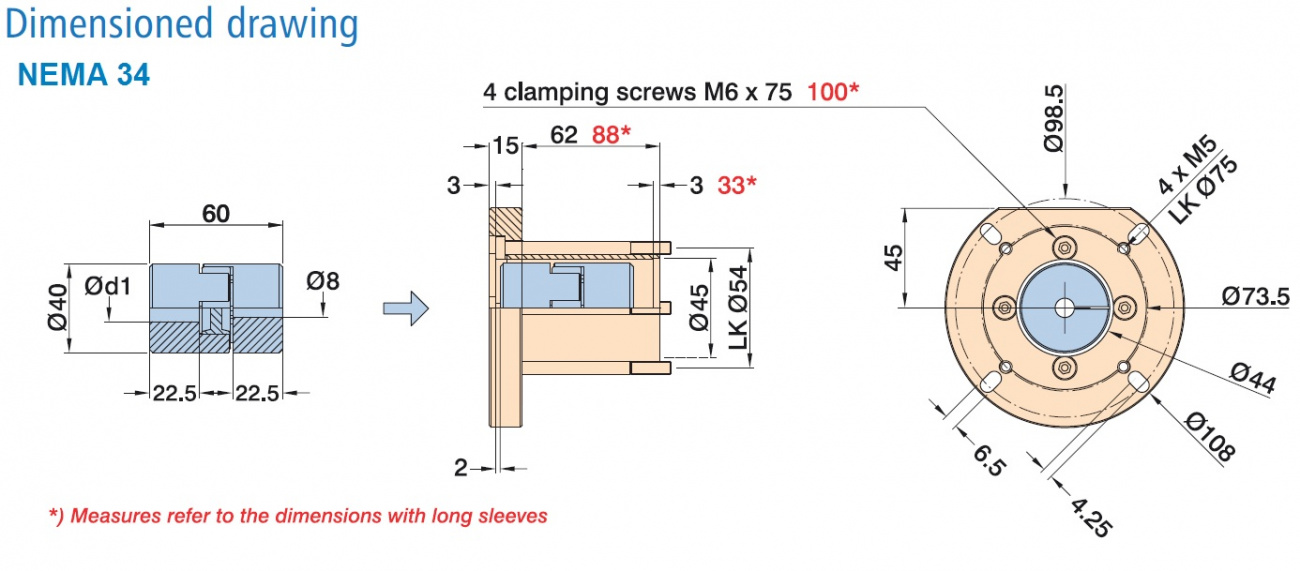

Click here for drawing of NEMA 34 motor standoff dimensions
Configure Your Part
Select Options then Click “Add to Quote”
|Add To Quote|
