RE65 Aluminum Extrusion Table Plate

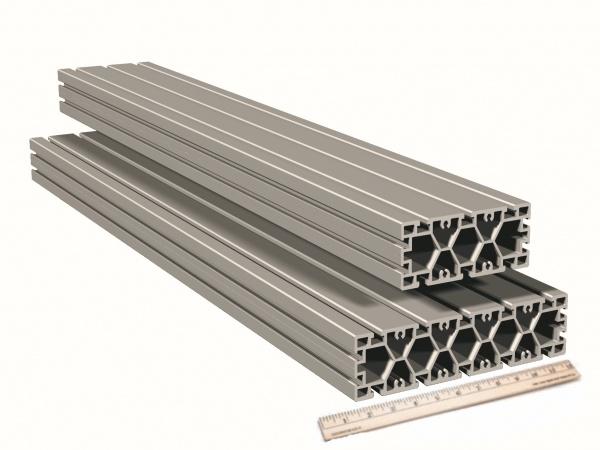

  • RE 65 Aluminum Extrusion Table Plates

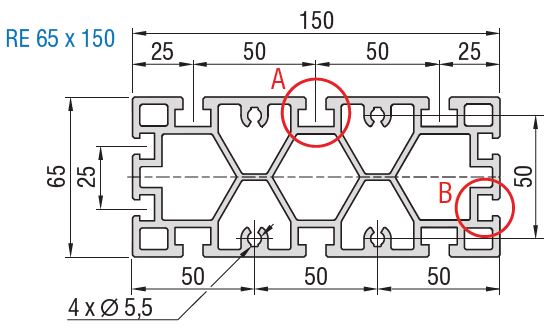

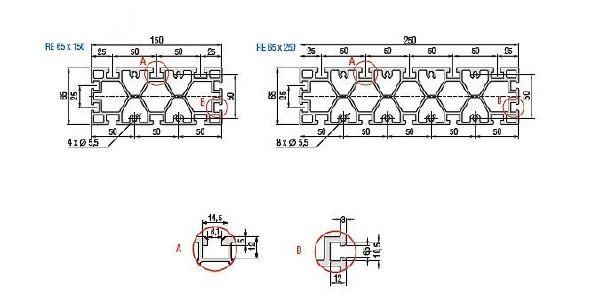

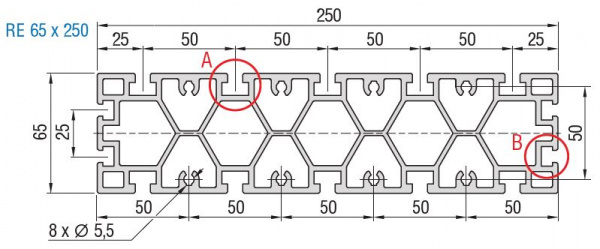

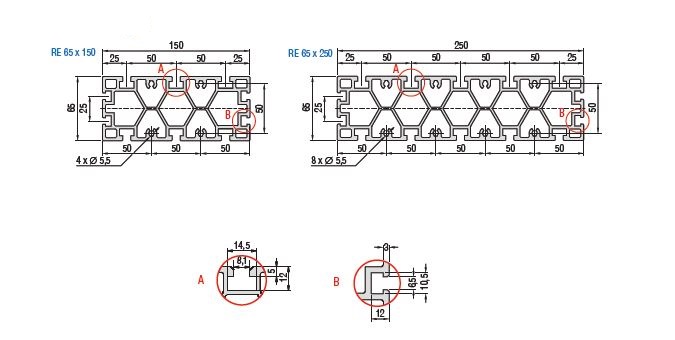

  • RE 65 Aluminum Extrusion Table Plate Dimensioned Drawing
Click image to enlarge


Aluminum extrusion table profiles are 65 mm thick, clear anodized, light, and very stable.

  • Machined flat on both sides
  • Available in widths of 150mm and 250mm
  • Profiles are 65 mm thick for rigidity against bending - see Ix and Iy bending moments
  • Cavities in profile make it light and extremely stiff against bending.
  • Universal precision clamping and machining surface
  • Ideal for use as a stabiliser for machine and subframe constructions, fixture plates, work holding etc.
  • Available in standard lengths of increments of 250mm
    • Custom cut lengths available for nominal cut fee
  • A variety of T nuts available- T Nuts Type 1 and T Nuts Type 2
  • 5.5mm diam. spaces can be tapped for M6 thread
  • Click here for Universal Robot Adapter Mounting Plates
  • Click here for FANUC CRX Cobot Adapter Mounting Plates
  • For a list of T Nuts and clamping accessories, see Robot Accessories and T-Nuts.

These extrusions can be used as table tops for CUSTOM WORKBENCHES or ROBOT work tables
For CUSTOM SIZED Workbenches and Robot work tables CLICK HERE and tell us what you need.

RE65 Table Plate Extrusion Properties

  Dim mm kg/m Ix cm4 Iy cm4
RE65x150 Table Plate Extrusion Dimensions 65x150 7.7 633.5 148.9
RE65x250 Table Plate Extrusion Dimensions  65x250 12.4  2658.5  243.9

RE65 T Slot Dimensions

RE65 T Slot Extrusion Dimensions


Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Light and very stable
  • Milled flat on both sides
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Available in any lenght up to 3 meters
  • Avialable in 2 widths ( 65x150 , 65x250 )

Rectangular Profiles RE 65
  RE 65
Dimensions (W × H)  150 x 65 mm  250 x 65 mm
Length  up to 3 metres (special lengths to order)
Weight  approx. 7.7 kg/m  approx. 12.4 kg/m
   various cavities and T-key inserts for sliding nuts or M6 tapped strips for frontal inserts for M6 screws
Moment of inertia Ix  633.47 cm4  2,658.48 cm4
Moment of inertia Iy  148.87 cm4  243.85 cm4
Moment of resistance Wx  84.46 cm3  212.68 cm3
Moment of resistance Wy  45.83 cm3  75.03 cm3
