Very Large Right Angle Brackets

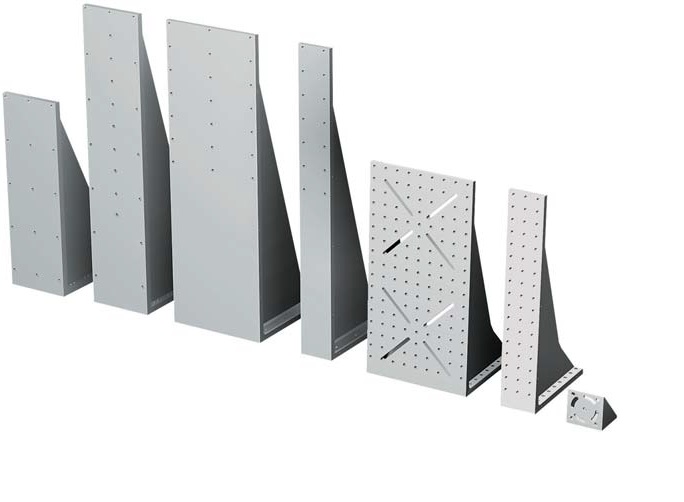

  • WV Aluminum Right Angle Brackets
Click image to enlarge
  • The WV series of right angle brackets are available in 8 different heights from  75mm to 670mm
  • The WV Series of brackets feature a series of predrilled holes on 25mm or multiple of 25mm centers
  • Some right angle brackets also feature slots for convenient mounting and fixturing.
  • The all aluminum construction keeps the weight low and makes modifications easy.
  • This series of angle brackets is completely compatible with all extrusion table plates
  • Ideal for quickly constructing or assembling CARTESIAN ROBOTS.
  • Check out our Introduction to Cartesian Robots


The angle plates come in heights up to 670mm/26"

  • Light weight cast or welded aluminum for durability
  • Mounting surfaces milled flat to 0.05 mm (.002 in)
  • Perpendicular machined surfaces are accurate to 0.1 mm (.004 in)
  • Unmachined surfaces have black or silver powder-coated finish for longevity
  • Gusseted sides provide strength and rigidity
  • All through holes and slots are designed for M6 or 1/4-20 screws
  • Mounting through holes are on a 25, 50, or 100 mm grid for easy assembly and flexibility
  • Wall thicknesses range from 12 mm (.5 in) to 15 mm (.6 in) to resist large forces and vibrations
  • Suitable for machine components, machining mounting block, universal angular mount
  • Aluminum alloy plates feature high thermal conductivity and corrosion resistance
  • 45° mounting slots on Series 3 offer additional mounting flexibility
  • Optional cover plates available for some models
They can be used with most Isel Automation slides, gantries and aluminum extrusions to fixture and mount many different automation applications.
Click here for
dimensioned drawings.
Click here for sizes and weights

Click here to download solid model.

Physical Properties
  Part Number Dimensions mm (in) Weight kg (lbs)
WV1
209110 0010
71 x 71 x 75
(2.8 x 2.8 x 3)
Dimensioned Drawing
0.2
(.44)
WV2
209110 0022
Matching Cover Plate
Part Number: 209110 0021
446 x 221 x 75
(17.6 x 8.7 x 3)
Dimensioned Drawing
2.6
(5.7)
WV3
209110 0032
Matching Cover Plate
Part Number 209110 0031
  5.8
(12.8)

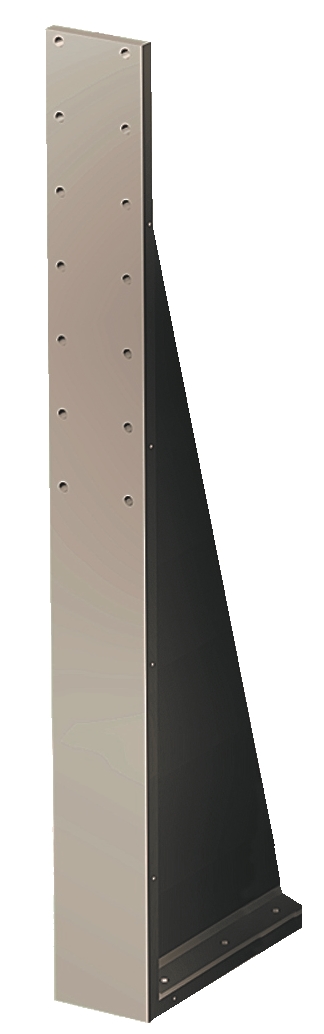

WV5
209110 0050

Matching Cover Plate
Part Number 209110 0051
  5.3
(11.7)
WV6
209110 0060
Matching Cover Plate
Part Number 209110 0061


670 x 220 x 220
(26.4 x 8.7 x 8.7 )
Dimensioned Drawing
13.3
(29.8)
WV7
209110 0070
Matching Cover Plate P/N: 209110 0071
670 x 220 x 145
(26.4 x 8.7 x 5.7)
Dimensioned Drawing
10.8
(23.8)
WV8
209110 0080
Matching Cover Plate P/N: 209110 0081
446 x 222 x 145
(17.6 x 8.8 x 5.7)
Dimensioned Drawing
7.4
(16.3
WV19
209110 0190
Cover plate not available
300 x 150 x 221
(11.8 x 5.9 x 8.7)
Dimensioned Drawing
2.5
(5.6)

Angle Plate Covers are clear
anodized aluminum. Also
available in stainless steel on
special order. Screws to
angle bracket.
