Carriages for the LFS-12-1 rails

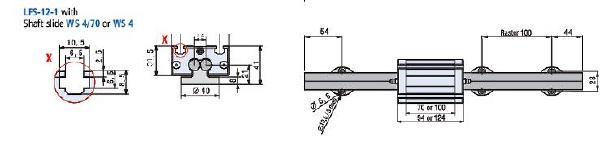

  • WS 4/70 Shaft Slide

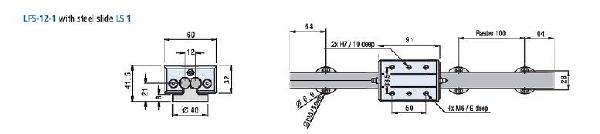

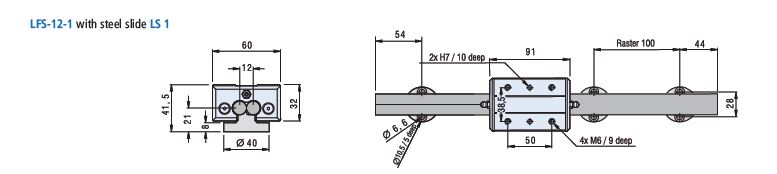

  • LFS 12-1 with Steel Slide

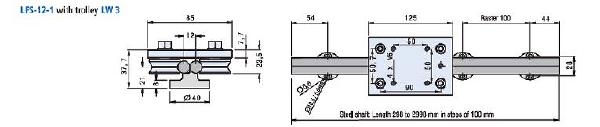

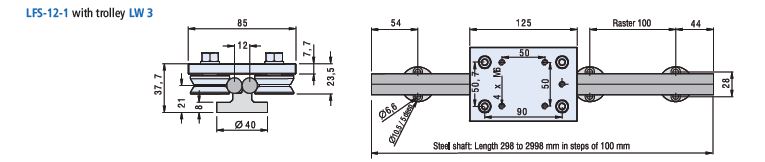

  • LFS 12-1 with Trolley

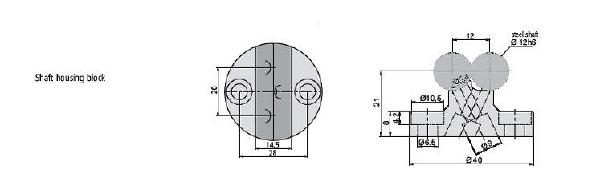

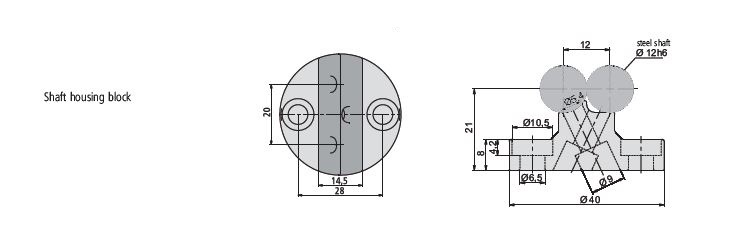

  • Shaft Housing Blocks
  • WS4/70 Bearing Carriage
  • WS4 Bearing Carriage

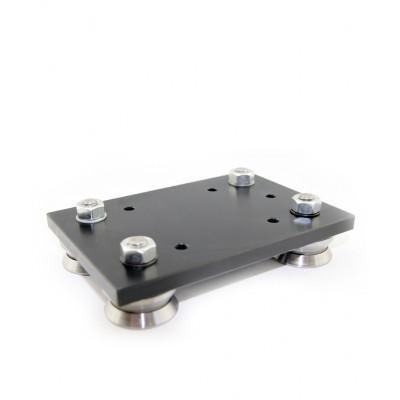

  • LW 3 Roller Carriage
  • LS1 Bearing Carriage
  • WS4/70 Bearing Carriage (Stainless)
  • WS4 Bearing Carriage (Stainless
Click image to enlarge
These are the carriages that are compatible with the LFS-12-1 linear rails.


LFS 12-1 Specifications

Shaft slide WS 4/70   Shaft slide WS 4   Steel slide LS 1   Trolley LW 8
C0 3003 N   C0 4868 N   C0 3508 N   C0 2160 N
C 1873 N   C 2426 N   C 2105 N   C 4000 N
F1 static 2821 N   F1 static 4157 N   F1 static 3549 N   F1 static 4320 N
F1 dynamic 1599 N   F1 dynamic 2071 N   F1 dynamic 2130 N   F1 dynamic 3846 N
F2 static 3303 N   F2 static 4868 N   F2 static 3508 N   F2 static 2160 N
F2 dynamic 1873 N   F2 dynamic 2426 N   F2 dynamic 2105 N   F2 dynamic 4000 N
Mx static 29.8 Nm   Mx static 43.9 Nm   Mx static 36.2 Nm   Mx static 109.5 Nm
My static 105.3 Nm   My static 155.2 Nm   My static 129.0 Nm   My static 194.4 Nm
Mz static 123.3 Nm   Mz static 181.7 Nm   Mz static 127.5 Nm   Mz static 97.2 Nm
Mx dynamic 16.8 Nm   Mx dynamic 21.8 Nm   Mx dynamic 21.7 Nm   Mx dynamic 97.4 Nm
My dynamic 59.7 Nm   My dynamic 77.3 Nm   My dynamic 77.4 Nm   My dynamic 173.0 Nm
Mz dynamic 69.9 Nm   Mz dynamic 90.5 Nm   Mz dynamic 76.5 Nm   Mz dynamic 180.0 Nm
