T-Slot Table Top

  • Robot Workbenches with T Slot Table Top

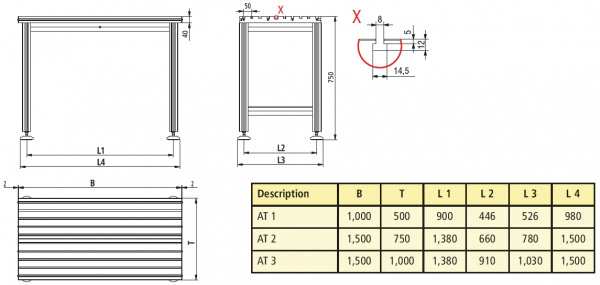

  • Dimensional Drawing of Robot Workbench with T Slot Table Top
Click image to enlarge
Isel USA’s T-slot table tops offer unparalleled versatility for your machining needs. We’ve crafted each cobot table with precision, allowing for the easy mounting and adjustment of fixtures, which will enhance productivity in industrial environments. Made from high-quality materials, these aluminum work benches ensure durability and stability. Put your trust in Isel USA for reliable, expertly engineered solutions that meet the highest industry standards. Learn more about these T-slot table tops today to optimize your workflow and achieve superior results.

These industrial workbenches are available in 3 standard sizes but are also available in custom LENGTH, WIDTH and HEIGHT - (just tell us what you need)
  • The T slot table surface is ideal for fixturing robots, cobots, part feeders, test rigs, wiring systems and many other industrial applications- quick and easy and no drilling and tapping required. If you need to reposition or adjust, just loosen the bolts, slide it over and retighten and you are done.
  • The tables are available with either height adjustable pedestal feet or rolling casters.
  • There is even an optional lower shelf.
  • WORKBENCHE IS IDEAL FOR COBOT PEDESTAL - SHELF HOLDS CONTROLLER
  • The industrial workbench table surface is made from our 40x250 RE series table plate T SLOT extrusion. This extrusion is 250mm (9.8") wide so the table top is rigid. The extrusion is precision extruded so you have both a level and flat surface to mount to.
  • Table length can be custom ordered to lengths up to 3m. Table depths are available in increments of 250mm.
  • Tables are also available with the PT 25 20x250 extrusion for a solid extrusion top with T Slots.
  • Ideal for a NON-MAGNETIC stand for testing
  • Click here for Universal Robot Adapter Mounting Plates
  • Click here for FANUC CRX Robot Adapter Mounting Plates
  • For a list of T Nuts and clamping accessories, see Robot Accessories and T-Nuts.
AT Workbench Specifications
  AT1 AT2 AT3
Part Number 248550 0010 248550 0012 248550 0013
Dimensions 1000x500x750mm 1500x750x750mm 1500x1000x750mm
Capacity 200kg 400kg 400kg
T Slots Entire surface on 50mm centers Entire surface on 50mm centers Entire surface on 50mm centers
Weight 30kg 60kg 75kg
Custom Lengths Up to 6m Up to 6m Up to 6m
Custom Widths Increments of 250mm Increments of 250mm Increments of 250mm
Magnetic NO NO NO
Material Clear anodized aluminum Clear anodized aluminum Clear anodized aluminum
Leveling feet Standard Standard Standard
Bottom shelf Optional Optional Optional
Lockable casters Optional Optional Optional

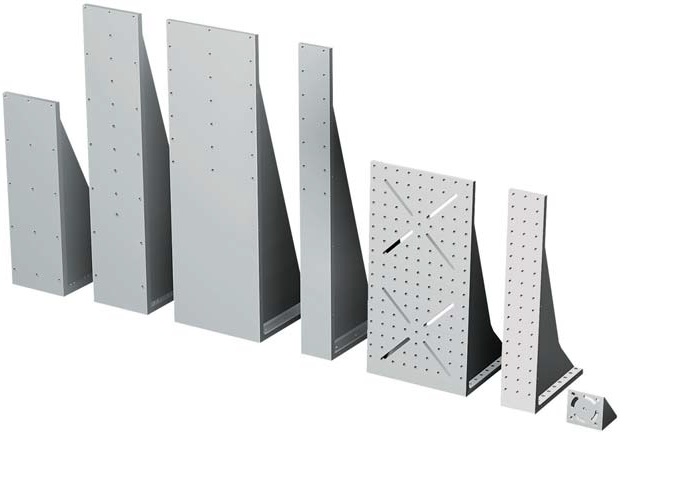

WV Angle Brackets The WV Angle Brackets make it easy to fixture robots and workpieces on the T Slot Industrial Workbenches. The brackets are
  • machined square
  • come in heights up 26"
  • have holes predrilled on 25 or 50mm centers
  • SEE THEM ALL

Click here for CUSTOM SIZED Workbenches and Robot work tables and tell us what you need - EVEN MULTILEVEL!
Click here for Catalog Pages of AT Industrial Workbenches.
Click here for
AT Industrial Workbenches WITH BACK PANELS
Click here for Solid Models of AT Industrial Workbenches.

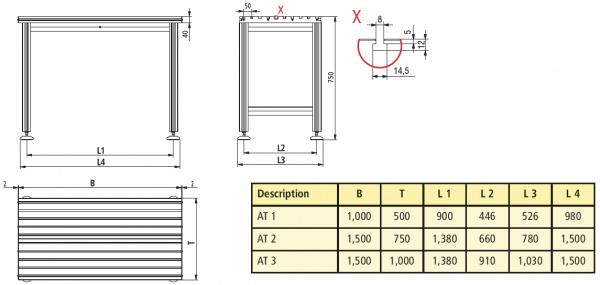

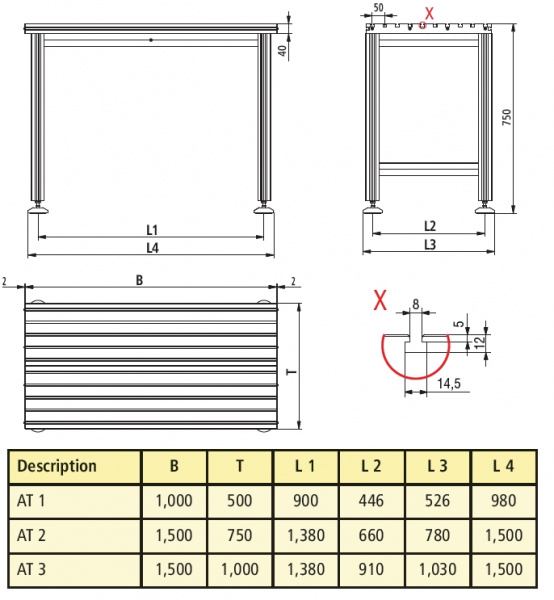

Workbench Dimensional Drawing

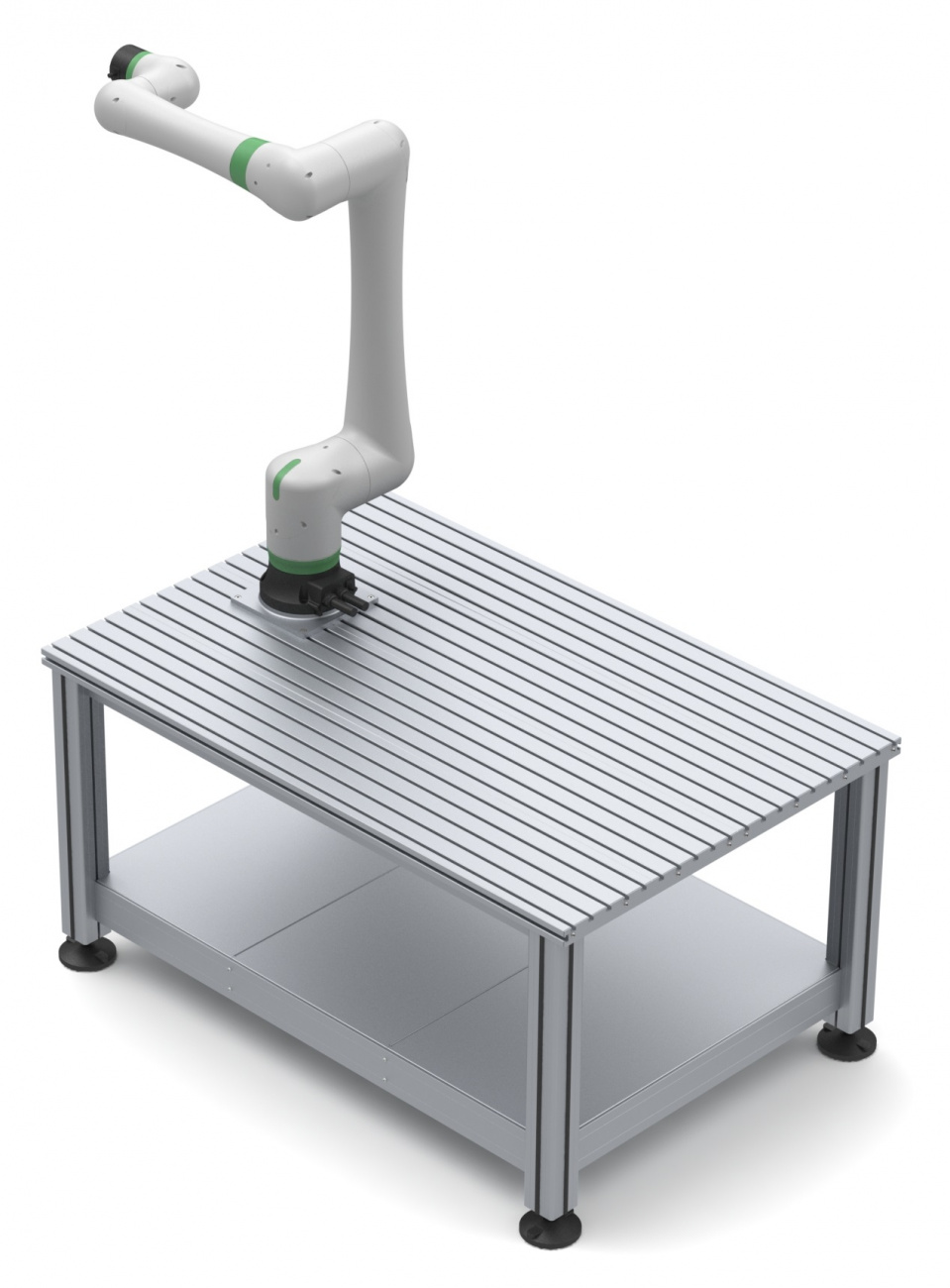

FANUC CRX10iA/L on AT3 Workbench MASSIVE DIMENSION Large Format 3D Printer with ABB Robot on AT2


To Get a QUOTE, change the quantity on the desired version(s) below and click ADD TO QUOTE
