LFS-12-10 Linear Rails and Bearings

  • LFS-12-10 Linear Rail

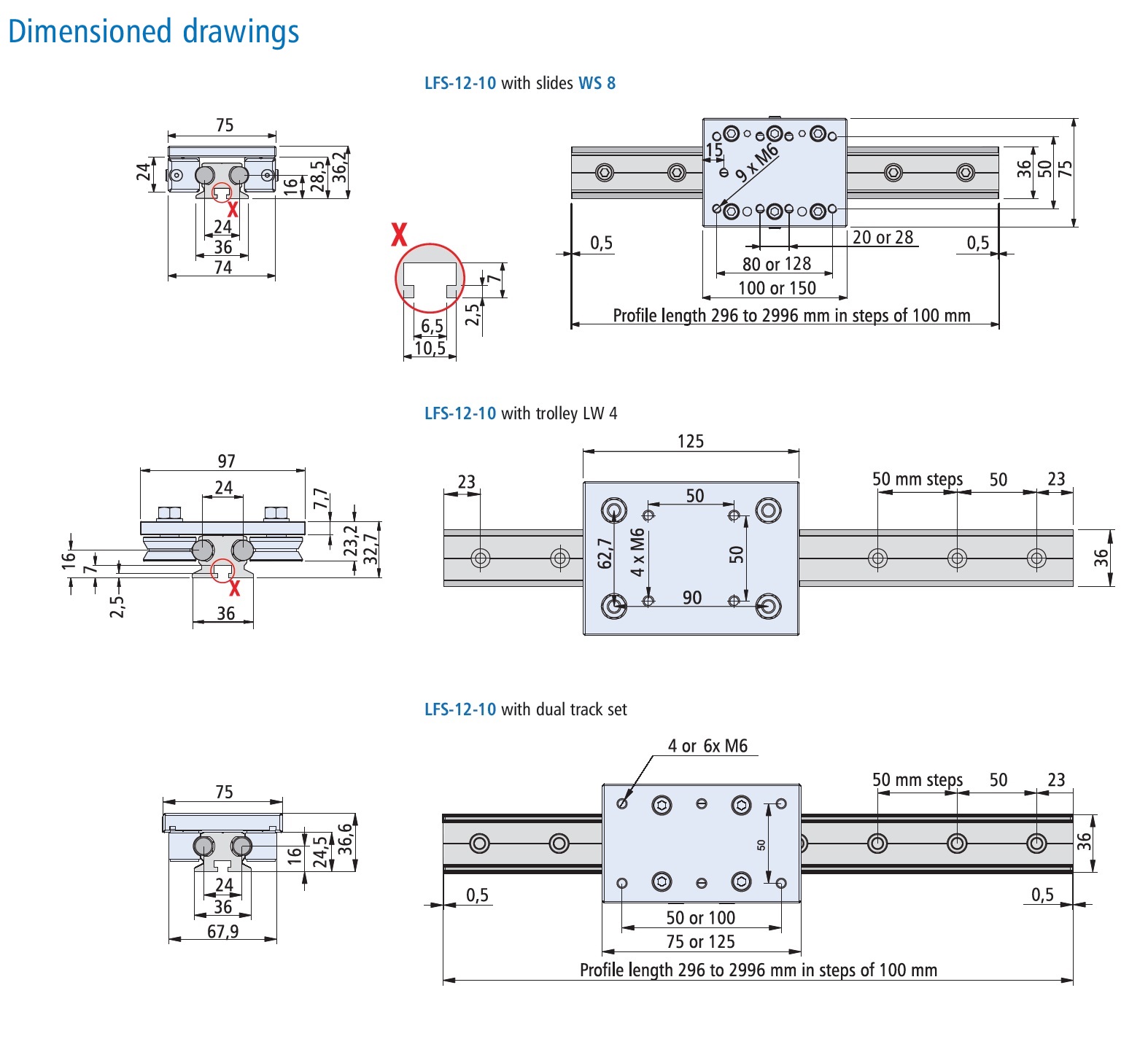

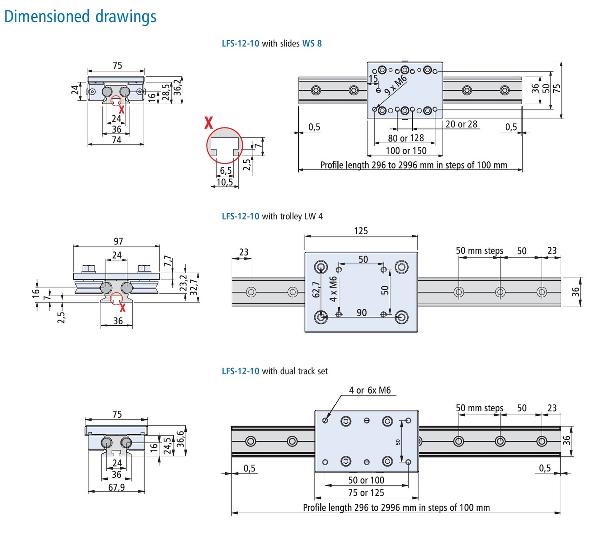

  • LFS 12-10 Rail/Bearing Dimensions

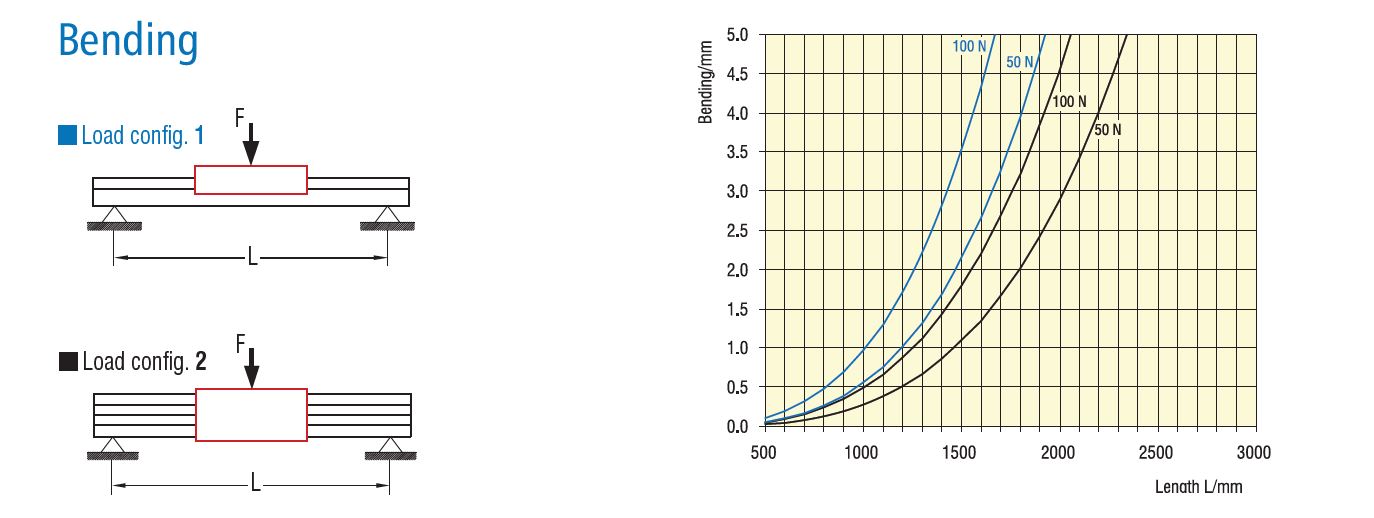

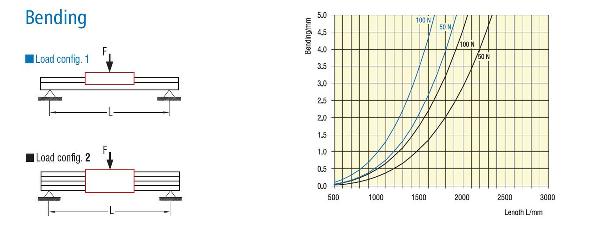

  • LFS 10-12 Deflection vs Load
  • Dual track carriage for LFS 12-10 with 40mm linear bearings
  • Dual track carriage for LFS 12-10 with 80mm linear bearings
  • Short linear bearing carriage for LFS 12-10
  • Long linear bearing carriage for LFS 12-10
  • Mount Rails to table plates WITHOUT DRILLING AND TAPPING!
Click image to enlarge

 Model LFS 12-10 Linear Rails and Bearings, COMPACT, LIGHT, LOW COST, Our most popular model!

Steel and Aluminum rail for accurate motion at LOW COST
Aluminum body makes it light
Ground steel rails make it accurate and durable
Good for most general industrial, medical and instrumentation applications.
Can be joined to provide much longer rail travels
Available with recirculating bearings or sealed roller carriages
To select rail length and bearing, click here to ADD TO QUOTE

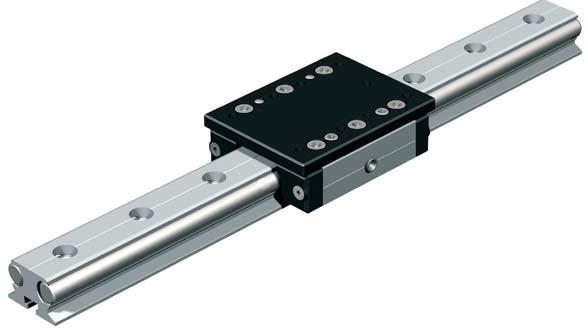

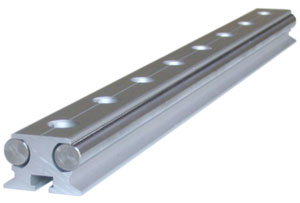

LFS-12-10 Linear Rail
MADE IN GERMANY!
Click here to see how easy it is to QUICK MOUNT these rails to our TABLE PLATE EXTRUSIONS
NOTE:
The aluminum profile length is 4mm less than the nominal length.
The steel rails are 1mm shorter than the aluminum profile.
Steel spacers are not to be removed.

Selection of Linear Bearings for LFS 12-10 Rail

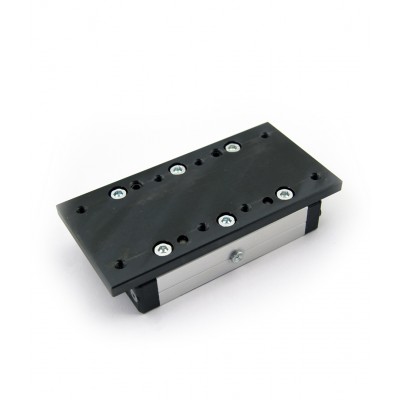

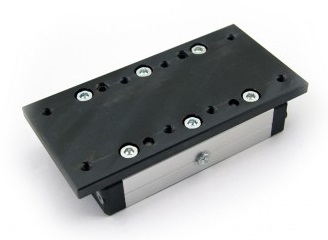

Linear Bearing Slide WS8

 Linear Bearing Slide WS8

 L 150 x W 75 x H 31.5 mm
 Ground steel plate
 Factory Adjusted for 0 play
 Lubrication options
 Part No.: 223108

 Specifications

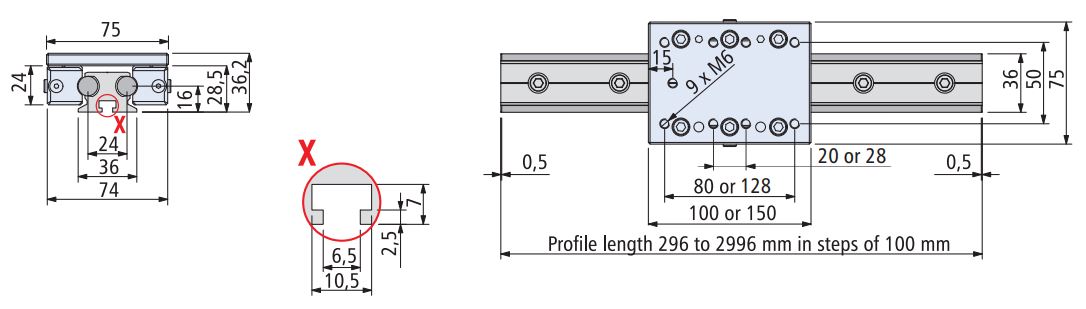

 Dimensioned Drawing
 Solid Model

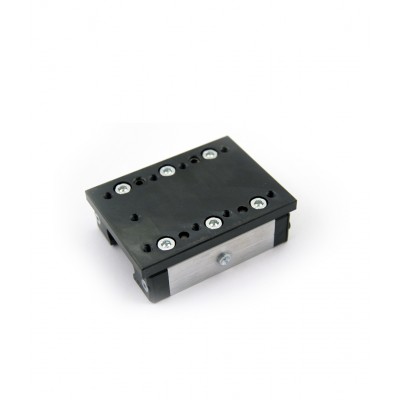

Linear Bearing Slide WS8-70

 Linear Bearing Slide WS8-70

 L 100 x W 75 x H 31.5 mm
 Ground steel plate
 Factory Adjusted for 0 play
 Lubrication options
 Part No.: 223108 0070

Specifications
 Dimensioned Drawing
 Solid Model

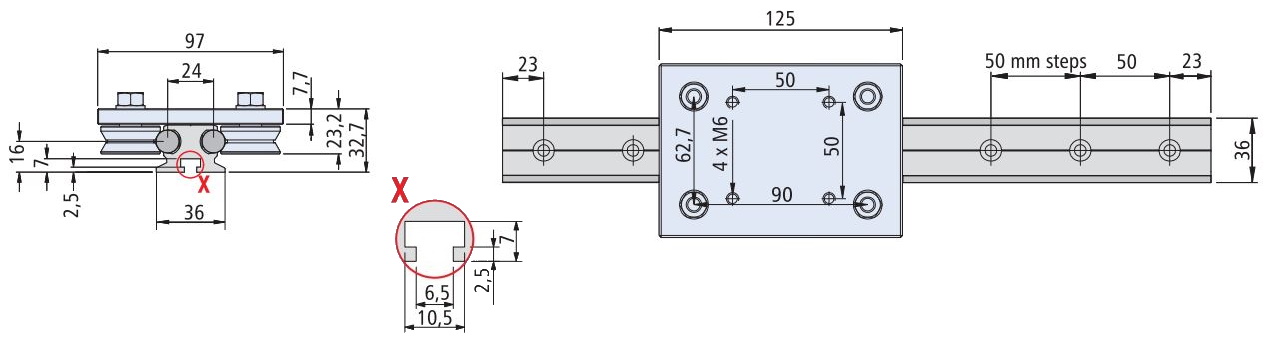

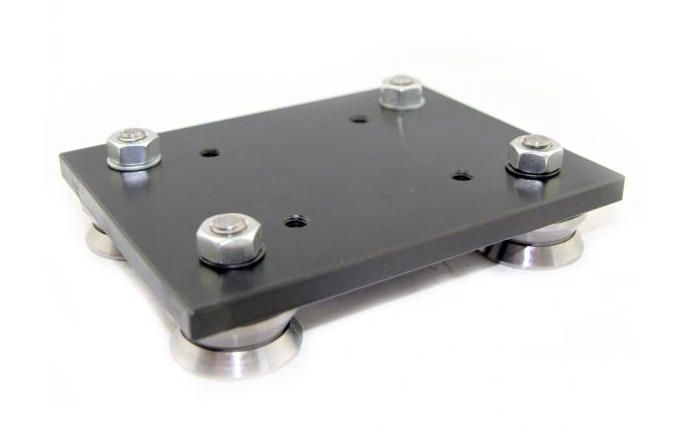

Roller Carriage

 Roller Carriage

 L 125 x W 97 x H 7.7 mm
 Ground steel plate
 4 rollers Ø 31, sealed for life
 Factory adjusted for no play
 Weight: 1.02 kg
 Part No.: 223009

Specifications
 Dimensioned Drawing
 Solid Model

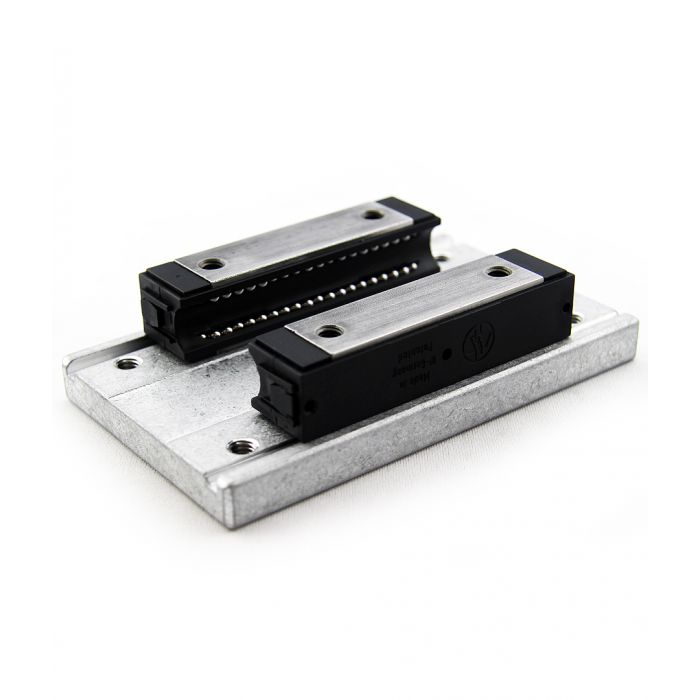

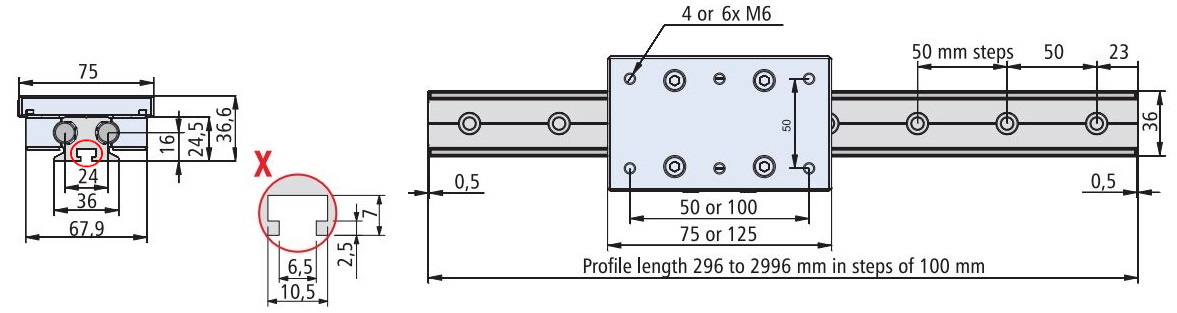

Long Linear Bearing Set 2

 Linear Bearing Set 2 (Long)

 L125 x W75 x H30.2 mm
 With 2 LARGE linear ball bearings
 Part No.: 223002

Specifications
 Dimensioned Drawing
 Solid Model

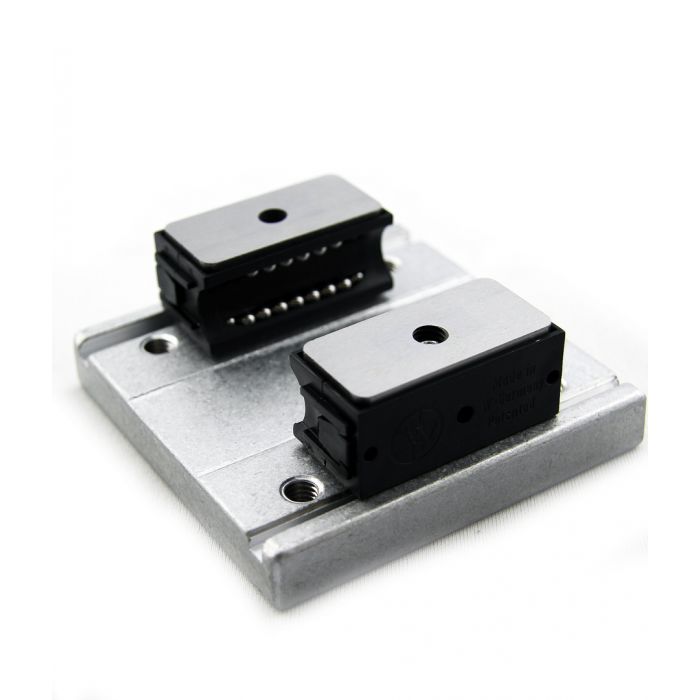

Short Linear Bearing Set 1

 Linear Bearing Set 1 (Short)

 L75 x W75 x H30.2 mm
 With 2 40mm linear ball bearings
 Part No. 223001

Specifications
 Dimensioned Drawing
 Solid Model

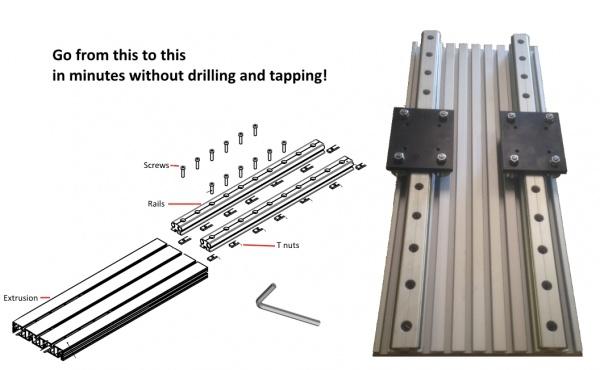

See images to the right to see how to create a slide WITHOUT DRILLING AND TAPPING

Click here for rail and bearing carriage load and moment specifications

The aluminum profile length is 4mm less than the nominal length.
The steel rails are 1mm shorter than the aluminum profile.
Steel spacers are not to be removed.
Select bearing and rail length then click ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Two parallel, hardened and ground 12 mm diameter steel shafts, accuracy grade h6, hardened to RC 62 + 2
  • Parallelism and accurate center distances achieved by rails and ground spacers inserted into the extrusion at 50 mm centers
  • Lightweight, high stiffness
  • Hardened 6.5 mm dia. spacers for mounting screws
  • Weight is 3 Kg/m
  • View and select compatible carriages and accessories
  • Anti-Twist
  • Special Lengths available to order

Extra Images


LFS 12-10
Slide WS 8/70   Slide WS 8   Roller Carriage LW 4        Linear Bearing  Set 1 Linear Bearing Set 2
C0 3303 N   C0 4868 N   C0 2160 N   C0 645 N 1905 N
C 1873 N   C 2426 N   C 4000 N   C 600 N  1125 N
Fstatic 2821 N   Fstatic 4157 N   Fstatic 4320 N   Fstatic 652 N  1927 N
F1 dynamic 1599 N   F1 dynamic 2071 N   F1 dynamic 3846 N   F1 dynamic 607 N  1138 N
Fstatic 3303 N   Fstatic 4868 N   Fstatic 2160 N   Fstatic 645 N  1905 N
F2 dynamic 1873 N   F2 dynamic 2426 N   F2 dynamic 4000 N   F2 dynamic 600 N  1125 N
Mx static 46.7 Nm   Mx static 68.8 Nm   Mx static 135.4 Nm   Mx static 16.0 Nm 46.0 Nm
My static 105.3 Nm   My static 155.2 Nm   My static 194.4 Nm   My static 13.0 Nm  119 Nm
Mz static 123.3 Nm   Mz static 181.7 Nm   Mz static 97.2 Nm   Mz static 13.0 Nm  118 Nm
Mx dynamic 26.4 Nm   Mx dynamic 34.2 Nm   Mx dynamic 120.5 Nm   Mx dynamic 15.0 Nm  27.0 Nm
My dynamic 59.7 Nm   My dynamic 77.3 Nm   My dynamic 173.0 Nm   My dynamic 12.0 Nm  71.0 Nm
Mz dynamic 69.9 Nm   Mz dynamic 90.5 Nm   Mz dynamic 180.0 Nm   Mz dynamic 12.0 Nm  70.0 Nm

Forced Moment Drawing
