PL80 Aluminum Profile

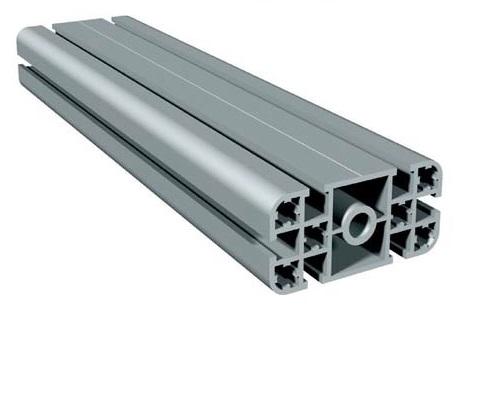

  • PL80 Aluminum Profile

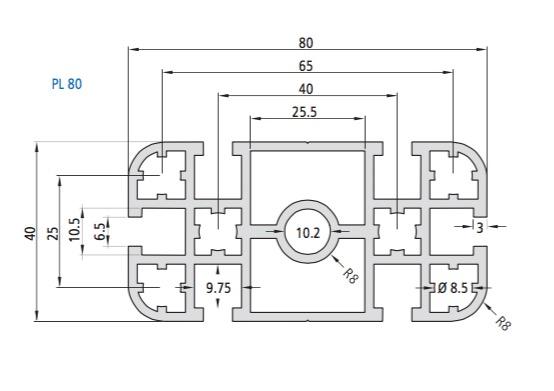

  • PL80 Aluminum Profile Drawing
Click image to enlarge
Structural profile is an extremelly rigid general purpose beam and is suitable for machine enclosures, framing elements,  instrument support beam paltforms and machine stands.
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Structural proflies are made of clear anodized aluminum
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Five 8.5mm holes at each end of extrusion to used with M10 tapping screws
  • Available up to 3 m length

Light Frame Profiles PL 80
  PL 80
Dimensions (W × H)  80 x 40 mm
Length  up to 3 metres (special lengths to order)
Weight  approx. 2.9 kg/m
  6 T-key inserts for M6 sliding nuts
6 cavity inserts, Ø 8.5 mm for M10
Cavity insert, Ø 10.2 mm for M12
Moment of inertia Ix  64.40 cm4
Moment of inertia Iy  16.36 cm4
Moment of resistance Wx  16.10 cm3
Moment of resistance Wy  8.18 cm3
