RDH-XS Rotary Stage

  • RDH-XS Rotary Stage
  • 65mm diam 3 jaw chuck
  • RDH-XS Tailstock bed, shown with 3 jaw chuck option
Click image to enlarge
The RDH-XS is a very compact, high precision rotary stage
  • Sealed to IP65 so it can be used with spray coolant applications
  • Available with 2 drive ratios
    • 50:1
    • 100:1
  • Very low backlash and high repeatability
    • Transfer accuracy <2 minutes of arc
    • Repeatability < ± 1 minute of arc
  • No maintenance or greasing required
  • Available with stepper or servo motor
  • Available with optional 65mm diameter 3 jaw chuck
  • 4 tailstock beds also available as options
Dimensioned
Drawing
Accessories Select options and
ADD TO QUOTE

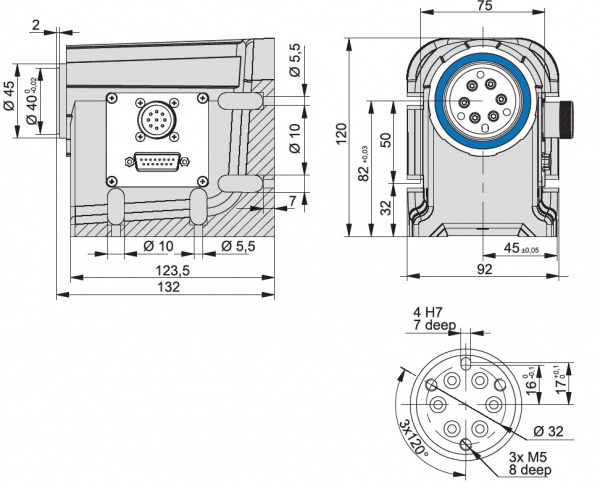

Dimensioned Drawing of RDH-XS Rotary Stage
RDH-XS Rotary Stage Dimensions
Dimensioned
Drawing
Accessories Select options and
ADD TO QUOTE

RDH-XS Accessories
65 mm Diameter 3 Jaw Chuck 3 Jaw chuck
65mm diameter
RDH-XS Rotary Stage Tailstock & Bed Tailstock and bed
Bed Len (mm) Dist. between
Centers (mm)
325 117
425 217
525 317
625 417


Dimensioned
Drawing
Accessories Select options and
ADD TO QUOTE

Select options and click ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • With precision harmonic drive transmission
  • High load capacity, rigid drive bearing
  • Absence of play and high torsional rigidity
  • Reduction 1:50 or 1:100
  • Stepper or servomotor
  • Protection class IP 65, sealed against dust and spray coolant
  • Stainless Design
  • Trnasfer accuracy _2 minutes of arc
  • Repeatability _ +- 1 minute of arc
  • Maintenance free, lubricated for life

RDH-XS
  stepper motor MS 045 HT * EC servomotor EC 42  DC servo motor RE 40
Reduction ratio  1:50 1:100 1:50 1:100 1:50 1:100
Nominal output speed [1/min]  5 2 22 11 22 11
at 1500 Hz (225 1/min)  at 1100 1/min at 1100 1/min
Max. output speed [1/min]  24 12 59 30 70 35
at 8000 Hz  --
Nominal torque [Nm]  5 7 5 7 5 7
at 1500 Hz  --
Max. torque (short term) [Nm]  --  --  5 7 5 7
Rated holding torque (static load) [Nm]  5 7 5 7 5 7
Max. transmission load [Nm]  9 14 9 14 9 14
Limit for repeatable peak torque
Dynamic load factor C [N]  392
Static load factor C0 [N]  392
Weight [kg]  2.3
  * Values for half-step operation

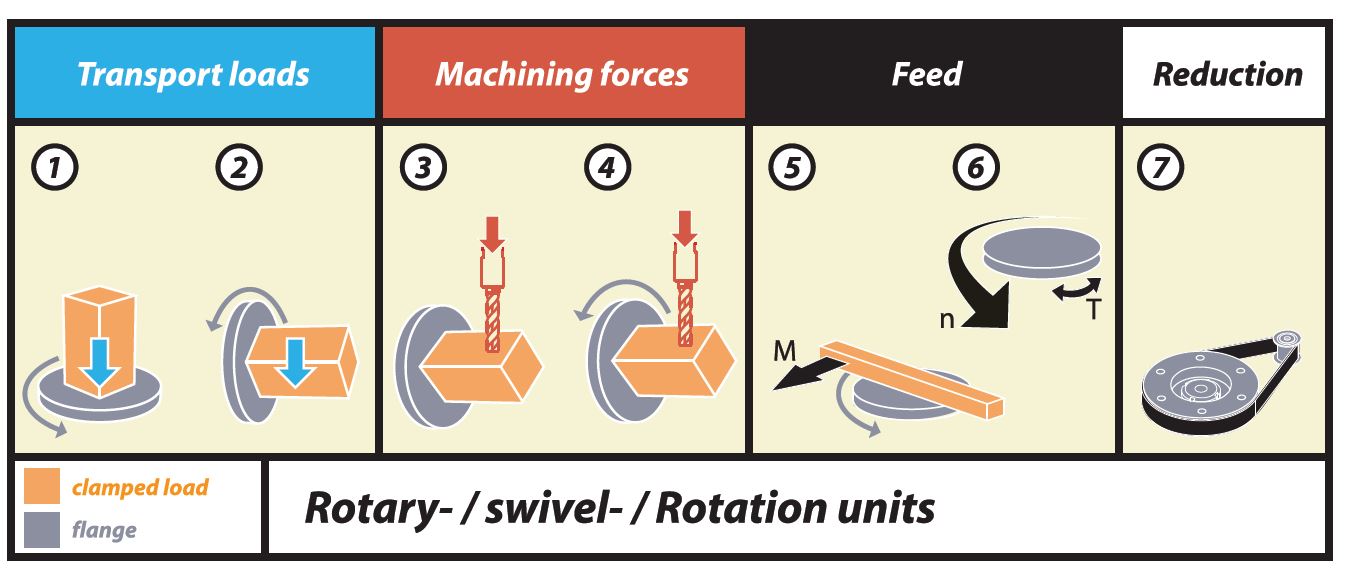

Rotary or tilting units
Rotary or tilting units 1* 2* 3 4 5 6 7
RDH-XS (step)  30 kg  10 kg  5 Nm  5 Nm  5 Nm  24 rpm  1:50
RDH-XS (step)  30 kg  10 kg  7 Nm  7 Nm  7 Nm  12 rpm  1:100
RDH-XS (EC-servo, brushless)  30 kg  10 kg  5 Nm  5 Nm  5 Nm  59 rpm  1:50
RDH-XS (EC-servo, brushless)  30 kg  10 kg  7 Nm  7 Nm  7 Nm  30 rpm  1:100
RDH-XS (DC-servo)  30 kg  10 kg  5 Nm  5 Nm  5 Nm  70 rpm  1:50
RDH-XS (DC-servo)  30 kg  10 kg  7 Nm  7 Nm  7 Nm  35 rpm  1:100
*) Guideline values will vary according to application !!
