LFS-8-1

  • Narrow profile 8mm rail and bearings

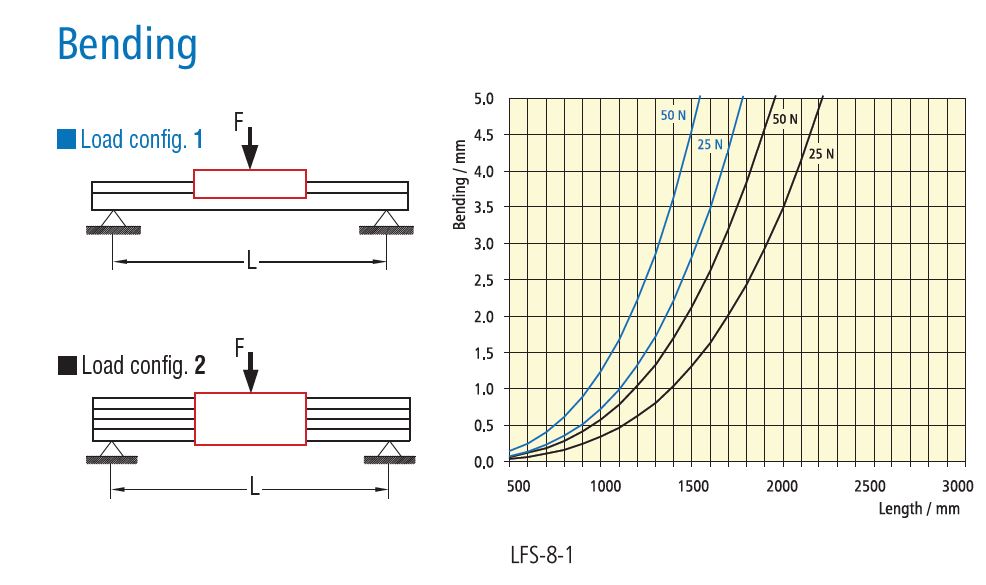

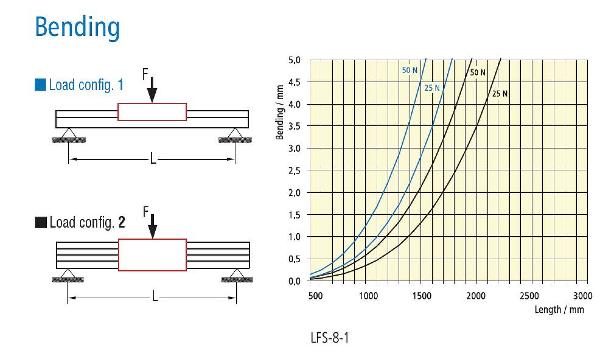

  • Linear Guide Rail LFS 8-1 Bending Drawing

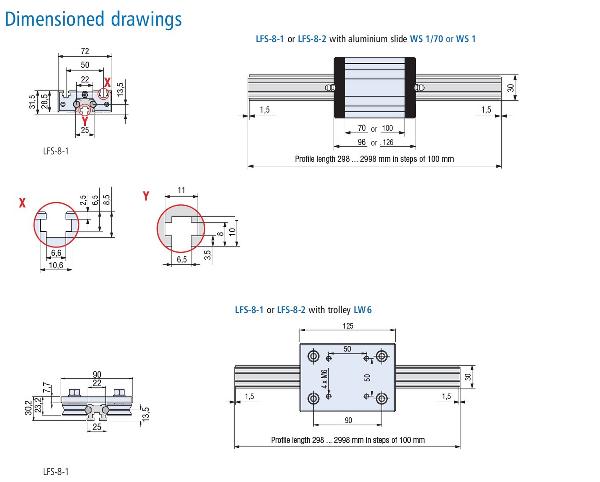

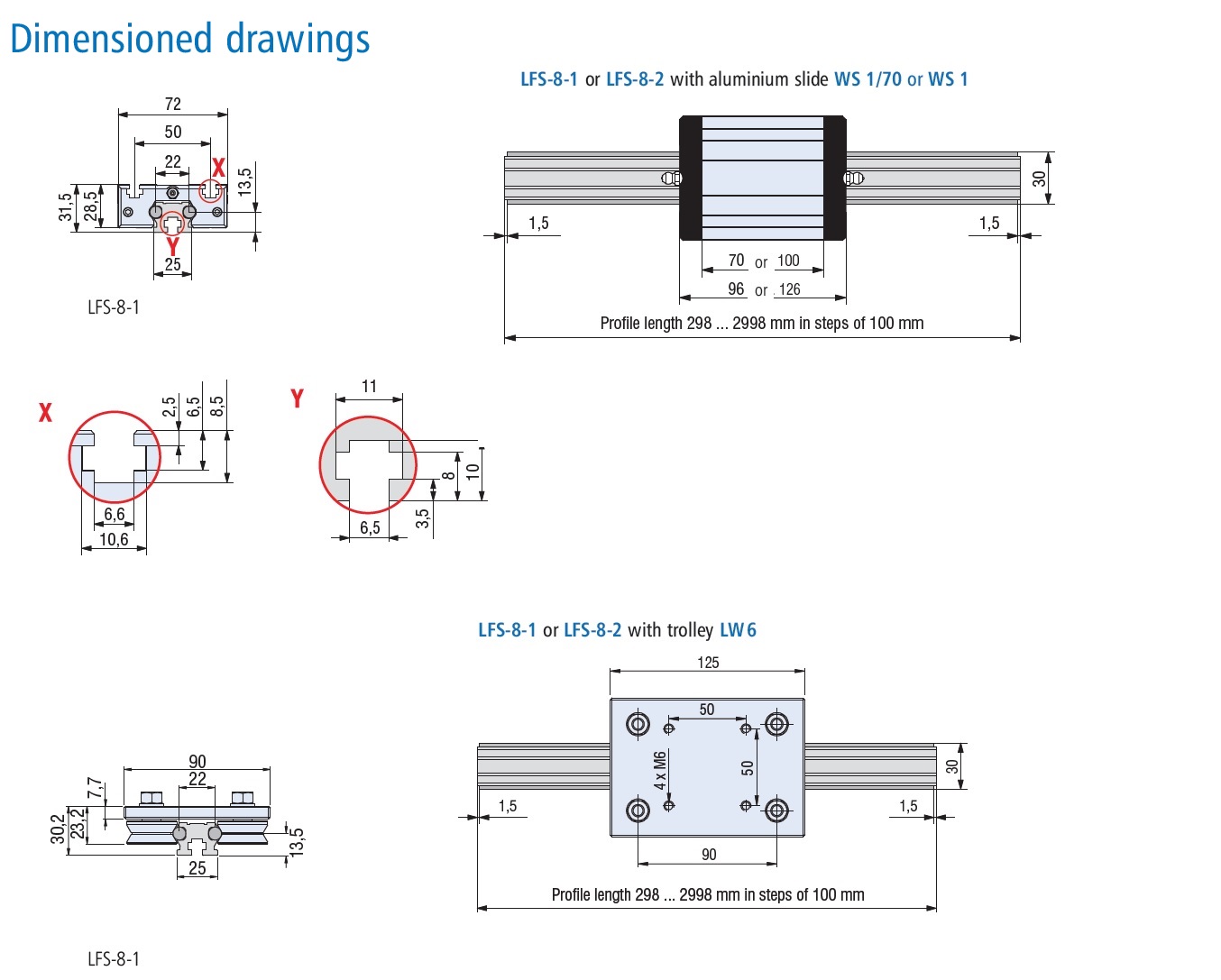

  • Linear Guide Rail LFS 8-1 Drawing
  • WS1/70 bearing carriage (96mm L)
  • WS1 Bearing Carriage (126mm L)
  • LW6 Roller Carriage
  • WS1 Stainless Bearing (126mm L)
  • WS1/70 Stainless Bearing (96mm L)

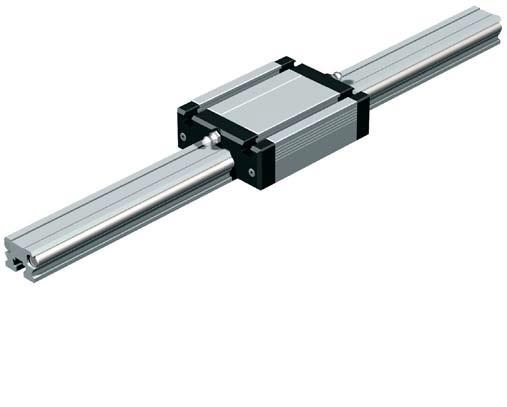

  • LFS-8-1 Linear Rail
Click image to enlarge
The LFS-8-1 linear rail system is a very economical choice for medical or laboratory applications as well as light industrial systems.

Low cost and low profile

Can easily be mounted to surfaces using the T slot on the bottom of the rail profile.

A variety of bearing and roller carriages, in regular and stainless steel are available at https://www.isel-us.com/Carriages-for-LFS-8-1-rails
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Dims. W 30 h x H 20 MM & weight 1.6 Kg/m
  • Stainless steel Version avialble
  • 2 precision steel shafts 8mm
  • Anti-twist lock
  • Aluminium Shaft houisng profile, naturally anodised
  • Fixing from below with M6 tapped rails in the T-key insert
  • Conditionally self-supporting
  • Special lenghts to order

Extra Images


LFS 8-1/ LFS 8-2
Shaft slide WS 1/70   Shaft slide WS 1   Trolley LW 6
C0  3114 N   C0  4590 N   C0  2160 N
C  1846 N   C  2390 N   C  4000 N
F1 static  2659 N   F1 static  3920 N   F1 static  4320 N
F1 dynamic  1576 N   F1 dynamic  2041 N   F1 dynamic  3792 N
F2 static  3114 N   F2 static  4590 N   F2 static  2160 N
F2 dynamic  1846 N   F2 dynamic  2390 N   F2 dynamic  4000 N
Mx static  37.3 Nm   Mx static  55.0 Nm   Mx static  121.1 Nm
My static  100.5 Nm   My static  148.1 Nm   My static  194.4 Nm
Mz static  117.6 Nm   Mz static  173.4 Nm   Mz static  97.2 Nm
Mx dynamic  22.1 Nm   Mx dynamic  28.6 Nm   Mx dynamic  106.3 Nm
My dynamic  59.5 Nm   My dynamic  77.1 Nm   My dynamic  170.6 Nm
Mz dynamic  69.7 Nm   Mz dynamic  90.2 Nm   Mz dynamic  180.0 Nm

Forced Moment Drawing
