LEZ 1 Belt-Actuator

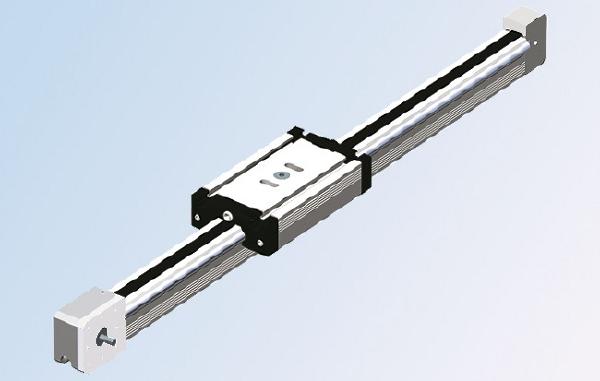

  • LEZ 1 with T slot bearing carriage

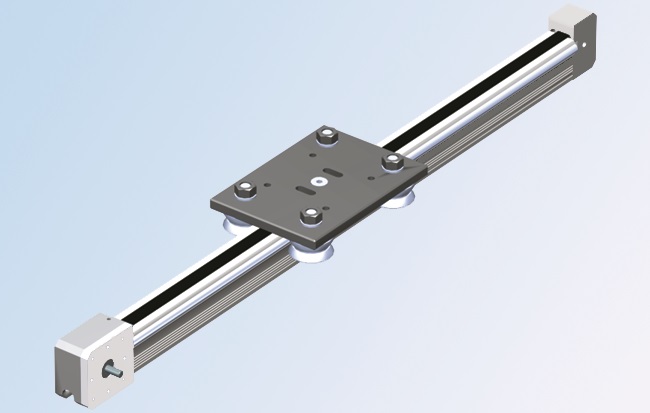

  • LEZ with steel plate roller carriage
  • Dimensioned drawings of LEZ 1

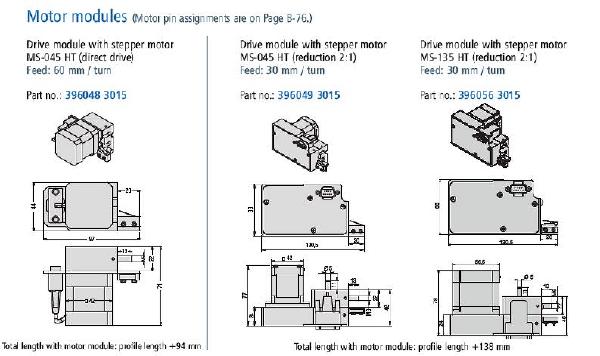

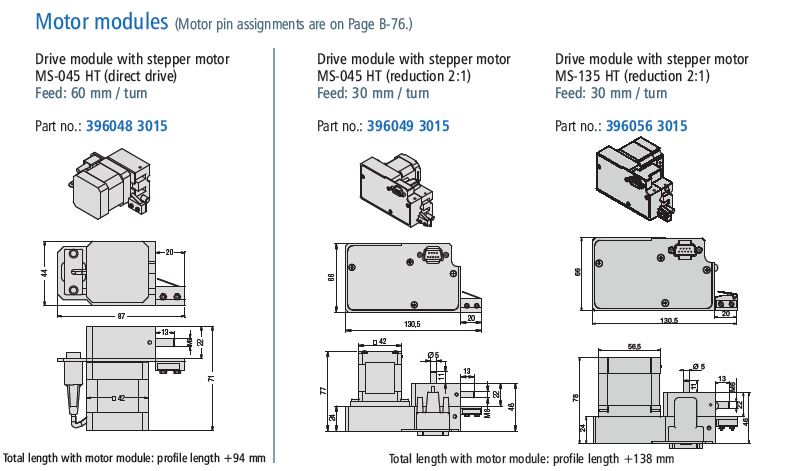

  • Motor modules for LEZ 1

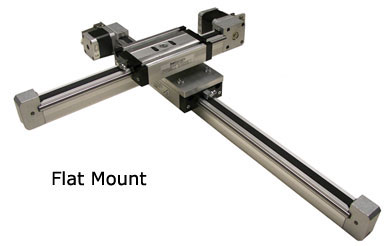

  • LEZ 1 XY Configuration with FLAT MOUNT

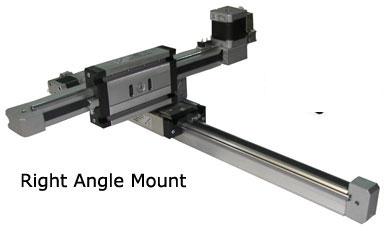

  • LEZ 1 XY Configuration with RIGHT ANGLE MOUNT

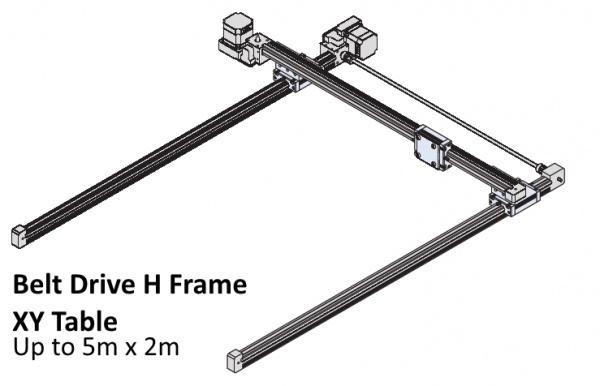

  • LEZ 1 H FRAME CONFIGURATION
Click image to enlarge

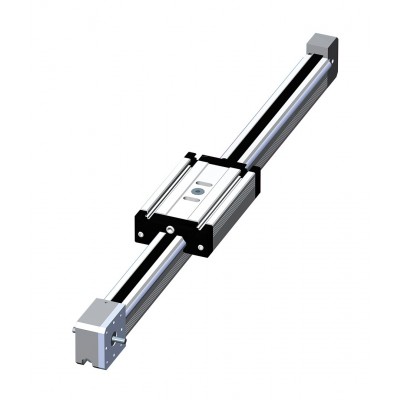

The LEZ 1 Belt-Actuator, also know as "The Automation Stick" is a very economical choice.
  • It has a small cross sectional profile and can be used in applications where space and budget are both limited.
  • Travels up to 2,848mm meters are standard and travels up to 4,848mm are available as a custom option.
  • This belt drive linear slide can be used as a single axis application or configurated into an XY, H frame XY or XYZ gantry using our XY mounting plates or right angle mounting brackets.
  • The rail used for the LEZ1 is our LFS-8-2.
  • The LEZ 1 belt actuator is offered with two choices of stepper motors, a servo motor option or no motor. We also offer it with a 2:1 belt and pulley reduction assembly ready to accept a NEMA23 motor with 1/4" diameter shaft.
  • Available as a TURNKEY XY or XYZ H Frame positioning system- assembled on a frame!
We also offer a complete automation package with compatible single axis stepper controllers and single axis servo controllers as well as multi-axis controllers.
Select Model and
ADD TO QUOTE
LEZ 1 Dimensioned
Drawing
View Video of
LEZ 1 Belt-Actuator

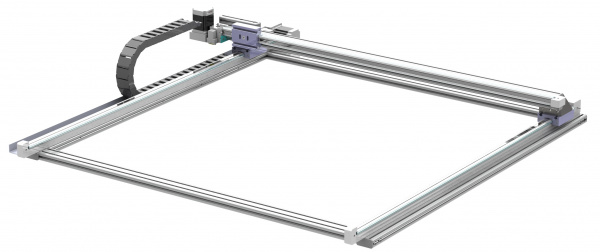

Turnkey LEZ 1 H Frame

View video of LEZ 1 Belt Actuator

We also offer a complete automation package with compatible single axis stepper controllers and single axis servo controllers as well as multi-axis controllers.

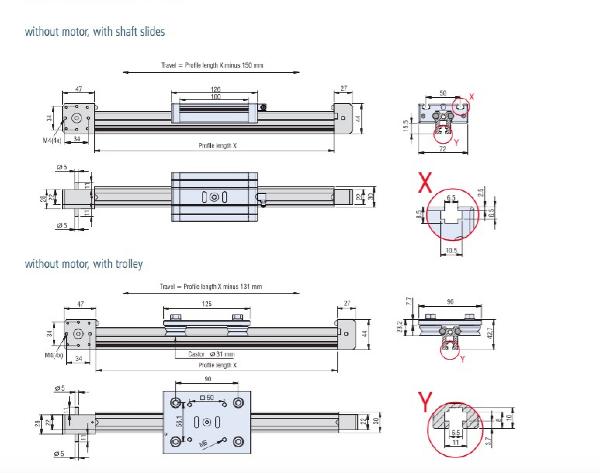

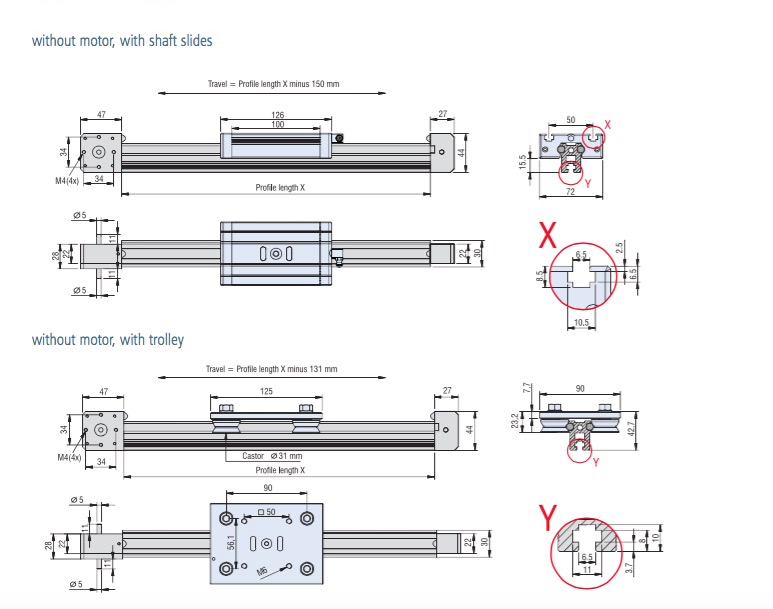

LEZ 1 Dimensioned Drawing (click image to enlarge)

LEZ 1 with Linear Bearing Carriage Dimensions
Select model and click ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Light-weight and small
  • Most economical choice
  • Standard lengths up to 3 meters, custom lengths to 5 meters
  • 9mm wide, reinforced HTD belt
  • Speed up to 1.15m/sec. with appropriate motor and driver
  • Compact 30mm wide base
  • CAD drawings available for download
  • M6 nut strip at bottom
  • LEZ 1 belt actuator can be configured into an XY or XYZ gantry
  • Complete Electronics Package Available to Complete your Application
  • Lead is 60mm (30mm on Y or S option)
  • Repeatability: ±0.2mm (±.008in.)
  • Limit Switches at both ends of travel are included

LEZ 1
Shaft slide WS 1/70   Shaft slide WS 1
C0  3114 N   C0  4590 N
C  1846 N   C  2390 N
F1 static  2659 N   F1 static  3920 N
F1 dynamic  1576 N   F1 dynamic  2041 N
F2 static  3114 N   F2 static  4590 N
F2 dynamic  1846 N   F2 dynamic  2390 N
Mx static  37.3 Nm   Mx static  55.0 Nm
My static  100.5 Nm   My static  148.1 Nm
Mz static  117.6 Nm   Mz static  173.4 Nm
Mx dynamic  22.1 Nm   Mx dynamic  28.6 Nm
My dynamic  59.5 Nm   My dynamic  77.1 Nm
Mz dynamic  69.7 Nm   Mz dynamic  90.2 Nm
