Carriages for the LFS-12-3 rails

Click image to enlarge

These carriages are compatible with the LFS-12-3 linear rails.

View and Download LFS 12-3 Catalog Pages

**Linear Bearings for LFS 12-3 Wide Rail**
	LFS 12-3 Wide Rail Can be QUICK MOUNTED on PT 25 extrusions Has 4 linear bering choices Wide body makes it resistant to cantilevered or off center loads 2x12mm ground hardened steel rails Available in 100mm increments from 200 to 3000mm Can be provided with overlapping butt joints to make longer rails Part # 235300 XXXX (XXXX length in mm) MADE IN GERMANY

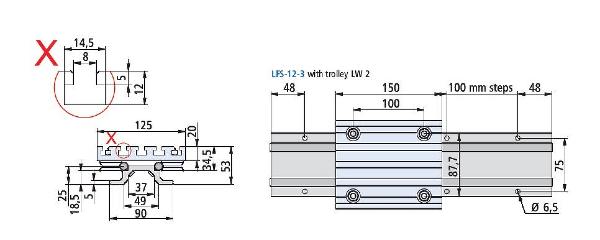

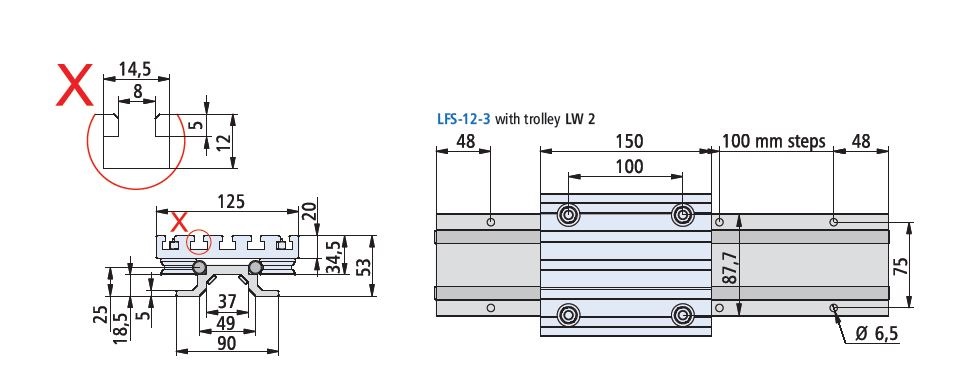

	LW 2 T Slot V Roller Bearing V rolllers are sealed and are ideal for dusty environments T Slot surface makes it easy to mount parts and service payloads - just loosen the T nuts, service the part and retighten the T nuts! Part # 223005 Specifications Dimensioned drawing Solid Model

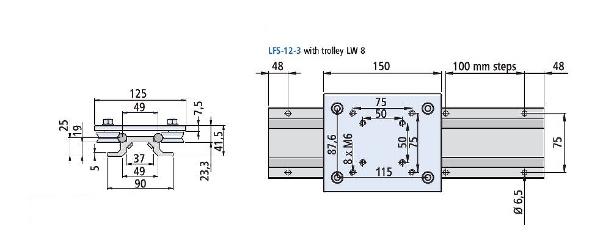

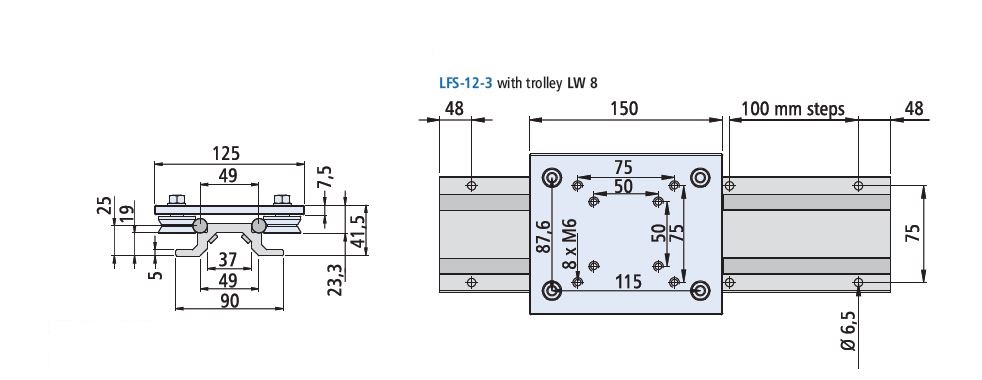

	LW 8 V Roller Bearing with Ground Steel Plate V rolllers are sealed and are ideal for dusty environments Ground steel bearing plate is durable and stiff against cantilevered loads Part # 223013 Specifications Dimensioned drawing Solid Model
	WS 7/70 Short Recirculating Linear Bearing Load is distributed among the many ball bearings Can be used in any orientation Preadjusted for zero play and long life Part # 223107 0070 Specifications Dimensioned drawing Solid Model

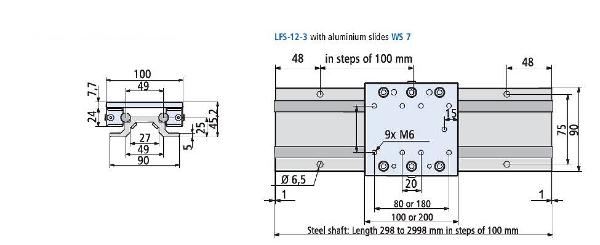

	WS 7 Long Recirculating Linear Bearing Load is distributed among the many ball bearings Can be used in any orientation Preadjusted for zero play and long life Part # 223107 Specifications Dimensioned drawing Solid Model
