iMC S8 Multi Axis Stepper Controller

  • Stepper Motor Controller imc-S8

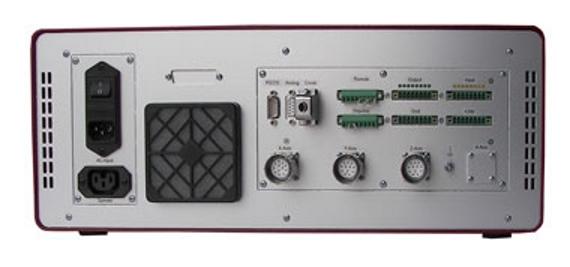

  • Stepper Motor Controller imc-S8 - rear view

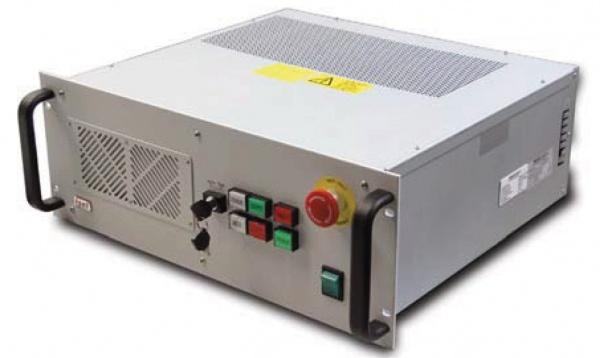

  • Stepper Motor Controller imc S8-Rack Mount
Click image to enlarge
This High Power Multi Axis stepper controller is shipped READY TO RUN OUT OF THE BOX.
It includes the controller, drivers, power supply, I/O, internal wiring and enclosure.
  • This unit can control from 2 to 4 axes of motion and can always be expanded up to 4 axes
  • Current can be DIP Switch adjusted for each axis between 2.8A-7.8A/phase
  • Axes can individually be adjusted from HALF STEP up to 200 microsteps/step
  • The controller is also suppied with PAL-PC motion control software.  This is an English language like programming system that lets the user quickly develop automation programs.
  • System will take approximately 350 commands
  • Programs are stored in battery backed memory - turn on the controller and hit START
  • The S8 controller has
    • a spindle on/off relay, up to 220V/6A
    • 8 inputs at 24VDC,
    • 8 outputs at 24VDC/300mA or total of 2A consumption,
    • 1 analog output 0-10V for inverter speed control
  • Runs off 120VAC or 220VAC
  • Compatible with all 2 or 4 phase stepper motors that take up to 3-3.5A/phase
  • Motor brake relay built in for 24VDC power-off brake
    • activates automatically when power is engaged
    • can be turned on/off with program control
    • Available on all 4 axes
  • Controller can be programmed in 3 modes
    • Standalone mode with program stored in battery backed memory
    • In DNC or direct control mode from ASCII commands sent over RS232 line
    • From LabVIEW with free LabVIEW Drivers
