Ball Screw Lubrication: Best Practices and Solutions

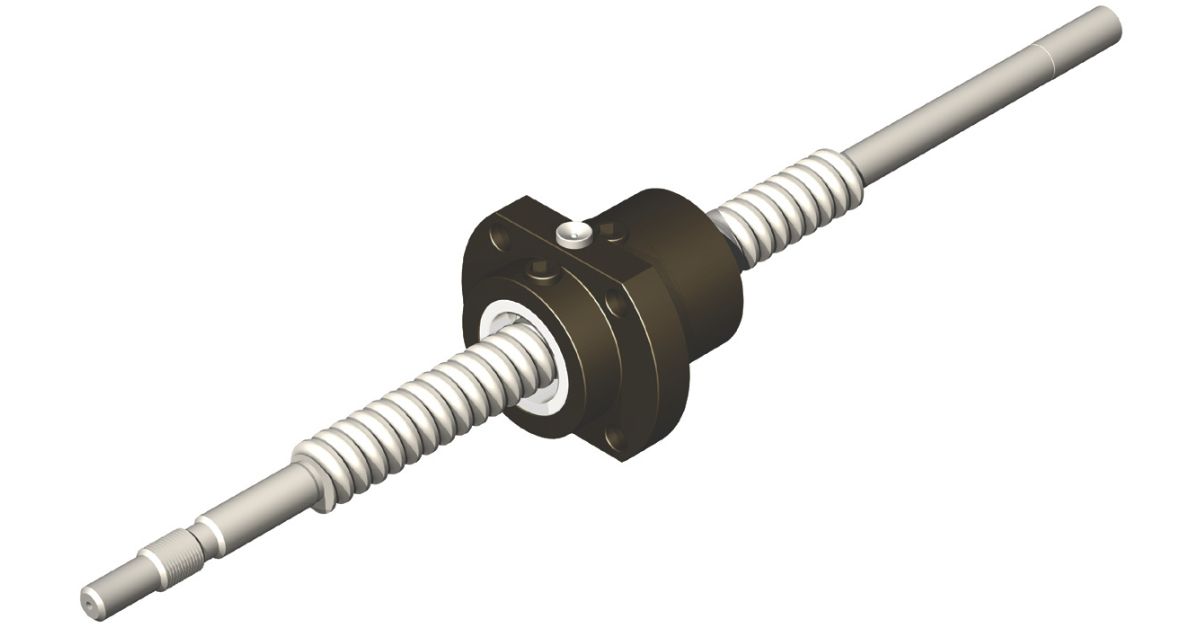

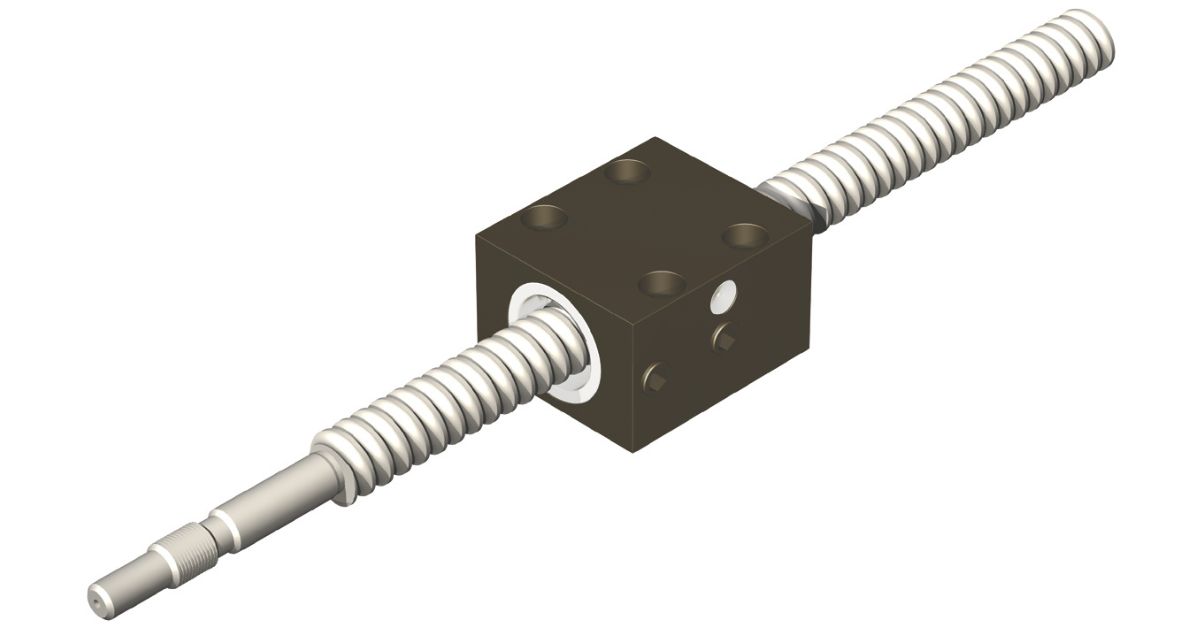

Ball screws are essential components of many precision machinery systems, ensuring smooth and efficient motion. These mechanical devices convert rotary motion into linear motion, providing high precision and reliability in operation. However, regular maintenance and proper lubrication are essential for optimal performance and extended service life. Lubrication is fundamental for maintaining efficiency, preventing wear, and reducing the risk of mechanical failure.

Neglected lubrication can lead to a decline in machine performance, resulting in costly downtime and increased repair expenses. Learning the best practices and solutions for ball screw lubrication will help ensure the longevity and reliability of these critical components.

The Importance of Ball Screw Lubrication

Proper lubrication reduces friction between the ball screw and the nut, which minimizes wear during operation. This helps the system maintain its high level of accuracy and efficiency over time. Without sufficient lubrication, increased friction can lead to overheating, material degradation, and eventual system failure.

Effective lubrication prevents contamination by acting as a barrier against dust, debris, and moisture. This protective layer is essential for applications exposed to harsh environmental conditions. Regularly applying the correct lubricant allows smooth operation and ensures consistency in performance.

Types of Lubricants for Ball Screws

Selecting the appropriate lubricant for ball screws involves understanding the various types available and their specific benefits. Here is a detailed list of common lubricant types used for ball screws.

Grease

Greases are semisolid lubricants with high viscosity, making them suitable for applications with intermittent motion. They provide long-lasting lubrication and are ideal for environments requiring minimal lubrication. Greases often include additives for better corrosion protection and enhanced load-handling performance.

Oil

Oils are liquid lubricants suitable for continuous operation. Their low viscosity allows for easy flow and uniform distribution across the ball screw threads. They are ideal for use in an automated lubrication system to maintain performance during extended use.

Dry Lubricant

These involve solid lubricants such as graphite or PTFE, which are common in environments where traditional oils or greases are unsuitable, such as those in extreme temperatures or vacuum conditions. Dry lubricants reduce friction without attracting dirt or debris, offering clean and reliable performance.

Synthetic Lubricant

Synthetic lubricants offer high performance and stability in varying conditions. They are longer-lasting and less prone to breakdown compared to traditional options, making them ideal for heavy-duty or high-speed ball screw applications.

Specialty Lubricant

Specialty lubricants handle unique conditions, such as high temperatures, low temperatures, or high-pressure environments. Their formulations often include anti-wear properties, rust inhibitors, and other additives to ensure optimal performance in specialized settings.

Selecting the Right Lubricant

When selecting a lubricant for ball screws, it is essential to consider application-specific factors, including speed, load, and operating environment. Systems subject to high loads and extreme temperatures benefit from lubricants with exceptional thermal and mechanical properties.

The right compatibility with materials is essential. Working with high-quality ball nuts and seals ensures uninterrupted performance. Consulting the manufacturer’s recommendations is the best starting point for selecting a lubricant tailored to your system’s needs.

Proper Lubrication Application Techniques

Achieving an even and thorough application is essential to optimizing performance. Manual application methods can be effective for small-scale systems, especially when there is steady lubrication across the ball screw and nut interface. Automated systems are ideal for larger setups or high-speed operations, delivering consistent amounts of lubricant at regular intervals. Regardless of the approach, you must be careful to avoid over-lubrication, which can attract contaminants and lead to operational inefficiency.

Maintenance Schedules and Lubrication Frequency

Establishing an effective lubrication schedule is key to ensuring the long-term reliability of ball screws. Frequency varies based on factors such as load, speed, and environmental exposure. High-speed systems generally require more frequent lubrication to prevent overheating and wear.

Periodic inspections help identify early signs of inadequate lubrication, such as increased noise or reduced precision. Proactively addressing these issues will help you avoid costly repairs and maintain your system’s productivity.

The Role of Environmental Conditions in Lubrication

Environmental factors such as temperature, humidity, and exposure to contaminants determine the effectiveness of lubrication. Systems operating in high-temperature environments require lubricants that can resist thermal breakdown. Moist environments need lubricants with superior corrosion prevention properties. Understanding the impact of environmental conditions will help you select and maintain the most effective lubricant for your specific needs.

Common Lubrication Mistakes To Avoid

One common mistake is failing to clean the ball screw assembly before lubrication. Contaminants left behind can affect the performance and lead to premature wear. Ensuring a clean application surface enhances the effectiveness of lubricants.

Another frequent error is using a generic lubricant rather than one specifically designed for ball screw systems. Generic lubricants may lack the necessary properties to effectively handle the unique requirements of ball screws, resulting in poor performance over time.

Upgrading to Advanced Lubrication Solutions

Advancements in lubrication technology have led to the development of specialized products tailored to high-performance systems. These include lubricants with nano additives that reduce wear and heat buildup during intensive operations. Centralized lubrication systems offer another innovative solution that delivers consistent lubrication across multiple points in a system. By investing in these advanced technologies, businesses can achieve greater efficiency and reliability in their ball screw systems.

Inspecting Lubrication Effectiveness

Inspecting your lubrication’s effectiveness ensures system performance and equipment longevity. Regular inspections involve monitoring key indicators such as the lubricant’s viscosity, contamination levels, and overall condition to assess its functionality. Evaluating these factors helps identify issues such as degradation, contamination, or uneven distribution of the lubricant, which could compromise the system’s efficiency. These assessments, as part of a thorough maintenance routine, can identify potential problems early, allowing for corrective actions to optimize lubrication and prevent expensive equipment failures.

Long-Term Benefits of Proper Lubrication

Proper lubrication offers numerous long-term advantages, including extending the lifespan of ball screw systems, minimizing downtime, and improving overall system accuracy. By reducing friction and wear, lubrication ensures smooth and efficient operation, contributing to optimal performance.

Over time, it also leads to significant cost savings by lowering the need for repairs and replacements. Adopting high-quality lubrication practices ensures the durability and reliability of these systems over prolonged periods.

The best practices for ball screw lubrication include maintenance that enhances the performance and durability of critical components while safeguarding the broader operational efficiency of the systems they support. By reducing wear, preventing contamination, and minimizing energy loss, lubrication maintains precise motion and load-handling capabilities. Companies that prioritize the use of high-quality lubricants and adhere to regular maintenance schedules position themselves for long-term success, maximizing productivity while minimizing unplanned disruptions.
