Cartesian vs. SCARA vs. 6-Axis Robots: What’s the Difference

Advances in robotics and automation are rapidly revolutionizing industries around the globe. Robots are integral in boosting productivity, enhancing efficiency, and ensuring accuracy.

Among the diverse options available today, three types of industrial robots dominate the field: Cartesian, SCARA, and 6-Axis robots. Each type has unique characteristics, strengths, and use cases, making them exceptional for specific applications, from precision manufacturing to complex assembly lines.

Understanding the differences between Cartesian, SCARA, and 6-axis robots is essential to selecting the ideal solution that meets your operational requirements for businesses considering automation. This guide explores the definition, design features, advantages, disadvantages, and common applications of each type.

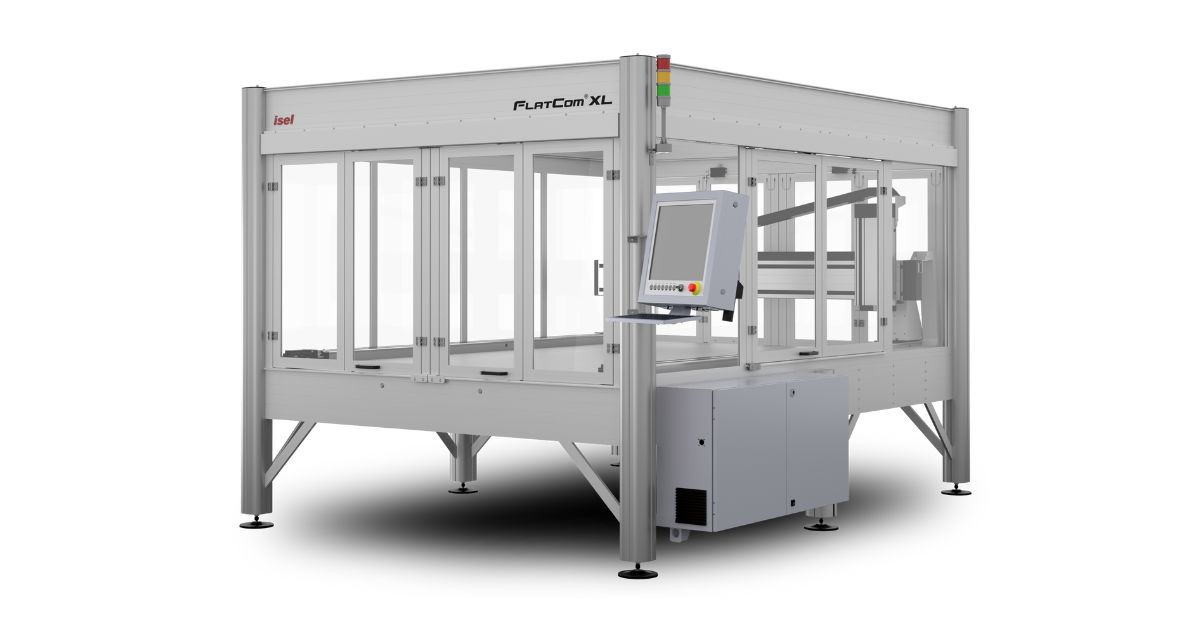

What Are Cartesian Robots?

Cartesian, or linear robots, operate using three linear axes that move along X, Y, and Z coordinates. They received their name after the Cartesian coordinate system, which defines their movement. Constructed with rigid structures, they are ideal for tasks requiring high levels of precision and repeatability. Their simplicity makes them easy to program, and they can handle linear motions with utmost precision.

Advantages

• Simple and cost-effective design.
• High precision for linear tasks, such as pick-and-place operations.
• Easy to customize and scale to larger or smaller sizes.
• Ideal for applications such as CNC machines and 3D printing.

Disadvantages

• Limited in their range of motion; incapable of performing rotating actions.
• Require significant floor space due to their long and rigid design.
• Can be challenging to set up for constrained spaces or complex movements.

Applications of Cartesian Robots

Cartesian robots have diverse applications across various industries due to their precision, reliability, and adaptability. Their accuracy and straightforward programming make them ideal for material handling tasks, such as picking, placing, and transporting items along production lines.

Quality Cartesian robots excel in dispensing applications, where controlled movement is critical for even distribution of adhesives, sealants, or other materials. The manufacturing and electronics industries rely on these robots for tasks such as PCB assembly, inspection, and intricate manufacturing processes.

What Are SCARA Robots?

Selective Compliance Assembly Robot Arm (SCARA) robots offer high-speed precision within a compact layout. These robots have two parallel rotary joints, giving them a range of horizontal motion while remaining vertically rigid. SCARA robots have a cylindrical workspace and rotational flexibility, making them faster and more agile than Cartesian robots. They are ideal for assembly applications.

Advantages of SCARA Robots

• Compact design saves space in factory settings.
• Agile and faster than Cartesian robots for certain operations.
• High repeatability for precise movements.
• Cost-effective for small to medium-scale applications requiring rapid assembly.

Disadvantages of SCARA Robots

• Limited range of motion compared to 6-Axis robots.
• Less capable of performing actions outside the horizontal workspace.
• Lower payload capacity than other robot types.

Applications of SCARA Robots

SCARA robots are versatile and excel in various industrial applications, prioritizing speed, accuracy, and efficiency in repetitive tasks. Their ability to perform pick-and-place tasks with minimal delay makes them indispensable in packaging industries for sorting, labeling, and palletizing products.

They also play a significant role in the pharmaceutical sector by automating delicate processes, such as handling test samples, sorting medications, or assembling medical devices. They excel in activities such as bottling, food handling, and ensuring sanitary operations in the food and beverage industry.

What Are 6-Axis Robots?

6-Axis robots are versatile and can move in six degrees of freedom, allowing them to replicate the movement of a human arm. Their capability to rotate freely on multiple axes makes them the go-to choice for tasks requiring flexibility and adaptability. The most notable feature of 6-Axis robots is their range of motion. They can perform complex tasks that involve rotation, twisting, and tilting, making them an excellent choice for sophisticated manufacturing processes.

Advantages of 6-Axis Robots

• Unparalleled flexibility due to their six degrees of freedom.
• Ability to handle a range of tasks in different orientations.
• Capable of working in compact and constrained spaces.
• High adaptability for dynamic applications.

Disadvantages of 6-Axis Robots

• More expensive than Cartesian and SCARA robots.
• More complex to program and maintain.
• Higher power consumption due to advanced capabilities.

Applications of 6-Axis Robots

6-Axis robots excel in various applications across various industries due to their flexibility and precision. In the automotive sector, they are integral for welding car frames, painting surfaces with uniform coverage, and assembling intricate components. The aerospace industry also heavily relies on 6-Axis robots for precise drilling, fastening, and composite material layup, ensuring accuracy in complex manufacturing processes.

Metal fabrication industries use these robots for cutting, grinding, and polishing, where precision and repeatability are critical. They perform greatly in electronics for circuit board assembly, in health care for medical device manufacturing, and even in the food and beverage industry for packaging, sorting, and quality control.

Factors To Consider When Choosing a Robot

Selecting the right type of robot is a critical decision that depends on various factors tailored to the specific needs of the application. This detailed list will guide the decision-making process.

Task Complexity

Identify the complexity of the task the robot will perform. Simple pick-and-place actions may require basic Cartesian robots, while intricate assembly or welding tasks might necessitate 6-Axis robots.

Precision and Accuracy

Evaluate the precision and accuracy required for the application. Tasks that involve handling delicate materials or need exact measurements will benefit from highly accurate robotic systems.

Load Capacity

Consider the payload the robot will need to handle. Heavier objects may demand robust robots with higher load capacities, such as 6-Axis models.

Budget and Cost Efficiency

Determine your budget and consider the total cost of ownership, including the initial investment, maintenance, and potential upgrades. Choose a robot that meets functional requirements without exceeding financial constraints.

Scalability and Future-Proofing

Consider whether the automation process may need to expand or evolve. Choose a robot that offers flexibility for future upgrades or integration with other systems.

Durability and Reliability

Ensure the build quality and materials can withstand the environmental conditions of the workplace, such as extreme temperatures or exposure to dust and debris.

Maintenance Requirements and Longevity

Effective maintenance ensures the longevity and optimal performance of robotic systems. Cartesian robots require simpler and less frequent upkeep, making them cost-effective in the long run. SCARA and 6-Axis robots, though highly versatile and capable of complex motions, demand more specialized servicing due to their intricate structures and advanced components.

Regular inspections, lubrication, cleaning, and timely replacement of worn-out parts are essential for all robotic systems to minimize downtime and prevent unexpected failures. Implementing predictive maintenance strategies, such as monitoring system performance through sensors or analytics, can help identify potential issues before they escalate.

Understanding the differences between Cartesian, SCARA, and 6-Axis robots is essential for businesses considering automation. Each robot type offers unique benefits for specific applications. You can integrate the right robotic solution that aligns with your goals by evaluating your operational requirements, budget, and space constraints. Industries can unlock greater efficiency, precision, and flexibility by investing in the right robotic technology, marking another step forward in the age of automation.
