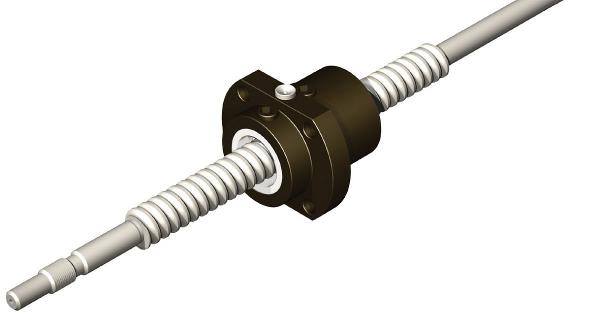

Common Ball Screw Failure Modes and Prevention

Ball screws are an indispensable component in many industries, providing precise linear motion in manufacturing, robotics, aerospace, and more. They are popular for their efficiency, reliability, and capacity to handle high loads, all while ensuring smooth and accurate operation.

However, despite their robust design, ball screws are not immune to wear and failure, especially without proper maintenance or when used in the wrong applications. Failures in ball screws can lead to costly downtime, reduced productivity, or even catastrophic equipment failure.

Understanding the common failure modes in ball screws and how to prevent them is crucial for identifying potential issues early and implementing preventative measures. Whether maintaining industrial machinery or designing automated systems, awareness of these failure modes can help you extend the lifespan of quality ball screws while optimizing the performance of your equipment.

Lack of Proper Lubrication

One of the primary reasons ball screws fail is inadequate or inconsistent lubrication. Lubrication is crucial to minimize friction between the ball bearings and the screw, as it reduces wear and protects surfaces from rust or corrosion. With neglected or reduced lubrication, heat and friction increase significantly, causing excessive wear and potentially leading to seizing or binding of the ball screw.

Prevention

Develop a thorough lubrication schedule that includes cleaning the components to remove debris and residual contaminants before applying fresh lubricant. Invest in an automatic lubrication system for high-demand or continuous-use applications that ensures consistent lubrication in the correct amounts, reducing the risk of human error.

Contamination and Debris

Contaminants such as dust, dirt, or metal shavings can infiltrate the ball screw mechanism, leading to severe operational issues. When particles enter the ball screw, they interfere with smooth motion, causing premature wear. Over time, contamination can also damage the raceways and reduce efficiency.

Prevention

Use high-quality seals or wipers designed to keep out dust, dirt, and other harmful particles. House the ball screw assembly within an enclosed or controlled environment, particularly in areas prone to high contamination levels or extreme conditions.

Overloading

Ball screws handle specific loads, so you must choose the one that fits your operational needs. Overloading occurs when the forces applied exceed the rated capacity of the ball screw. This can lead to deformation of the balls or the screw, resulting in increased wear, operational instability, and in extreme cases, total failure.

Prevention

To prevent overloading, adhere strictly to the manufacturer's recommended load limits for the ball screw. Evaluate the application to ensure that the loads align with the ball screw's capacity. If there is any possibility of exceeding these limits due to unexpected forces, dynamic impacts, or operational changes, consider upgrading to a ball screw with a higher load rating.

Misalignment

Even the highest quality components cannot withstand prolonged misalignment. If the ball screw and the system it operates poorly align, this mismatch can create uneven wear patterns, generate unnecessary stress on parts, and increase the risk of failure. Misalignment is often due to improper installation or inadequate support.

Prevention

To prevent misalignment effectively, adopt a proactive approach starting from the system's design phase. Carefully plan for proper geometric alignment by conducting precise calculations and tolerance checks to ensure compatibility between the ball screw and its supporting components. Use precision alignment tools such as dial indicators, laser alignment systems, or optical devices for accurate positioning during installation.

Corrosion

Corrosion is another common enemy of ball screws, particularly in environments with high humidity, exposure to water, or harsh chemicals. Rust and corrosion compromise the strength and smoothness of the screw and balls, eventually leading to diminished performance or a complete breakdown.

Prevention

Utilizing corrosion-resistant materials such as stainless steel or chrome-plated surfaces can provide a durable first line of defense against rust and chemical damage. Applying specialized protective coatings, such as anti-corrosion spray or ceramic finishes, can significantly increase resistance to harsh environmental factors.

Fatigue Failure

Fatigue failure occurs gradually when a ball screw handles repeated stress cycles over time. This wear mode can weaken the material properties of the screw or balls, resulting in cracking, pitting, or spalling on the raceways or balls themselves.

Prevention

Avoid exposing the assembly to excessive or repetitive stress cycles, which can accelerate wear and lead to material degradation. Selecting quality ball screws with enhanced fatigue resistance, superior materials, and advanced manufacturing processes can significantly increase the durability and lifespan of the system.

Temperature Extremes

Extreme heat or cold can cause ball screws to fail prematurely. High temperatures can reduce lubricant effectiveness, leading to increased wear, while cold temperatures can cause brittleness or material contraction, making components susceptible to cracking.

Prevention

For high-temperature environments, choose materials with high thermal resistance and lubricants that maintain their viscosity and effectiveness at elevated temperatures. In cold conditions, use materials that retain their structural integrity and flexibility and lubricants designed to remain fluid and functional in low temperatures.

Brinelling and Surface Damage

Brinelling occurs when the ball screw manages heavy external forces, causing permanent indentations on the raceways. This damage can compromise the precision and smooth movement of the assembly, leading to rapid wear.

Prevention

Handle ball screws with extreme care throughout all stages of their use, including transportation, storage, installation, and operation. Regularly inspect and maintain the surrounding equipment to reduce the likelihood of sudden force applied to the ball screw.

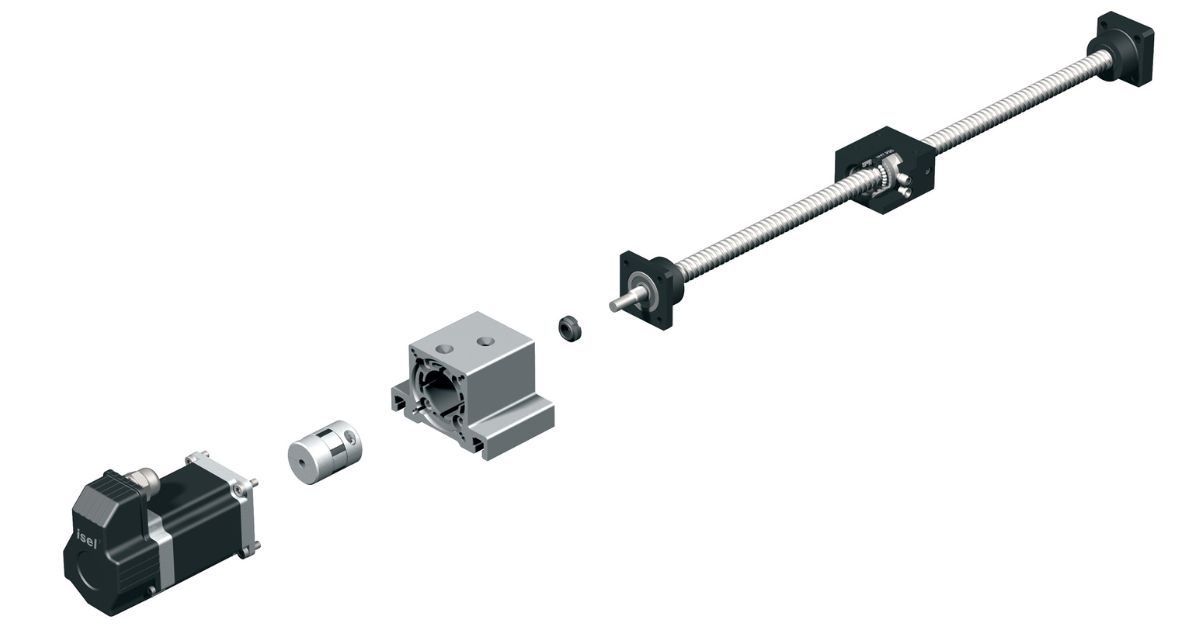

Improper Assembly or Installation

Incorrect assembly is a more common failure mode than one might expect. Installing the ball screw without adhering to guidelines can introduce unnecessary stresses or operational issues. Poor installation practices often manifest as early wear, mismatch of components, or diminished precision.

Prevention

Meticulously adhere to the manufacturer’s installation guidelines, as deviation from these instructions can lead to unnecessary stresses, premature wear, or reduced operational precision. Verify that all mounting surfaces are clean, flat, and free of contaminants that could compromise the assembly. Consider consulting experienced professionals or technicians for assistance, especially in complex setups, as their expertise can significantly reduce the risk of errors.

Ball screws are a vital part of many precision-driven systems, but even the most durable designs require proper use and maintenance to remain reliable. By understanding common ball screw failure modes and preventive measures, you can significantly extend the service life of ball screws while maximizing the performance of your equipment.

Investing in quality ball screws and adhering to best practices ultimately ensures cost savings, reduced downtime, and better overall machine efficiency. Proactive care and attention are key to preventing avoidable problems and keeping systems running smoothly in the long term.
