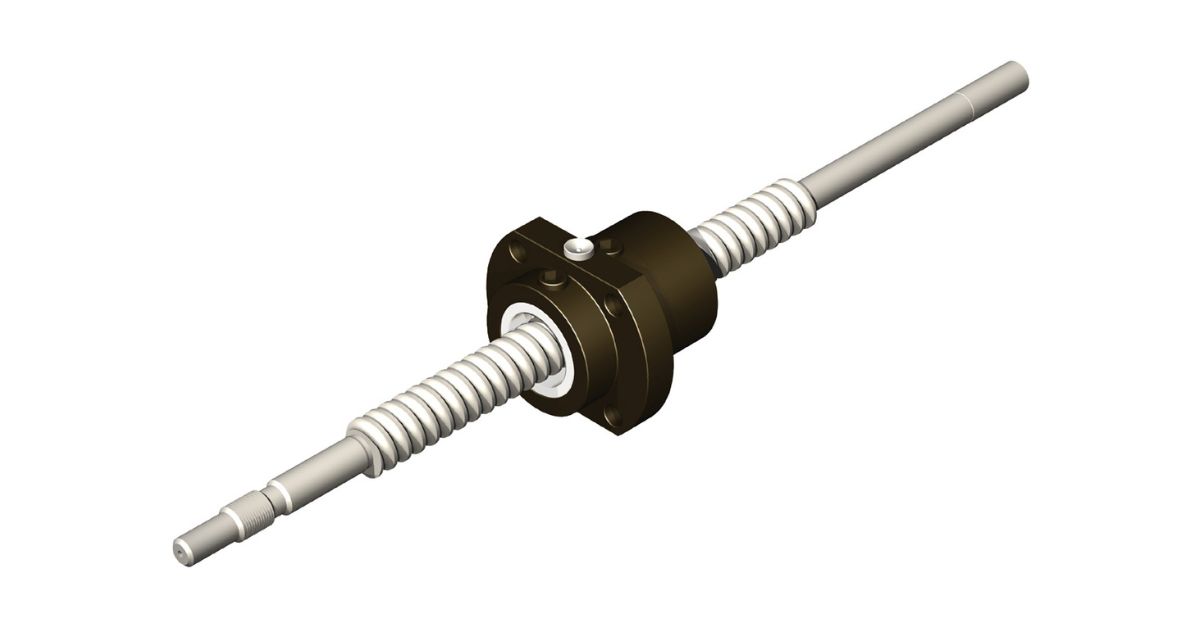

Ground Ball Screws vs Rolled Ball Screws: The Differences

Ball screws are essential mechanical components that translate rotational motion to linear motion with minimal friction. Many industries rely on their precision and efficiency for automated machinery and complex systems. The choice between different types of ball screws often defines the performance of the final application.

Two primary manufacturing methods produce the ball screws available today: grinding and rolling. Each method imparts distinct characteristics to the final product, which affects its suitability for specific tasks. Understanding the differences between ground ball screws and rolled ball screws allows engineers and designers to make informed decisions for their projects.

Manufacturing Process

Ground ball screws require a heat treatment process that hardens the raw screw shaft material. A precision grinder then cuts the helical groove into the hardened shaft with immense accuracy. This method removes material from the bar stock to create the desired thread raceway form.

Rolled ball screws use a different formation technique to create the screw’s helical raceway. Cold-rolling forms threads on an unhardened shaft using special dies under high pressure. This process displaces material rather than removes it, which creates a strong, compressed surface.

Lead Accuracy

Ground ball screws offer the highest possible lead accuracy due to the precise nature of grinding. The process allows for extremely tight control over the helix dimensions along the screw's length. Machines that need exact positioning over long travel distances often use ground ball screw technology.

Rolled ball screws provide very good lead accuracy suitable for many commercial and industrial applications. While not as precise as ground screws, modern roll techniques produce consistently reliable screw threads. Their accuracy is sufficient for the vast majority of automation tasks that do not require sub-micron precision.

Tolerance and Precision

The grinding process achieves exceptionally tight tolerances on all geometric features of the screw. This precision ensures smooth ball recirculation and predictable movement with almost no deviation from specifications. Applications that demand the highest degree of repeatability benefit from these very tight production tolerances.

Rolled ball screws have wider tolerances than their ground counterparts due to the forming process. However, advanced roll technology has improved its precision over time to meet many performance needs. These screws offer a cost-effective solution for applications where absolute peak precision is not a must.

Surface Finish

Grinding produces a very smooth, polished surface finish on the ball screw's helical raceway. This fine finish reduces friction between the balls and the groove for efficient operation. The smooth surface also contributes to the component's quiet performance and overall long operational life.

Rolled ball screws feature a work-hardened surface that is smooth but not finely polished. The cold roll process compresses the material's grain structure, which creates a durable raceway. This compressed surface resists wear and fatigue well, though it is less refined than ground surfaces.

Load Capacity

Ground ball screws can support substantial static and dynamic loads due to their hardened material. The precision of the raceway ensures even load distribution among the ball bearings. This even distribution helps prevent premature wear and failure under significant operational stress loads.

Rolled ball screws exhibit high load capacity due to their work-hardened thread surfaces. The cold roll process strengthens the material, making it resistant to deformation under heavy loads. Investing in high-quality precision rolled ball screws is the best way to handle many demanding applications.

Backlash Considerations

Manufacturers can produce ground ball screws with minimal or zero backlash for superior positioning accuracy. Preload application, a common practice with ground screws, eliminates the axial play between the nut and screw. This feature makes them ideal for machine tools and measurement equipment that require firm stiffness.

Rolled ball screws typically have a small amount of backlash inherent in their production process. However, preload methods, such as double-nut fasteners, can reduce or eliminate this play. This makes rolled screws adaptable for applications that require improved positional accuracy without extreme cost.

Operational Efficiency

The superior surface finish of ground ball screws results in very high operational efficiency. Low friction within the nut assembly means less input torque needed for motion. This efficiency can reach over ninety percent, which translates to lower energy use for machinery.

Rolled ball screws also provide high efficiency, often comparable to ground ball screw performance. The smooth, hardened raceways allow the balls to move with very little resistance or drag. This makes them a great energy-conscious choice for a wide variety of automated mechanical systems.

Longevity and Wear

Ground ball screws offer a long service life, especially under well-controlled operational conditions. Their precise geometry and smooth surfaces reduce wear on the balls and the raceway itself. Proper lubrication and maintenance will ensure that they perform reliably for many operational cycles.

The compressed grain structure of rolled ball screws gives them excellent fatigue resistance and durability. This inherent toughness helps them withstand the rigors of continuous operation over extended periods. With proper care, rolled screws provide a long, dependable service life in many machines.

Cost Comparison

Ground ball screws represent a significant investment due to their complex, multi-step production process. The specialized machinery and time required for grinding add to their overall higher initial cost. Their use is often justified in applications where performance and precision are the top priorities.

Rolled ball screws are much less expensive to produce, making them a cost-effective choice. The high-speed roll process allows for mass production with lower labor and machine time. They offer an excellent balance of performance and price for a broad array of applications.

Application Suitability

High-precision applications such as aerospace systems and semiconductor manufacturing often prefer ground ball screws. Their exceptional accuracy and stiffness meet the strict requirements of these advanced technology sectors. Medical devices and optical instruments also depend on the precision that ground screws provide them.

General factory automation and material transport systems often use rolled ball screws for motion. Their robust performance and attractive cost make them suitable for packaging and assembly lines. Many commercial products that need linear motion also use rolled screws for their reliability.

Choosing between ground and rolled ball screws depends on the specific demands of the application, requiring careful consideration of factors such as precision, durability, cost, and performance. Ground ball screws, with their superior accuracy and minimal lead error, are well-suited for applications that demand the highest levels of precision, such as aerospace, robotics, and medical equipment.

Rolled ball screws strike an excellent balance, offering reliable performance and a more cost-effective solution for less critical applications like general machinery, packaging, and assembly lines. Understanding the unique strengths and limitations of each type will ensure you make informed decisions that optimize efficiency and accuracy to align perfectly with the specific operational requirements.
