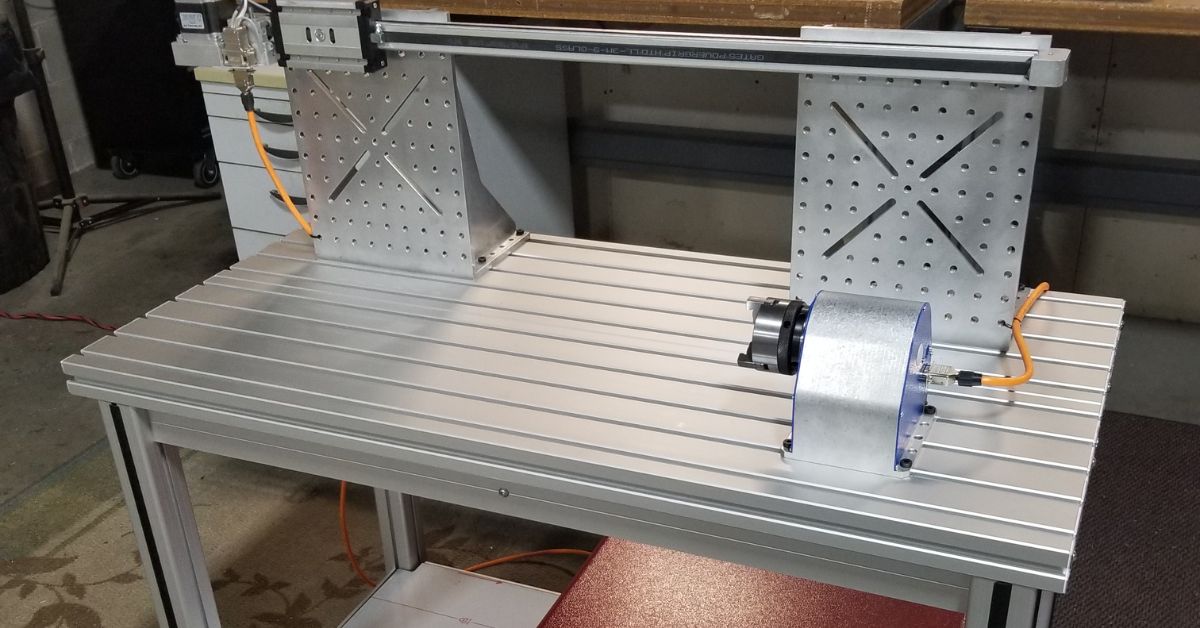

Proper Cleaning and Deburring of T-Slot Fixture Plates

Effective upkeep of industrial equipment demands strict adherence to established protocols and consistent attention to detail. Machine operators must prioritize the condition of their work surfaces to guarantee precision in every task. A T-slot fixture plate is a significant asset in any workshop or production facility.

Neglect of this vital component often leads to accumulated errors and costly project failures. Dirt, metal chips, and coolant residue build up rapidly within the slots and on the surface. This accumulation compromises the flatness required for precise part alignment and secure work setups.

Operators must understand that physical damage constitutes a major threat to these precision tools. Small burrs or raised metal edges prevent fixtures from sitting flush against the table surface. These imperfections usually occur from accidental impact with heavy tools or dropped workpieces.

A systematic approach to maintenance ensures that the equipment remains reliable for years. The process involves more than just a quick wipe down after a shift ends. It requires a deep cleanse of the slots where debris tends to hide and harden. Learning proper cleaning and deburring of T-slot fixture plates will help protect the investment and support consistent output quality.

Loose Debris Elimination

You must remove all loose chips and metal shards from the table surface immediately. Compressed air blows away the bulk of the waste material from the deep slots. A vacuum system effectively collects fine dust that settles into the metal pores.

Rigid brushes sweep heavy particles out of the T-slots without damage to the finish. This step prepares the metal plate for a more thorough chemical wash and inspection. Failure to remove solid waste scratches the precision surface under the weight of fixtures.

Surface Scrub Techniques

Use a non-abrasive pad to gently scrub the flat surface of the fixture plate. This action loosens stuck material that the chemical solvent failed to dissolve on contact. Move the pad in circular motions to cover every square inch of the area.

Focus extra effort on areas where stains or discoloration appear on the aluminum surface. Do not use steel wool as it leaves particles that rust on the plate. Finish this step with a final wipe to remove all loosened grime and residue.

Chemical Solvent Application

Select a potent industrial solvent to dissolve grease and coolant residue from the plate. You apply the liquid liberally to the entire top surface and into the slots. Allow the chemical agent time to break down the stubborn grime and dried oils.

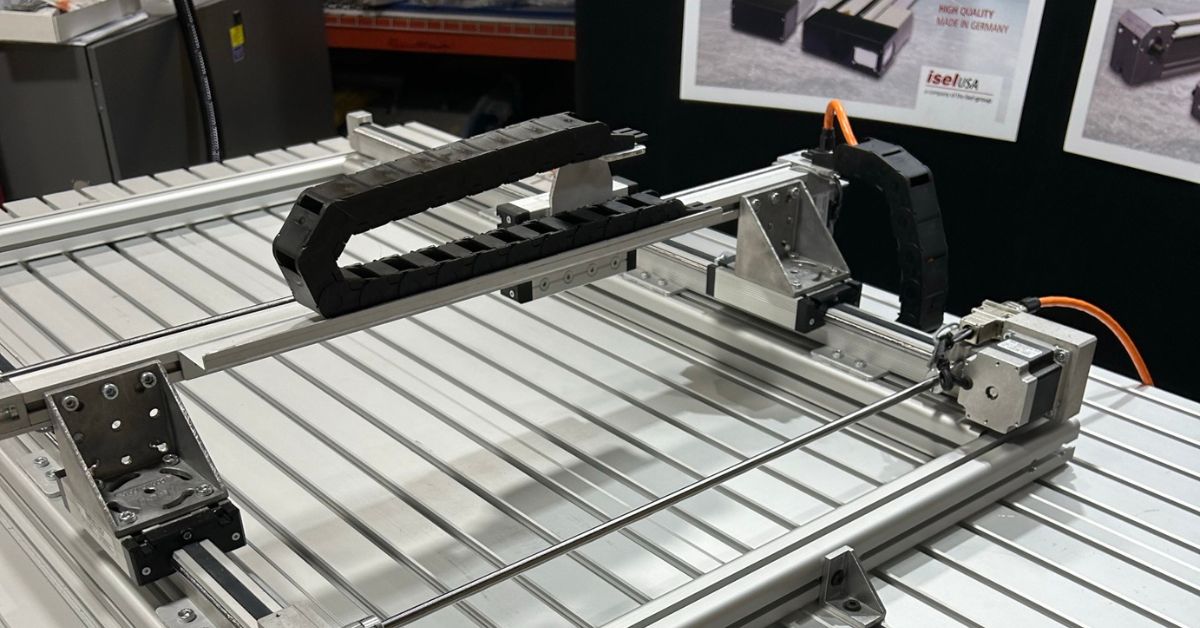

Wipe the dissolved mixture away with clean, lint-free cloth towels to reveal the metal. Repeat this process until the white cloth shows no signs of dark oil stains. Investing in high-quality aluminum extrusion T-slot table plates will ensure long-term value and accuracy.

Slot Inspection Procedure

Check each slot for hidden debris that might block nut movement. Use a strong light source to see deep into the channels of the extrusion. A pick tool helps dislodge compressed chips stuck in the corners of the profile.

Ensure the T-nuts slide smoothly through the entire length of the slot without resistance. Any obstruction in the channel causes delays and frustration in the work setup process. Clear channels allow for fast and secure placement of clamps and other fixture hardware.

Burr Removal Tools

Identify raised metal spots on the surface with a flat precision stone or file. Rub the stone gently over the high places to level them and maintain a consistent surface. You must keep the stone flat to avoid the creation of low spots in aluminum.

Stop the abrasion work the moment the stone glides smoothly over the damaged area. Excessive removal of material permanently ruins the flatness tolerance of the expensive fixture plate. Check your progress frequently with your hand to feel for any remaining rough edges.

Stone Usage Protocols

Soak the precision stone in a light oil or kerosene before you start work. The fluid prevents the stone from clogging with aluminum particles during the smoothing process. Move the stone in a figure-eight pattern to ensure even wear on the tool.

Clean the stone frequently to maintain its cutting ability and prevent scratches on plates. Store the stone in a protective box to keep it flat and safe. A damaged stone does more harm than good to your precision fixture plate surfaces.

Rust Defense Methods

Apply a thin coat of rust inhibitor to the steel components of the system. Aluminum plates resist rust, but the steel T-nuts and studs remain vulnerable to corrosion. Moisture in the air attacks bare metal surfaces rapidly if you leave them unprotected.

Wipe down the entire assembly with a light oil mist at the end of shifts. This barrier seals out humidity and prevents oxidation from starting on the metal parts. Regular application of oil keeps the system looking new and functioning without any issues.

Bolt Hole Care

Inspect threaded holes for stripped threads or damage from over-tightened bolts and fixture clamps. Run a tap through the threads to clean out old, dried locking fluids or dirt. Blast the holes with air to remove any loose material produced by the tap.

Replace any helical inserts that show signs of wear or pull-out from heavy loads. Secure threads hold the workpiece securely and prevent vibration during machine operations. Ignore damaged threads, and you risk parts coming loose and causing catastrophic tool crashes.

Maintenance Schedule Plans

Set a specific time each week to deep-clean all fixture plates. Assign this task to a responsible operator who understands the value of the equipment. Log the completion of these tasks to ensure accountability and consistency in the shop.

perform a quick visual check before every new setup to catch problems early. Address minor issues immediately to prevent them from growing into major repair jobs later. Consistent care reduces downtime and maintains the high precision capability of the machine shop.

Storage Systems Logic

Store the plates in a vertical rack to prevent damage from stacked heavy items. Ensure the storage area remains dry and free from drastic temperature swings and fluctuations in humidity. Cover the plates with a canvas sheet to keep dust from settling on surfaces.

Separate the plates with foam spacers if you must stack them flat on shelves. Never place heavy steel tools directly on top of the aluminum plates in storage. Proper storage habits protect the flatness and surface finish while the plates sit idle.

Proper cleaning and maintenance of T-slot fixture plates are the foundation of precision manufacturing. Operators who respect their equipment and adhere to these strict protocols achieve superior results. These habits prevent the gradual degradation of the work surface that leads to errors; a clean, flat table surface allows for faster setups and more reliable measurements.

Management must support these efforts with the provision of proper tools and necessary time. When the entire team values the condition of the equipment, production quality rises naturally. Through consistent care and attention, these tools will serve the facility well for decades.
