T-Slot vs. Drill-and-Tapped Fixture Plates: Pros and Cons

Fixture plates provide the foundation for countless manufacturing and fabrication projects across many industries. They securely hold workpieces for precise operations, a fundamental requirement for quality results. Two popular options dominate the market: T-slot plates and drill-and-tapped plates.

Deciding which fixture plate to use depends on the specific application, budget, and desired level of flexibility. Learning the pros and cons of T-slot and drill-and-tapped fixture plates will help you select the ideal solution for better results. You must know how to consider materials, rigidity, clamping methods, and other vital factors for your projects.

Materials and Basic Construction

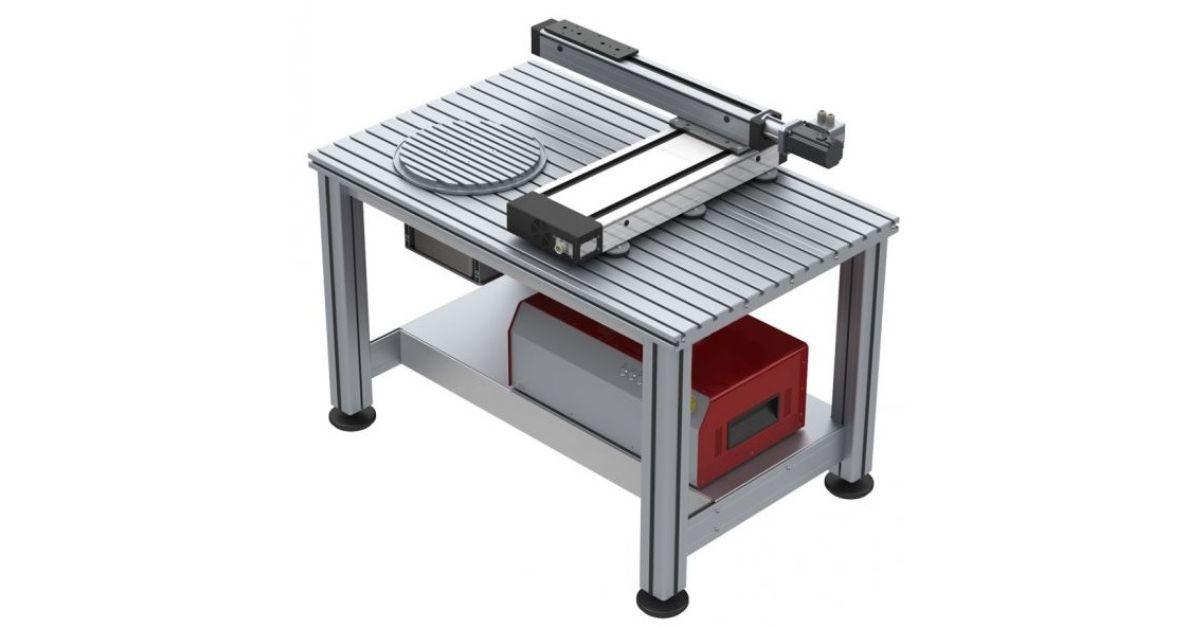

T-slot plates often use aluminum for its lightweight properties and excellent corrosion resistance. Aluminum helps simplify plate handling and reduce the load on machine tables. Steel or cast-iron options exist for applications that demand extreme durability.

Drill-and-tapped plates typically come from steel or cast iron for maximum strength. These materials resist wear from repeated fastener use and offer superior vibration dampness. The simple grid of threaded holes defines their straightforward, robust construction for heavy tasks.

Rigidity and Stability

T-slot plates offer a versatile, efficient solution for applications that require rigidity and stability, with unique advantages that set them apart from drill-and-tapped plates. The slots allow for quick, easy adjustments of clamps, fixtures, and workpieces for greater flexibility across diverse machining tasks. This adaptability makes them ideal for setups that require frequent reconfigurations or multiple components.

Drill-and-tapped plates, by contrast, prioritize maximum rigidity through their fully solid surface. This uninterrupted construction provides uniform support and exceptional strength during high-force operations, making them superior for applications where stability trumps adaptability.

Clamping Methods and Ease of Use

T-slot plates use special T-nuts that slide freely along the channels for placement. This design allows for infinite adjustments of clamp positions along the length of the slot. Operators can quickly position and secure fixtures almost anywhere on the plate's surface.

Drill-and-tapped plates require bolts that screw directly into the pre-threaded holes. Clamping locations are right on the grid, which limits some placement options. This method offers a very secure connection, but with less immediate position flexibility.

Modularity and Flexibility

T-slot systems excel in modularity, a key advantage for adaptable production environments. You can easily add, remove, or reposition components without major plate modifications. A high-quality aluminum T-slot plate is the best solution to create diverse, reconfigurable setups.

Drill-and-tapped plates offer limited modularity due to their fixed hole pattern. Any change outside the grid may require a new custom plate for the job. This makes them less suitable for jobs that need frequent or unpredictable setup changes.

Maintenance and Surface Integrity

T-slot channels can accumulate chips, coolant, and other debris from machine work. Regular cleanouts are necessary to ensure smooth clamp movement and proper T-nut function. The open channels require consistent attention to maintain their operational effectiveness over time.

Drill-and-tapped plates have a flat surface that simplifies chip and fluid removal. However, the individual threaded holes can also collect debris and require separate cleanouts. Damaged threads from cross-thread events or overuse can compromise the plate’s fixture utility.

Precision and Repeatability

A T-slot plate's precision depends on the manufacturing tolerance of the slot itself. Precise slot widths and straightness ensure accurate and repeatable alignment of all fixtures. High-quality plates offer excellent repeatability for many common manufacturing and assembly applications.

Drill-and-tapped plates provide exceptional positional accuracy due to the fixed hole locations. The grid allows for documented, repeatable setups with very high precision for fixtures. Operators can return to exact coordinates with little effort for consistent production runs.

Versatility in Application

The immense flexibility of T-slot plates makes them versatile for many different tasks. They support odd-shaped workpieces and complex fixture arrangements with considerable ease. This versatility makes them a favorite for prototyping, research, and a wide range of job-shop work.

Drill-and-tapped plates are ideal for dedicated, high-volume production with unchanging setups. Their robust nature suits heavy mill work and other high-force manufacturing processes. They perform best when the workpiece and fixture locations remain consistent over time.

Setup Time and Efficiency

T-slot plates can reduce setup time because of their rapid adjustment capabilities. Operators slide clamps into position without concerns about fixed hole locations on the plate. This quick setup process increases machine uptime and boosts overall shop floor efficiency.

Setups on drill-and-tapped plates can take more time to complete initially. The operator must align the fixture base with the plate’s threaded hole pattern. Once established, however, repeat setups become very fast and require minimal adjustments.

Cost and Initial Investment

High-quality T-slot plates can cost more upfront than other options. The complex milling process to create the slots adds to the total manufacturing cost. The long-term flexibility, however, can often justify the upfront expense for many users.

Drill-and-tapped plates generally have a lower initial purchase price for consumers. The simpler manufacturing process for drill-and-thread operations reduces overall costs but might require more replacements. However, custom plates for specialized jobs can significantly increase the total price.

Common Use Cases

Understanding common use cases ensures their effective and efficient application in various projects. Engineers and manufacturers can select the appropriate plate design and material that will meet their specific requirements, optimizing performance and durability.

T-Slot Plates

The most common use cases are:

• Optical Systems: T-slot plates are useful in the assembly of optical breadboards and test stations due to their flexibility in accommodating various experimental setups.

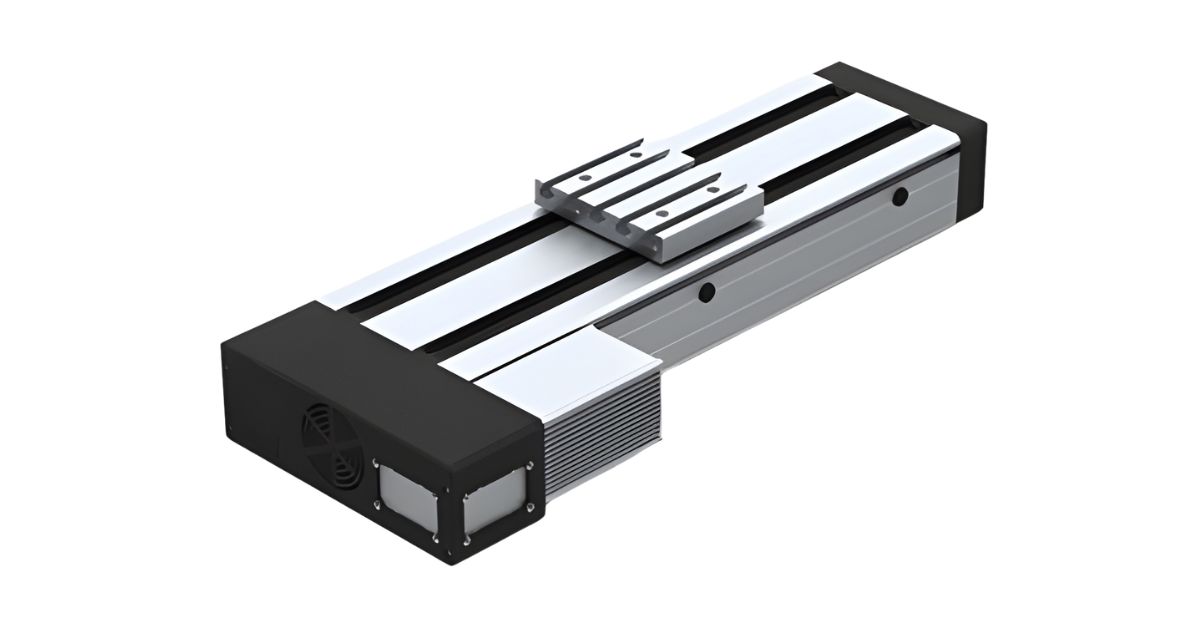

• Robotics: They serve as reliable bases for robotic systems, and they offer adaptability for mounting different fixtures as designs evolve.
• Prototyping and Research: T-slot plates are ideal for environments where project requirements often change, allowing for quick and easy reconfigurations of tools and components.
• CNC Routers and 3D Printers: These plates are popular on CNC router tables and 3D printer platforms, providing a modular and sturdy surface for holding workpieces.

Drill-and-Tapped Plates

The most common use cases are:

• CNC Mill Fixtures: Drill-and-tapped plates shine in CNC milling environments; they offer good rigidity to mount fixtures during machining operations.
• Inspection Jigs: These plates serve as a solid, precise foundation for inspection jigs; they ensure consistent and repeatable accuracy during quality control processes.
• Mass Production: Their ability to maintain exact fixture positions makes them indispensable for mass production setups where consistency is critical.
• Custom Tooling: Drill-and-tapped plates are useful to create custom tooling layouts, allowing for the secure attachment of specialized accessories and workpieces.

When deciding between a T-slot plate and a drilled-and-tapped plate, consider the unique advantages of each and how they align with your specific operational requirements. T-slot plates excel at providing exceptional flexibility, modularity, and quick adaptability, making them ideal for applications that require frequent adjustments or diverse setups.

Drill-and-tapped plates deliver superior rigidity and positional accuracy, which are essential for high-volume, repetitive tasks that demand stability and precision. The right fixture plate will enhance your productivity and ensure consistent quality in your output to maximize the value and performance of your work solutions.
