Understanding Ball Screw Lifespan and ISO Standards
Time to Read: 15m 0s
Ball screws represent the foundation of modern industrial automation and precision machinery. These components translate rotational motion into linear motion with minimal friction, a task they perform with remarkable accuracy. Their application spans numerous sectors, from aerospace and defense to medical devices and manufacturing.
The longevity of a ball screw directly affects machine uptime, maintenance schedules, and overall operational efficiency. A failure can lead to costly downtime and significant repair expenses. To standardize expectations and ensure reliability, the International Organization for Standardization developed specific norms.
These ISO standards provide a common framework for manufacturers and end-users to evaluate and compare products. They define the methodologies for calculating the dynamic load rating and, consequently, the expected life of a ball screw. Understanding ball screw lifespan and ISO standards will allow engineers to select the appropriate component for a specific application.
The Basic Life Rating Formula
The ISO 3408 standard establishes the formula for calculating the theoretical life of a ball screw. This calculation offers a reliable estimate of a component's operational duration under specific load conditions. Engineers use this formula to predict performance and plan for necessary maintenance or replacement activities.
This formula considers the dynamic load rating and the actual applied load on the screw. The relationship between these values dictates the expected number of revolutions before fatigue failure occurs. Proper application of this calculation supports robust and dependable machine design and function.
Dynamic and Static Load Ratings
Dynamic load rating represents the constant axial load a ball screw can endure for one million revolutions. This value is a fundamental parameter for life calculation, determined through extensive testing. Manufacturers provide this specification to help users select the correct screw for their unique needs.
Static load rating defines the maximum non-operating load a ball screw can handle without permanent deformation. This capacity is vital for situations where unexpected shocks or overloads may happen. It ensures the component's integrity even when the machine is not in active operation.
The Role of Load in Lifespan
The magnitude of the applied load has a substantial effect on the lifespan of a ball screw. Heavier loads will significantly shorten the operational life compared to lighter, more consistent forces. This inverse relationship is a core principle in the longevity and performance of mechanical components.
Engineers must accurately determine the complete load profile that an application will place upon the screw. This includes the average load, as well as any peak loads or shock events. A precise load analysis leads to a more accurate life prediction for the component.
Speed and Its Impact on Longevity
Rotational speed is another factor that directly influences the life of a ball screw. Higher speeds increase the frequency of stress cycles on the internal ball bearings and raceways. This acceleration of wear patterns can lead to a shorter overall service duration.
Engineers must balance the need for rapid motion with the desire for a long component life. Some applications demand high velocity, which requires a careful selection of appropriate ball screw specifications. This ensures the component can meet speed and endurance requirements for the machine.
The Importance of Proper Lubrication
Lubrication reduces friction between the balls and the raceway surfaces inside the screw assembly. This reduction in friction minimizes heat generation and slows the rate of material wear. Consistent and adequate lubrication is therefore essential for achieving the calculated lifespan of a component.
The choice of lubricant, whether oil or grease, depends on the application's specific demands. Factors such as speed, load, and operating environment determine the optimal lubrication strategy. A well-executed lubrication plan protects the ball screw and extends its useful operational period.
Environmental Conditions and Their Effects
The operating environment can have a profound impact on a ball screw's performance and durability. Contaminants such as dust, metal chips, or moisture can infiltrate the internal mechanism. This contamination accelerates wear and can cause premature failure of the entire screw assembly.

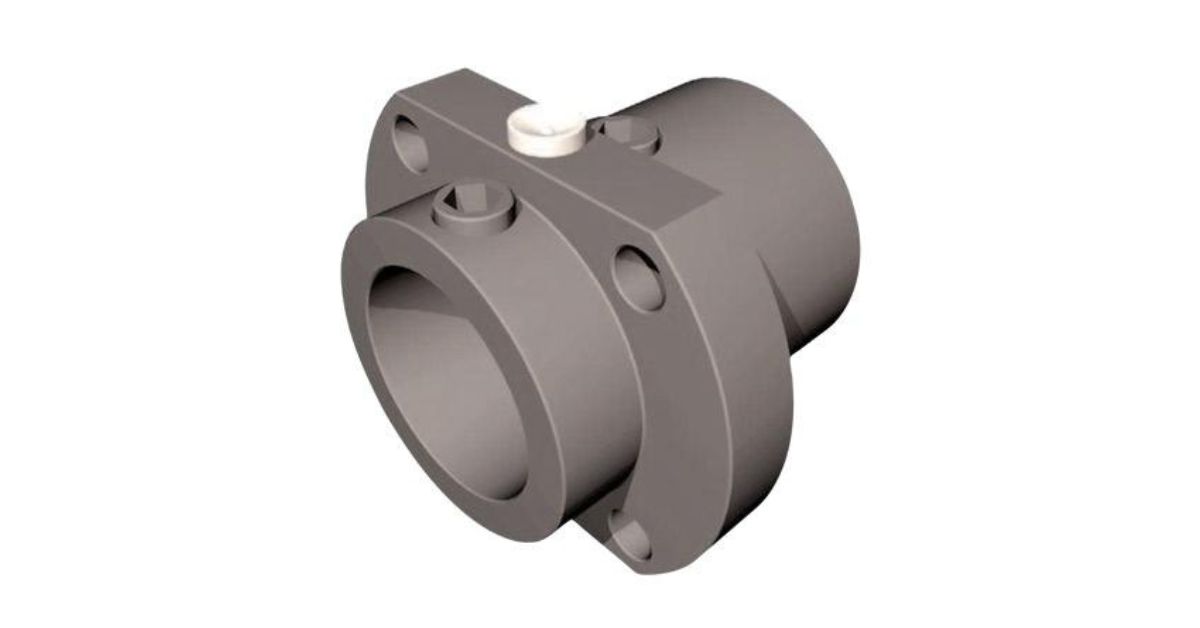

Protective measures like bellows or seals prevent foreign particles from entering the nut. Investing in a high-quality precision-rolled ball will ensure these features work effectively. This proactive approach to contamination control helps maintain the component's internal cleanliness and function.
Alignment and Installation Accuracy
Precise alignment of the ball screw with its support bearings and nut is paramount. Misalignment introduces uneven loads on the ball bearings, which creates concentrated stress points. These stress points can lead to rapid wear and a drastic reduction in operational life.
Proper installation techniques are necessary to achieve the required level of alignment for the system. Technicians should follow manufacturer recommendations to mount the component and its associated parts correctly. Attention to detail during setup helps the system achieve its full performance potential.
Understanding Different Failure Modes
Fatigue failure, or spalling, is the most common failure mode predicted with life calculations. It happens when microscopic cracks beneath the surface propagate and cause material to flake away. This process is a natural result of repeated stress cycles over a long duration.
Other failure modes include abrasive wear from contamination or adhesive wear from poor lubrication. Overload can also cause plastic deformation, which renders the screw unusable for precision tasks. A full awareness of these potential issues helps develop effective preventative maintenance schedules.

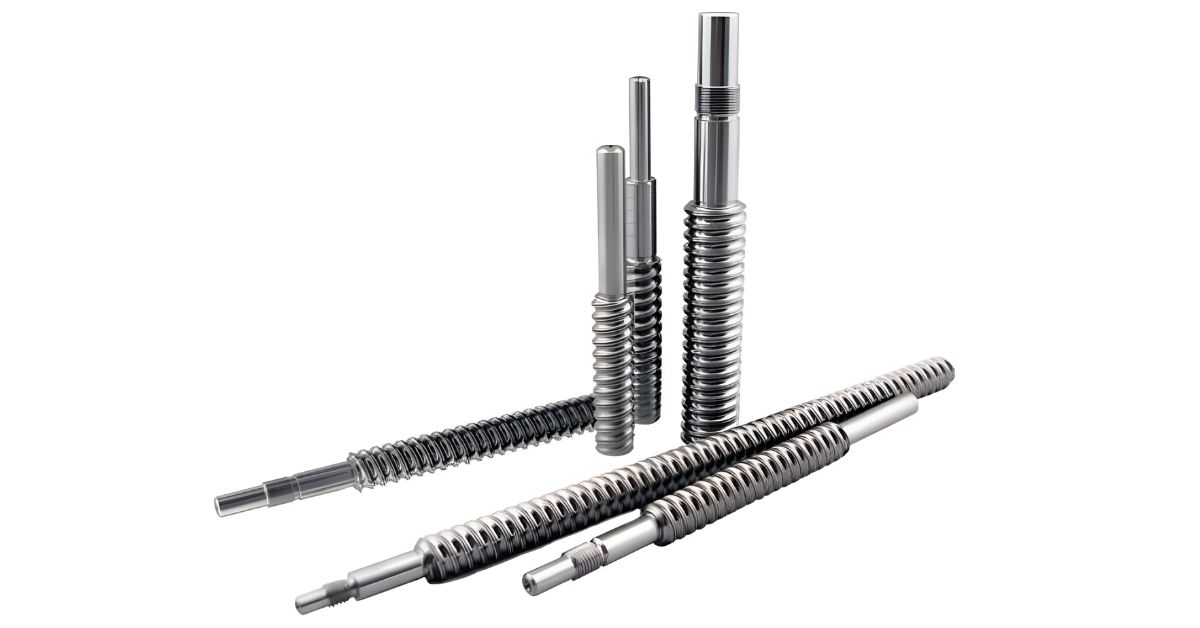

The Precision of Ground vs. Rolled Screws
Ground ball screws offer the highest level of accuracy, manufactured through meticulous processes. The screw threads are ground to exceptionally tight tolerances, which provides superior smoothness and precision. These screws are common in applications that demand the utmost positional accuracy from the system.
Rolled ball screws go through a cold rolling process, which is more cost-effective. While slightly less precise than ground screws, they offer excellent performance for many applications. Modern manufacturing improvements have made rolled screws a popular choice for general industrial machinery.
Adherence to ISO Standards in Manufacturing
Manufacturers that follow ISO 3408 ensure their products meet internationally recognized quality benchmarks. This adherence provides customers with confidence in the product's specifications and its expected performance. It creates a universal language for product comparison and selection across the global marketplace.
Understanding ball screw lifespan and ISO standards compliance is a sensible step because it confirms the manufacturer's commitment to quality and the reliability of their life calculations. This simple check helps you secure a component that will perform reliably.
The lifespan of a ball screw is a predictable outcome based on a combination of design, application, and maintenance factors. The ISO standards provide a robust framework for calculating this lifespan, which empowers engineers to make informed decisions. Considering load, speed, lubrication, and environmental factors allows users to maximize the operational life of these essential components.
Proper installation and an awareness of potential failure modes further contribute to machine reliability and uptime. A deep comprehension of these principles leads to more efficient, dependable, and cost-effective automated systems. This knowledge ensures that machinery performs its function with precision throughout its projected service life.
